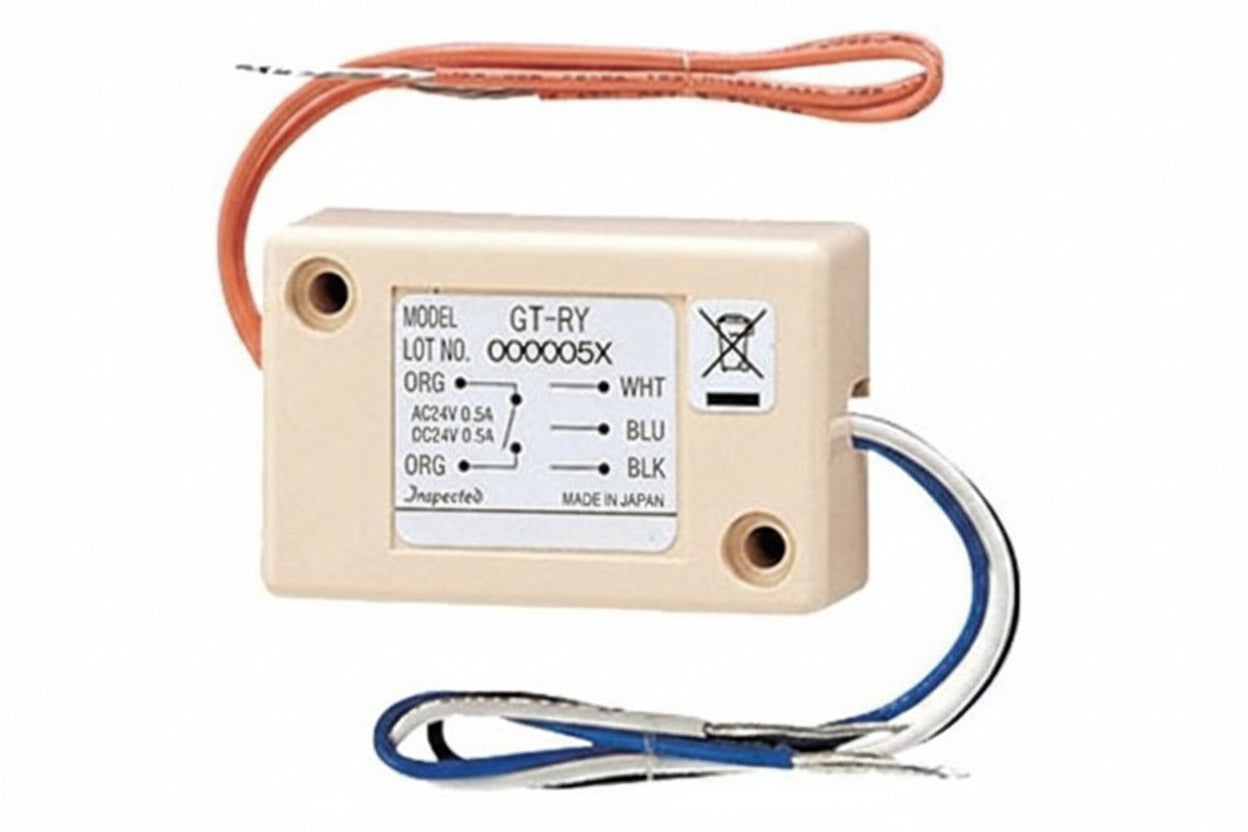

Aiphone GT-RY External Signaling/Option Relay

The Aiphone GT-RY is an external signaling and option relay for Aiphone GT series intercom systems. It adds a normally open dry contact closure when a call comes in at a tenant station, and it can also switch an external light at the entrance station when that station is calling a tenant. Its die-cast zinc housing and small footprint suit installers adding door or lighting signaling to a GT system.

Key features

• Provides a normally open dry contact closure when a call arrives at a tenant station.
• Offers a contact that turns on an external light at the entrance station while it calls a tenant station.
• Works with Aiphone GT stations.
• Housing is made of zinc die cast.
• Listed as NDAA compliant and environmentally friendly.

Specifications

Brand: Aiphone

Model: GT-RY

Product type: Relay

Product series: GT

Compatibility: Aiphone GT Stations

Material: Zinc die cast

Width: 2.20″

Height: 1.40″

Depth: 0.90″

Environmentally friendly: Yes

NDAA compliant: Yes

TAA compliant: No

Country of origin: JP

Installation notes

Because the contact is a dry closure, confirm the voltage and current requirements of whatever you connect to it, such as a light or an external signaling device, and supply that load's power separately. Mount the relay in an accessible spot near the GT station wiring, and test both the tenant call-in signal and the entrance light output before closing up the installation.
