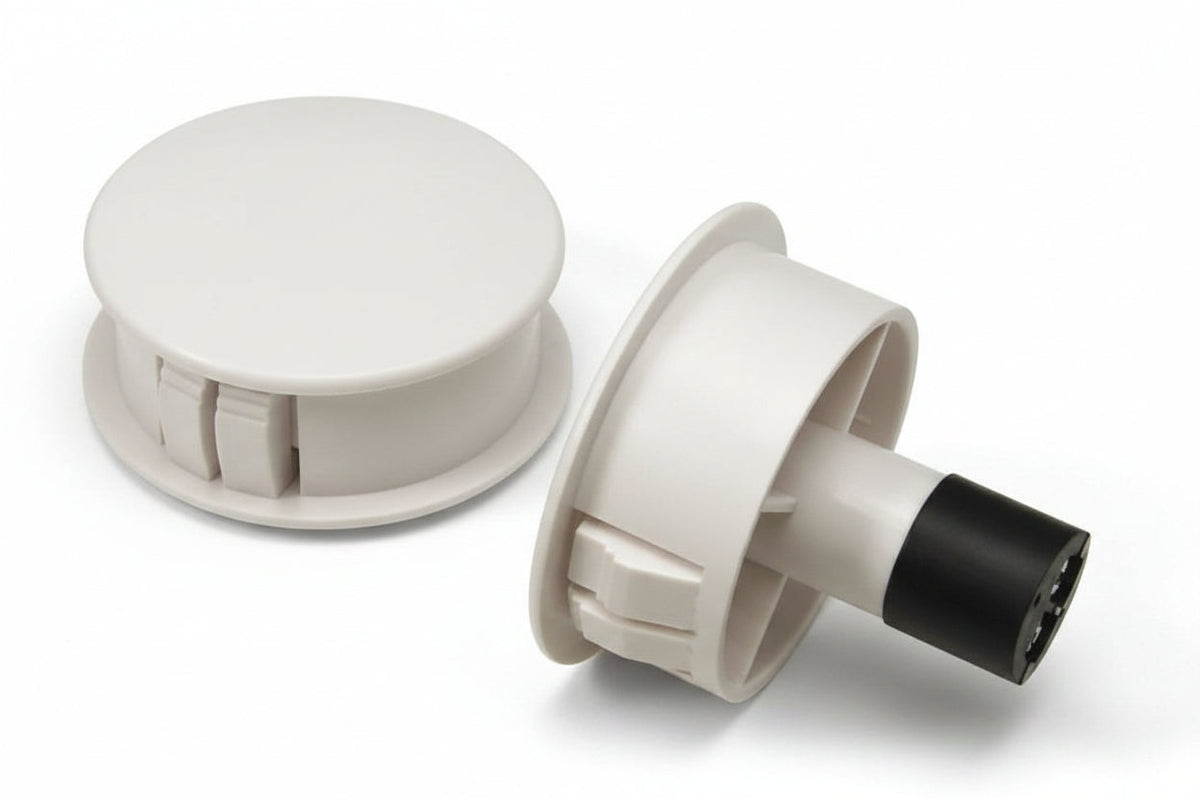

GRI 8080RS-T-W 3/4" Recessed Stubby Steel Door Switch Set with Terminals, 5/8" Gap, 10W, 200VDC, 0.50A, Closed, N/O, A, White

Price: $56.07Model: 8080RS-T-W
In stock — ready to ship Free US shipping on orders $500+ · $443.93 to go
Need a project quote?
GRIShop all GRI →
GRI 8080RS-T-W 3/4" Recessed Stubby Steel Door Switch Set with Terminals, 5/8" Gap, 10W, 200VDC, 0.50A, Closed, N/O, A, White
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the 8080RS-T-W

The GRI 8080RS-T-W is a white recessed magnetic contact switch set built for steel doors. It uses a 3/4″ stubby body with screw terminals, so you can wire it without splicing leads. It suits commercial door-monitoring installs, and it ships as a pack of 10 for larger jobs.

Key features

  • Recessed magnetic contact designed for steel doors.
  • Screw terminals let you connect the wiring directly to the switch.
  • Offered in white, brown, gray or black; this one is white.
  • Made as a closed loop version only.
  • Longer leads, zip cord or jacketed cable, built-in E.O.L. resistors and diodes, and supervisory loops are available upon request.

Specifications

Brand: GRI

Model: 8080RS-T-W

Product Model: 8080RS-T

Vendor Name: George Risk Industries

Product Type: Magnetic Contact

Application/Usage: Door

Installation Type: Commercial

Material: Steel

Color: White

Connectivity Technology: Wired

Contact Form: Form A

Contact Type: NO (Normally Open)

Power Source: DC Power

Input Voltage: 200V DC

Input Current: 500mA

Power Consumption: 10.0000W

Length: 12.00″

Diameter: 0.80″

Gap: 5/8″

Packaged Quantity: 10

Country of Origin: US

Installation notes

Drill the mounting holes cleanly and seat the switch and magnet square in the door and frame so they stay aligned across the gap. Tighten the terminal screws firmly, then test the loop with the door opened and closed before putting the zone into service.

Specifications

BrandGRI
Model8080RS-T-W
Product typeRecessed Door Switch Set

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
