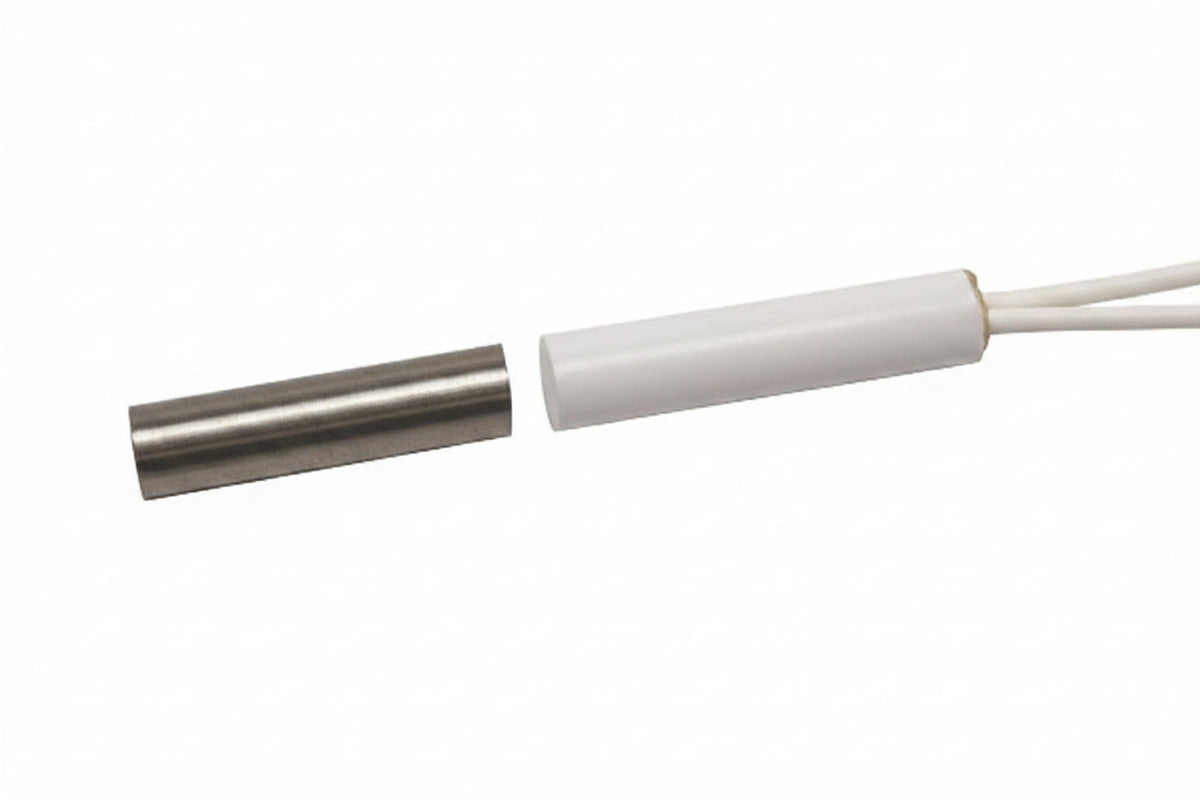

GRI 50RF-12WG-W 1/4-Inch Recessed Flanged Magnetic Switch Set with 3/4-Inch Wide Gap and 12-Inch Leads, White

The GRI 50RF-12WG-W is a ¼″ recessed flanged magnetic contact set in white, with a ¾″ wide gap and a closed loop, normally open contact. It detects a door or window opening in a wired alarm circuit. Its small diameter suits residential jobs where the alarm hardware should stay out of sight.

Key features

• The ¼″ diameter recessed design suits installs where a small switch set is needed.
• It is UL and ULC approved.
• It comes with standard 12″ leads. Longer leads or zip cord are available on request.
• Built-in E.O.L. resistors and diodes are available on request, and supervisory loops are available.
• The series also comes in brown or gray, and in open loop or SPDT versions.
• Switches and magnets can be bought separately.

Specifications

Brand: GRI (George Risk Industries)

Model: 50RF-12WG-W

Product series: 50RF

Product type: Recessed Flanged Magnetic Contact

Color: White

Mount type: Recessed Mount

Connectivity: Wired

Power source: DC Power

Contact type: NO (Normally Open)

Loop: Closed loop

Maximum switching voltage: 200VDC

Maximum switching current: 0.50A

Maximum contact rating: 10W

Leads: 12″, 22AWG

Installation type: Residential

Country of origin: US

Installation notes

Drill a clean, correctly sized hole and seat the flanged switch fully so it sits flush. Mount the magnet directly opposite it and within the gap. Check the loop on the panel with the door or window closed and then open before you close up the work.
