GRI 4473-W 3/4" Switch 3/8" Magnet Recessed Switch Set, Press Fit, 1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and Screw Terminals, White

Price: $48.96Model: KB-4473-W
In stock — ready to ship Free US shipping on orders $500+ · $451.04 to go
Need a project quote?
GRIShop all GRI →
GRI 4473-W 3/4" Switch 3/8" Magnet Recessed Switch Set, Press Fit, 1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and Screw Terminals, White
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the KB-4473-W

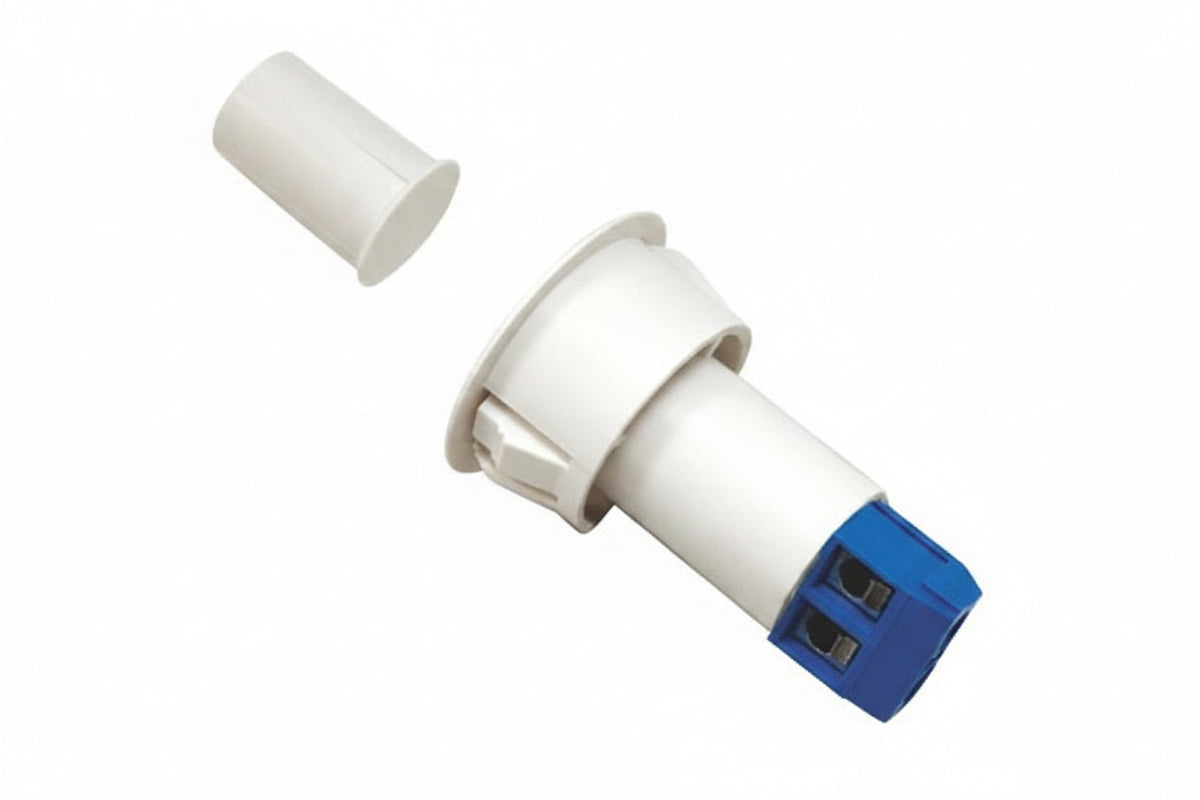

The GRI 4473-W is a white, wired recessed magnetic contact switch set for doors and windows, built for installers and homeowners who want a concealed sensor. It pairs a 3/4″ press-fit switch with a 3/8″ rare earth magnet from GRI's Mighty Mag Series, which is under 1/8″ high and meant for the thinner vinyl windows where drilling can cause damage. The closed-loop, normally open design and hermetically sealed construction make it a straightforward choice for wired alarm circuits.

Key features

  • The Mighty Mag Series magnet is less than 1/8″ high, so it installs quickly without risking damage to thin vinyl windows.
  • A rare earth alloy lets GRI shrink the magnet while keeping or improving the gap.
  • Paired with GRI's 3/8″ press-to-fit contacts, the series offers a standard gap of 3/4″+ and 1″+ on wide gaps.
  • The switch is hermetically sealed, and its plated contacts resist sticking or freezing.
  • The recessed 3/4″ switch press-fits into place and uses a closed loop.
  • Connection is by 12″ #22AWG leads or screw terminals.

Specifications

Brand: GRI (George Risk Industries)

Model: 4473-W

Product series: 4473

Product type: Magnetic Contact

Color: White

Mount type: Recessed Mount

Switch size: 3/4″

Magnet size: 3/8″

Installation style: Press fit

Standard gap: 0.50″

Contact type: NO (Normally Open)

Loop: Closed loop

Connectivity: Wired

Terminations: Screw terminals

Power source: DC Power

Power rating: 10W

Voltage: 200VDC

Current: 0.50A

Installation type: Hybrid (DIY + Professional)

Country of origin: US

Installation notes

Drill clean, correctly sized holes for the switch and magnet so each press-fits snugly, and keep the two aligned across the gap. After wiring, test the circuit with the door or window open and closed before sealing up the frame.

Specifications

BrandGRI
ModelKB-4473-W
Product typeRecessed Press-Fit Switch Set

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
