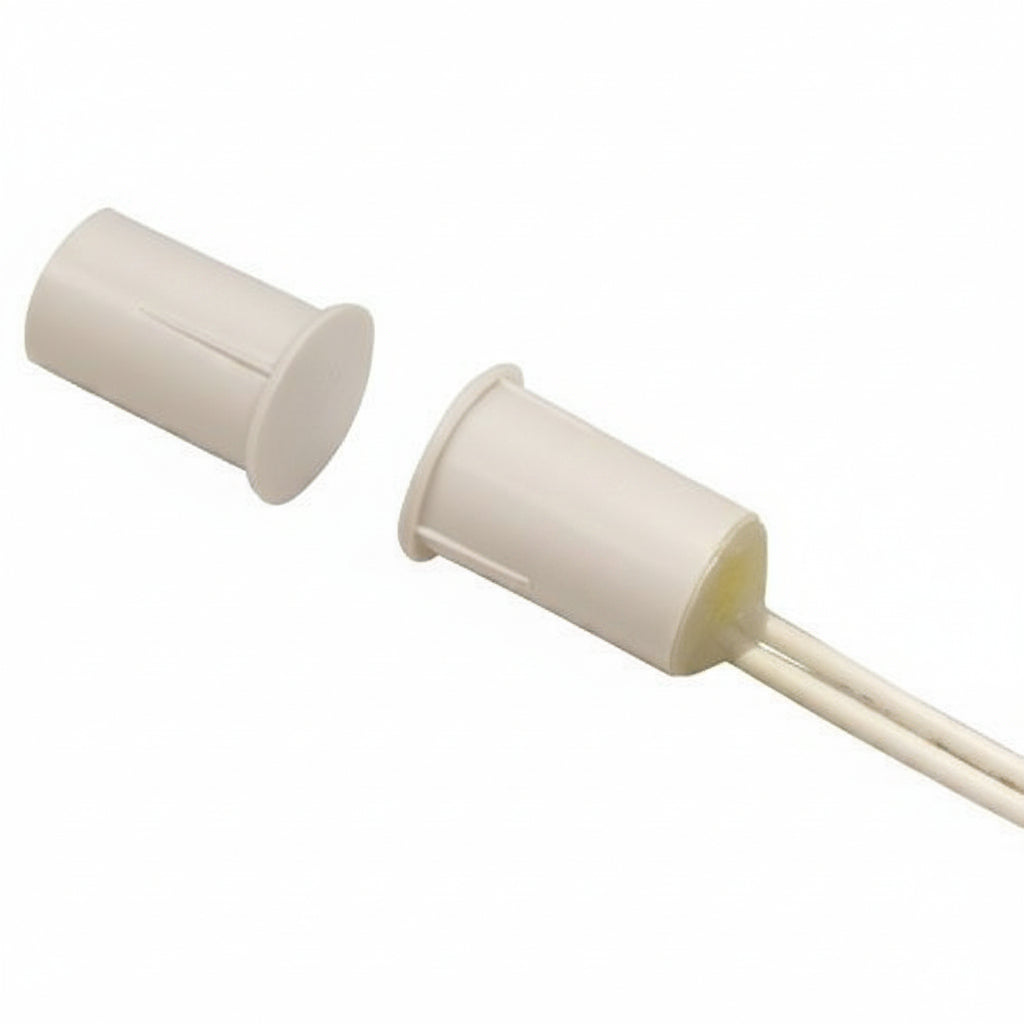

GRI 20RS-12XWG-W 20RS Series 3/8" Short Press Fit Recessed Switch Set, 1" Extra Wide Gap, 10W, 200VDC, 0.50 Amp, Closed, N/O, A, White

Price: $54.61Model: 20RS-12XWG-W
In stock — ready to ship Free US shipping on orders $500+ · $445.39 to go
Need a project quote?
GRIShop all GRI →
GRI 20RS-12XWG-W 20RS Series 3/8" Short Press Fit Recessed Switch Set, 1" Extra Wide Gap, 10W, 200VDC, 0.50 Amp, Closed, N/O, A, White
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the 20RS-12XWG-W

The GRI 20RS-12XWG-W is a recessed magnetic contact switch set from the 20RS Series, built to monitor a door in a wired security system. The "shortie" body is only 0.63″ long, which suits openings where a full-length 3/8″ press-fit set won't fit, such as thin-framed doors and windows. It has an extra wide 1.00″ gap and a white finish.

Key features

  • The 3/8″ diameter body presses into a drilled hole, so no mounting hardware is needed.
  • The short, recessed design suits thin-framed doors and windows where space is tight.
  • The switch is hermetically sealed, and its plated contacts resist sticking or freezing.
  • It is UL and ULC approved.
  • Standard leads are 12″, or you can choose a terminal block. Longer leads, zip cord or jacketed cable are available on request.
  • Built-in resistors and diodes are available on request, and switches or magnets can be bought separately.

Specifications

Brand: GRI (George Risk Industries)

Model: 20RS-12XWG-W

Series: 20RS

Product type: Magnetic Contact

Application: Door

Installation type: Residential

Mount type: Recessed Mount

Connectivity: Wired

Contact form: Form A

Contact type: NO (Normally Open)

Rating: 10W, 200VDC, 0.50 Amp

Power source: DC Power

Standard gap: 1.00″

Diameter: 0.40″

Length: 0.63″

Material: Steel

Color: White

Country of origin: US

Installation notes

Drill a clean hole for the press-fit switch and seat it fully, then align the magnet across the gap so the contact changes state reliably when the door moves. Connect the leads to the alarm zone and test the loop with the door open and closed before closing up the frame.

Specifications

BrandGRI
Model20RS-12XWG-W
Product typeNetwork Switch

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
