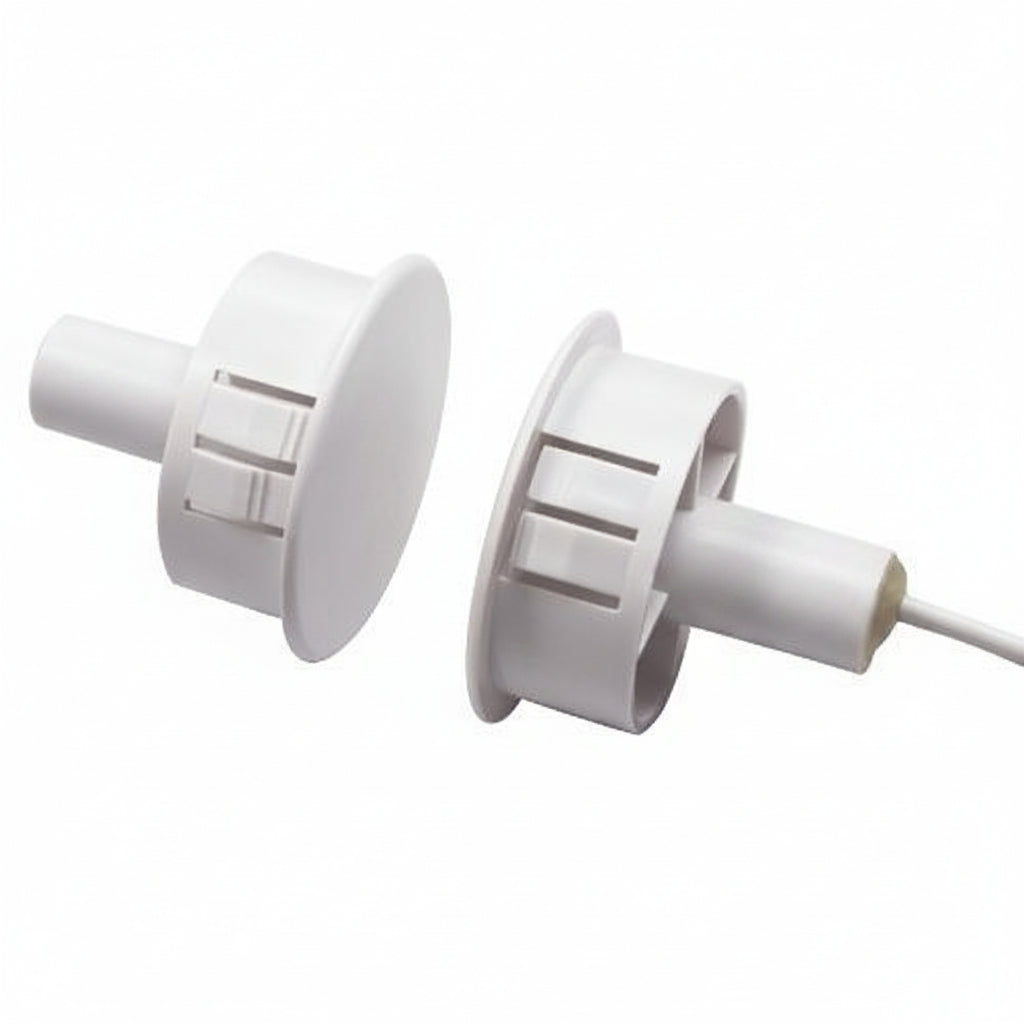

GRI 199-12-B 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Brown

Price: $67.12Model: 199-12-B
In stock — ready to ship Free US shipping on orders $500+ · $432.88 to go
Need a project quote?
GRIShop all GRI →
GRI 199-12-B 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Brown
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the 199-12-B

The GRI 199-12-B is a recessed magnetic contact switch set for steel doors, built for commercial wired alarm and access installations. It is a 1″ diameter, brown, DPDT (Form C) set with 12″ leads and a 0.50″ standard gap, suited to installers who need a concealed contact on steel doors. The one-piece, self-locking design and UL approval make it a dependable fit for professional installs.

Key features

  • Solid, one-piece construction keeps the switch simple to handle and install.
  • The self-locking design holds the switch in place once it is seated.
  • It carries UL and ULC approval.
  • The series is offered in closed loop, open loop and SPDT versions, and in white, brown, grey or black.
  • Mounting is available in 3/4″ and 1″ diameters, with standard 12″ leads or terminals.
  • The series is backed by a lifetime coverage program from the manufacturer.

Specifications

Brand: GRI (George Risk Industries)

Model: 199-12-B

Product type: Magnetic Contact

Quantity: Set of 2 (per title)

Application: Door

Material: Steel

Mount type: Recessed Mount

Color: Brown

Diameter: 1.00″

Length: 12.00″

Standard gap: 0.50″

Contact type: DPDT (Double Pole Double Throw)

Contact form: Form C

Power rating: 5W

Voltage: 175VDC

Current: 0.25 Amp

Power source: DC Power

Connectivity: Wired

Feature: End of Line (EOL) Resistor

Certifications: UL

Installation type: Commercial

Country of origin: US

Installation notes

Drill the recess to match the 1″ diameter and seat the switch and magnet so they align across the gap on the steel door. Test the loop after wiring, with the door open and closed, before you close up the frame.

Specifications

BrandGRI
Model199-12-B
Product typeRecessed Door Switch Set

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
