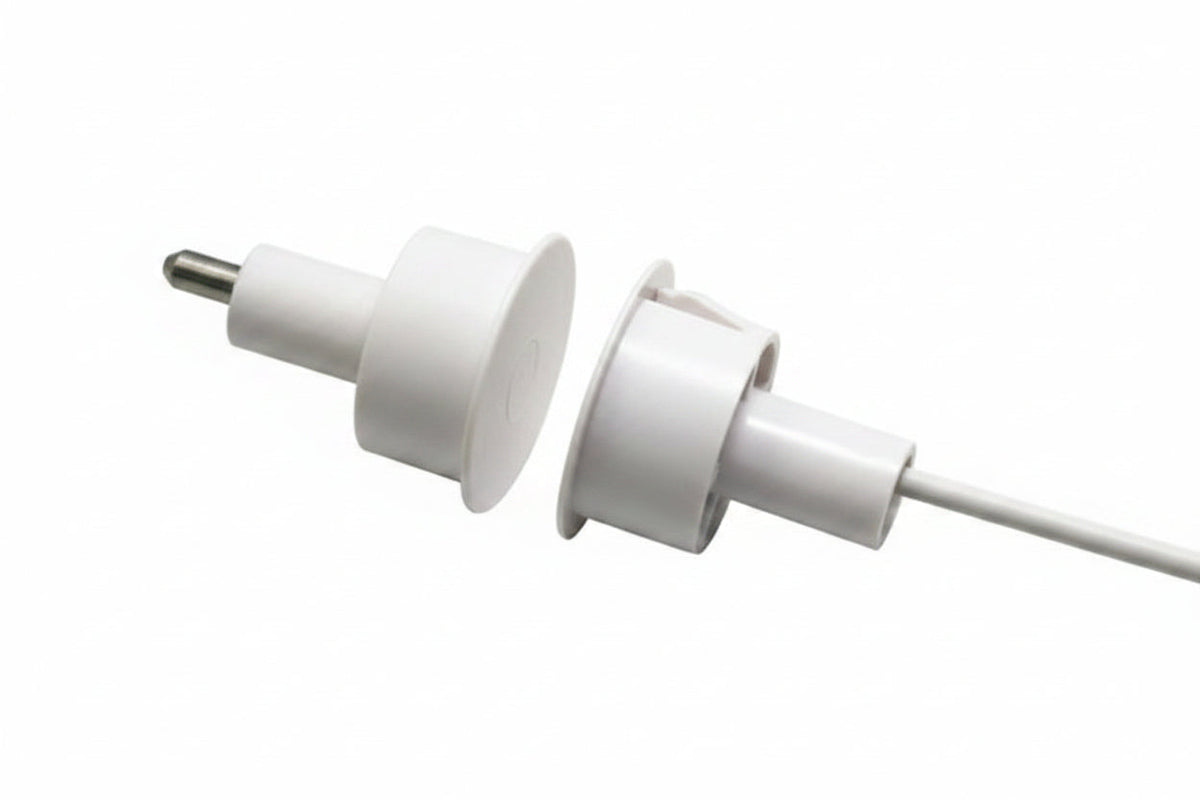

GRI 190-12-W 3/4" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, Open/Closed SPDT, C, White

Price: $55.73Model: KB-190-12-W
In stock — ready to ship Free US shipping on orders $500+ · $444.27 to go
Need a project quote?
GRIShop all GRI →
GRI 190-12-W 3/4" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, Open/Closed SPDT, C, White
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the KB-190-12-W

The GRI 190-12-W is a 3/4″ recessed steel door switch set that uses a magnetic contact to report whether a door is open or closed. It suits commercial installers who want a wired, concealed contact for steel doors. Its solid one-piece, self-locking body and SPDT Form C output make it a straightforward choice for alarm and access-control wiring.

Key features

  • Recessed mounting keeps the switch out of sight in a 3/4″ diameter hole.
  • The one-piece, self-locking body is solid and holds firmly once installed.
  • It is UL and ULC approved.
  • The SPDT contact gives you both normally open and normally closed connections.
  • Standard 12″ leads are included on this version.
  • The same family also comes in other colors, closed loop and open loop versions, and 1″ mounting.

Specifications

Brand: GRI (George Risk Industries)

Model: 190-12-W

Product type: Magnetic Contact

Application: Door

Mount type: Recessed Mount

Material: Steel

Color: White

Contact type: SPDT (Single Pole Double Throw)

Contact form: Form C

Standard gap: 0.50″

Power rating: 5W, 175VDC, 0.25 Amp

Power source: DC Power

Connectivity: Wired

Diameter: 0.80″

Length: 12.00″

Feature: End of Line (EOL) Resistor

Installation type: Commercial

Country of origin: US

Installation notes

Drill a clean hole to suit the 3/4″ switch, seat the switch fully, and keep the magnet aligned within the standard gap so the contact changes state reliably. Test the open and closed states at the panel before closing up the door and frame.

Specifications

BrandGRI
ModelKB-190-12-W
Product typeRecessed Door Switch

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
