Alarm & Detection · GRI

Know the moment.

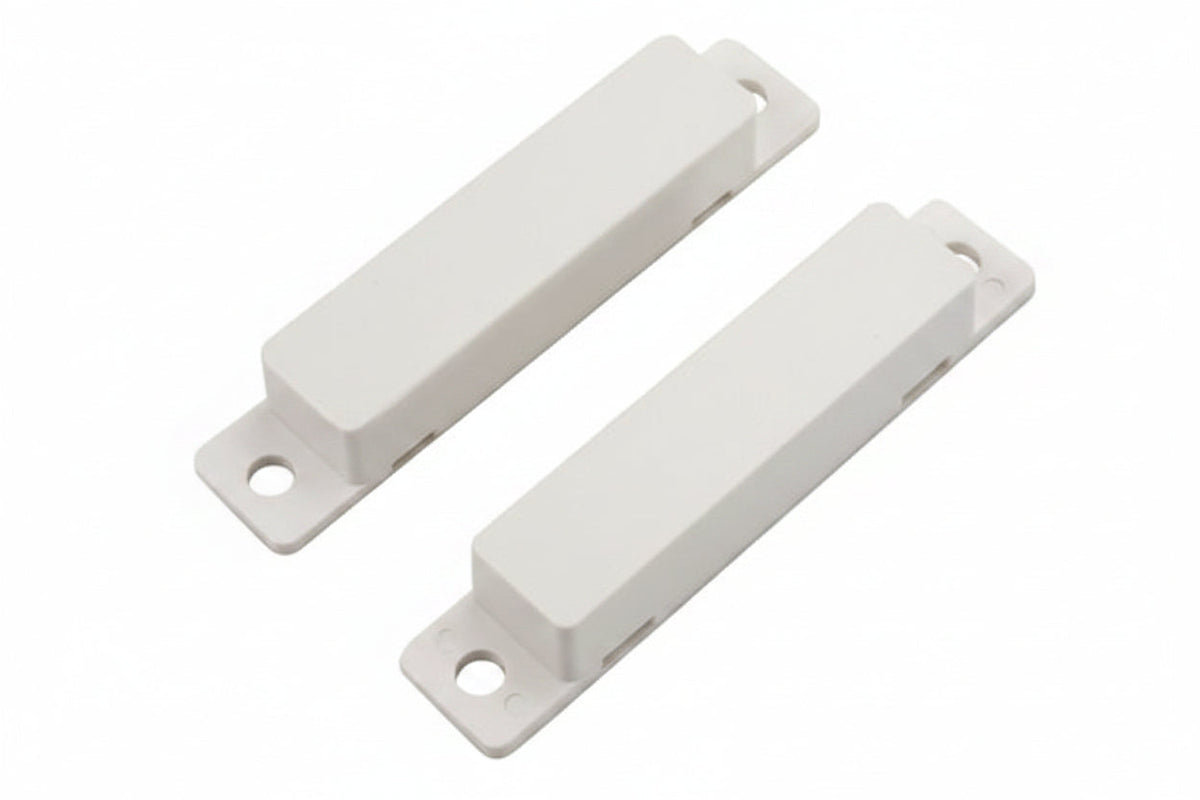

GRI 100-TWG Miniature Surface Mount Switch Set, Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and 3M Adhesive Tape, White

Price: $49.81Model: 100-TWG
In stock — ready to ship Free US shipping on orders $500+ · $450.19 to go
Need a project quote?
GRIShop all GRI →
GRI 100-TWG Miniature Surface Mount Switch Set, Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and 3M Adhesive Tape, White
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the 100-TWG

The GRI 100-TWG (model 100-TWG-W) is a white, wired surface mount magnetic contact that watches a door or window and reports when it opens. It is a normally open, closed loop switch, hermetically sealed, with plated contacts that resist sticking or freezing. The Hybrid (DIY + Professional) installation type, screw-down flange or self-stick mounting, and a choice of leads or screw terminals make it a practical fit for both homeowners and installers.

Key features

  • Longer leads, or zip cord or jacketed cable, are available upon request.
  • Built-in E.O.L. resistors and diodes can be added upon request.
  • Switches and magnets are available separately.
  • The hermetic seal and plated contacts help the switch resist sticking or freezing.
  • Mounts with a screw-down flange or self-stick, with 12″ #22 AWG leads or screw terminals.

Specifications

Brand: GRI

Model: 100-TWG-W

Product Model: 100-TWG

Product Series: 100

Product Type: Magnetic Contact

Color: White

Mount Type: Surface Mount

Contact Type: NO (Normally Open)

Loop: Closed loop

Power: 10W

Voltage: 160VDC

Current: 0.40A

Gap: Wide gap

Connectivity Technology: Wired

Power Source: DC Power

Leads: 12″ #22 AWG leads or screw terminals

Installation Type: Hybrid (DIY + Professional)

Features: Hermetically sealed

Packaged Quantity: 10

Package Contents: 100-TWG Magnetic Contact, covers, mounting hardware

Country of Origin: US

Vendor Name: George Risk Industries

Installation notes

Mount the switch on the fixed frame and the magnet on the moving door or window, keeping them aligned across the gap. Test the loop with the door or window open and closed before finishing the wiring run, and keep the switch rating in mind when connecting it to the panel.

Specifications

BrandGRI
Model100-TWG
Product typeMiniature Surface Mount Switch

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.

In the box

    Shipping & returns

    Shipping (US)

    • Free standard shipping on orders of $500 or more
    • Standard shipping $8.00 on orders under $500
    • Express shipping $15.00

    Returns

    • 30 days from delivery to request a return
    • Item must be unused, in its original packaging with all parts
    • Contact us first for a return authorization
    Full return policy →
