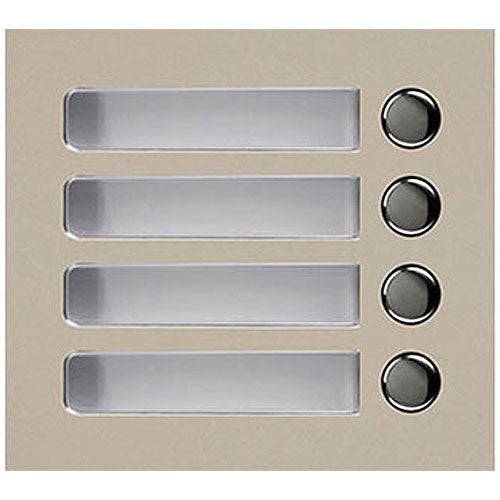

Aiphone GF-4P 4-Call Button Panel for GT-SW

The Aiphone GF-4P (model GF4P) is a 4-call button front panel for the GT-SW series, built to give visitors a way to call up to four destinations from the entrance. It suits installers and property owners adding or replacing the entrance panel on a compatible Aiphone system. The panel is made from vandal-proof zinc alloy diecast, and the call tone can be cut out with a switch.

Key features

• The full module panel is made of vandal-proof zinc alloy diecast.
• Multiple bus lines run from the junction point to room stations (up to 5) or entrance stations (up to 3).
• Each setup supports one or two room stations.
• An optional doorbell button can sound a different tone from the entrance, on one inside station only.
• The room station can release the door and control the light.
• The system can be set up without extra tools.

Specifications

Brand: Aiphone

Model: GF-4P

Product Series: GT

Product Type: Entrance Panel Component

Form Factor: Panel

Number of Buttons: 4

Material: Zinc die cast

Compatibility: Entry Security System: GF-SW Series, GH-SW Series

Max Distance, Junction to Farthest Room Station: 98′ (3 m) per bus line

TAA Compliant: No

Country of Origin: TH

Installation notes

Plan each bus line so the run from the junction point to the farthest room station stays within the 98′ (3 m) limit. Confirm the panel matches your system series before mounting, and test the call buttons, door release and light control from the room station once everything is connected.
