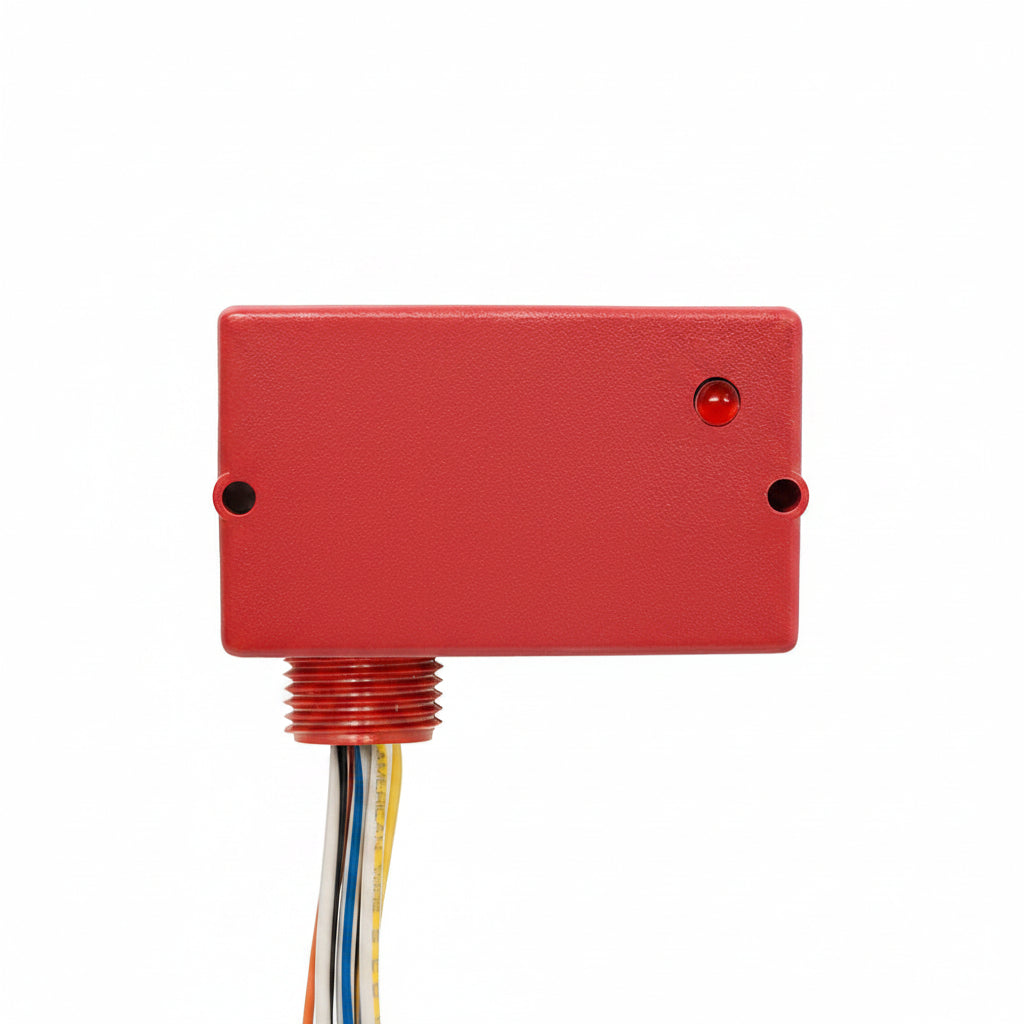

Functional Devices RIBU1C-RD Enclosed Pilot Relay 10A SPDT with 10-30V AC/DC/120V AC Coil, Red Housing

The Functional Devices RIBU1C-RD is an enclosed pilot relay with a 10A SPDT contact, built for control panel work in fire and energy management systems. Its low-current coil accepts a wide range of AC and DC voltages, which suits installers who want one relay for several control circuits. It is made in the US and carries UL listings for both UL916 and UL864.

Key features

• The coil draws low current and accepts a wide range of AC and DC voltages.
• The relay is UL listed for UL916 Energy Management and UL864 Fire.
• Color-coded wires help prevent wiring errors.
• The 10A SPDT contact provides one changeover output.
• A 10-30V AC/DC or 120V AC coil lets you match the control voltage on the job.
• Rated for at least 10 million mechanical cycles, with a 20ms operate time.

Specifications

Brand: Functional Devices

Model: RIBU1C-RD

Product Type: Relay

Application/Usage: Control Panel

Sector: Fire

Contact Type: SPDT (Single Pole Double Throw)

Maximum Input Current: 10.00A

Coil Voltage: 10-30V AC/DC or 120V AC

Operate Time: 20ms

Expected Relay Life: 10 million cycles minimum mechanical

Operating Temperature: -30 to 140° F

Mount Type: Screw Mount

Form Factor: Screw Mount

Color: Red

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Installation notes

Secure the relay with screws inside the control panel, and confirm the coil voltage you are feeding matches the 10-30V AC/DC or 120V AC option before powering up. Follow the color-coded wire leads when landing connections, and test the relay's operation during commissioning.
