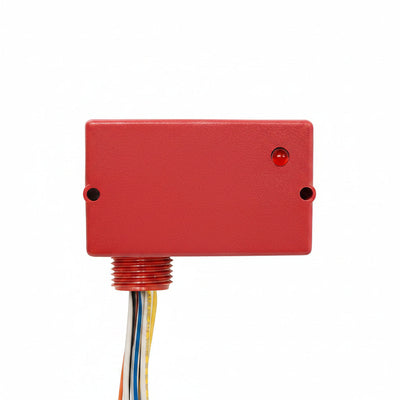

Functional Devices RIBU1C Enclosed Pilot Relay 10A SPDT

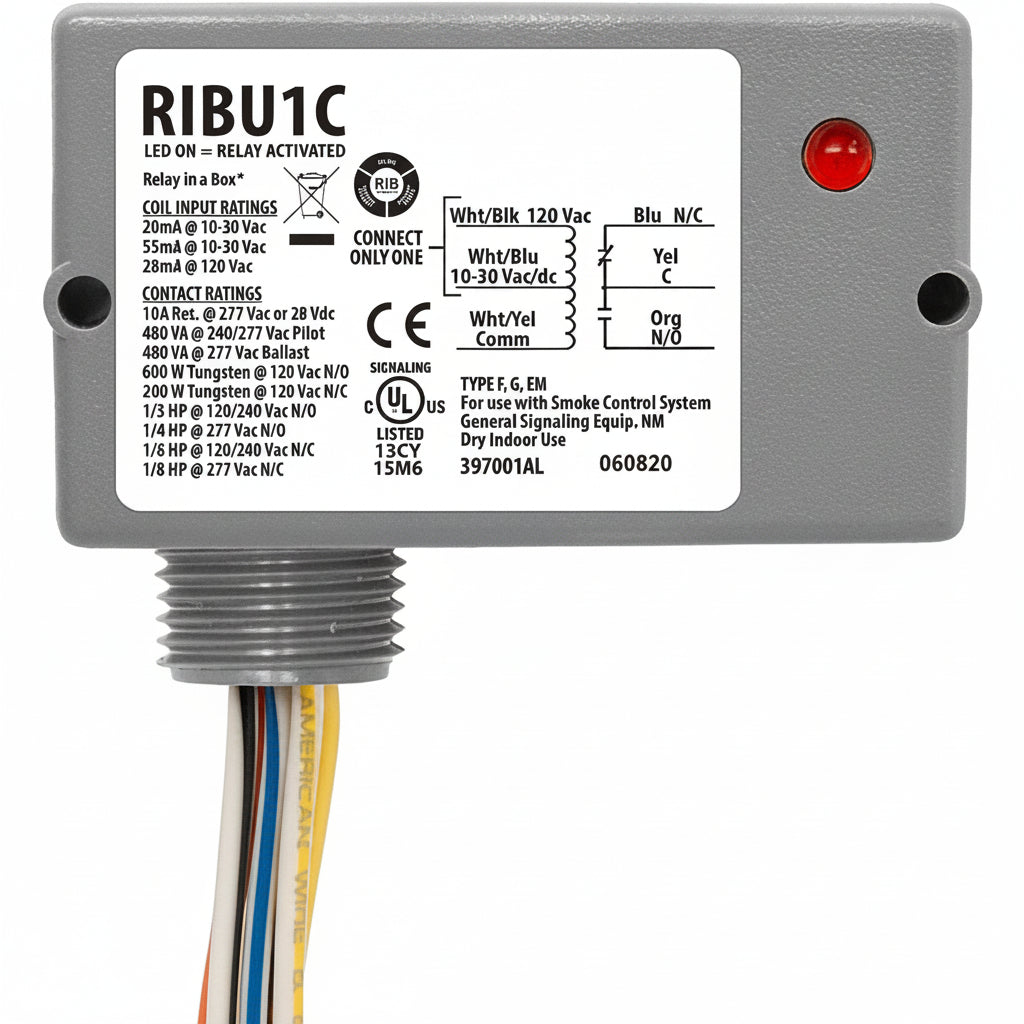

The Functional Devices RIBU1C is an enclosed 10 amp SPDT pilot relay with a coil that accepts 10-30VAC/DC or 120VAC. It switches loads from a control signal in alarm control systems and suits installers who need a compact, plenum-accepted relay housing with an LED to show when the relay is active. The NEMA 1 enclosure comes with wire leads and a .50″ NPT nipple for conduit mounting.

Key features

• One SPDT contact set is driven by a continuous duty coil.
• The relay is rated for at least 10 million mechanical cycles.
• An LED lights when the relay is activated, so status is visible at a glance.
• The housing is NEMA 1 and UL accepted for use in plenum.
• It carries UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE and RoHS approvals.
• It operates from -30 to 140°F at 5 to 95% noncondensing humidity.

Specifications

Brand: Functional Devices

Model: RIBU1C

Product type: Enclosed pilot relay

Contact type: SPDT (Single Pole Double Throw)

Contact rating: 10A

Coil: 10-30VAC/DC or 120VAC

Application: Alarm control system

Mount type: Screw mount

Dimensions: 1.70″ H x 2.80″ W x 1.50″ D, with .50″ NPT nipple

Wires: 16 AWG, 600V rated

Operating temperature: -30 to 140°F

Humidity range: 5 to 95% (noncondensing)

Expected relay life: 10 million cycles minimum mechanical

Indicator: LED

Housing rating: NEMA 1, UL accepted for use in plenum

Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS

Country of origin: US

Installation notes

Screw-mount the relay in the intended location and bring conduit in through the .50″ NPT nipple. Confirm the coil voltage you are applying matches the supply type before powering up, then check that the LED lights when the relay is activated.
