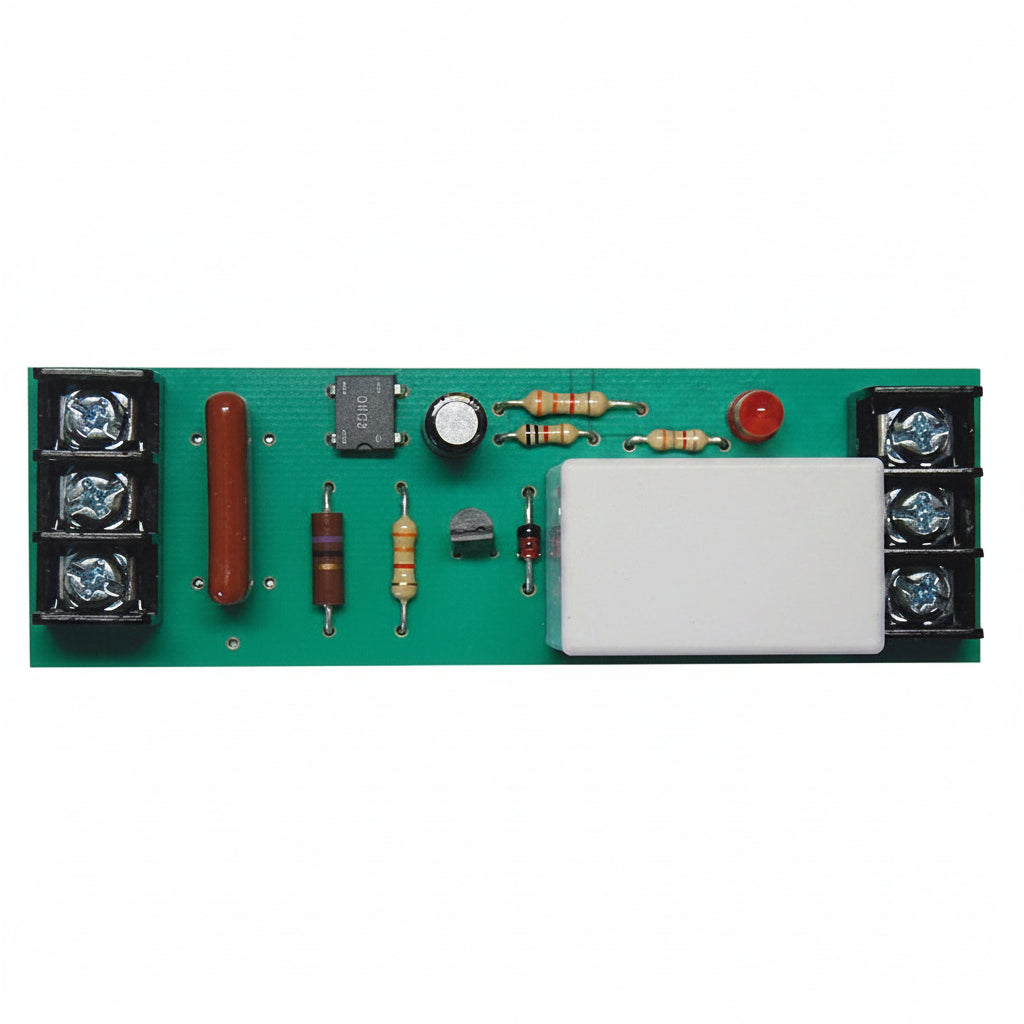

Functional Devices RIBMU1C 4.00" Track Mount Pilot Relay 15A SPDT with 10-30V AC/DC/120V AC Coil

The Functional Devices RIBMU1C is a 4.00″ track mount pilot relay with a 15A SPDT contact. Its coil draws low current and accepts 10-30V AC/DC or 120V AC, so one relay covers several control voltages. It suits installers and facility staff who need a pilot-duty relay with an LED status indicator, and it is made in the US.

Key features

• The coil uses low current.
• One coil accepts a wide range of AC and DC voltages, including 10-30V AC/DC and 120V AC.
• An LED shows the relay status at a glance.
• A Closed/Open/Auto switch option is available.
• The SPDT contact gives you both normally open and normally closed switching.
• It is RoHS certified and has gold flash contacts.

Specifications

Brand: Functional Devices

Model: RIBMU1C

Product Type: Relay

Application/Usage: Pilot

Contact Type: SPDT (Single Pole Double Throw)

Motor: 1/3 HP

Ballast: 480 VA

Tungsten: 600 W

Pilot Duty: 480 VA

Gold Flash: Yes

Form Factor: Panel Mount

Mount Type: Panel Mount

Width: 4.00″

Height: 1.80″

Depth: 1.30″

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Installation notes

Confirm the control voltage matches one of the supported coil ranges before you wire it, and keep the load within the listed ratings. Mount the relay in the panel where the status LED and the switch option, if fitted, are easy to see during commissioning.
