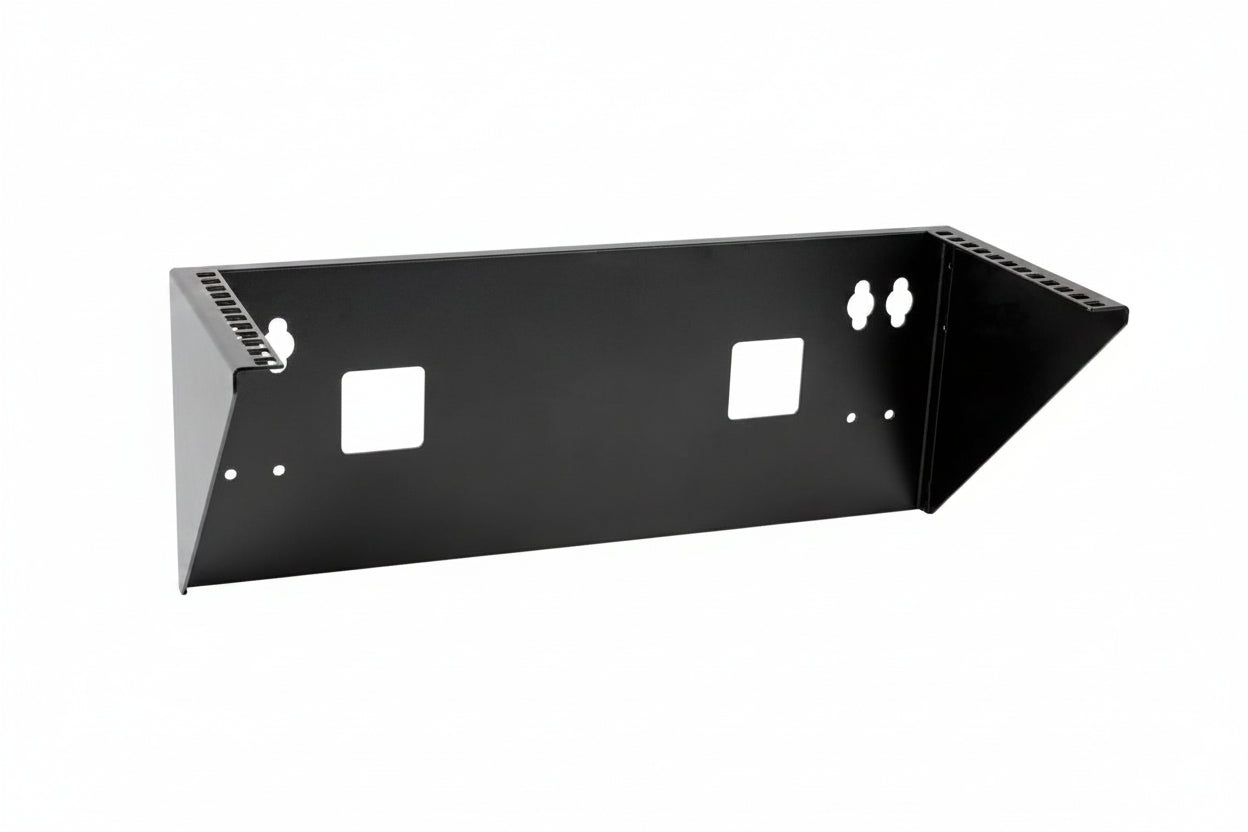

Eaton Tripp Lite SRWALLBRKT4U SmartRack Vertical Wall Mount Rack Bracket, 175lb (79.4 kg), 2-Post, 4U

The Eaton SRWALLBRKT4U SmartRack 4U Vertical Wall-Mount Rack Bracket holds 2-post, EIA-standard 19 in. equipment flat against the wall. It suits home offices and small businesses that have rack-mount gear, such as a network switch, but no room for a standard 19-inch wall-mount rack. It ships fully assembled, and its wall holes are spaced for 16 in. studs.

Key features

• Mounts 4U of equipment vertically on the wall to save space.
• Carries up to 175 lb (79.4 kg).
• Made of cold-rolled steel with a black powder-coated finish.
• Fits EIA-standard 19 in. 2-post rack equipment.
• Can also be mounted horizontally under a desk or workbench.
• Leaves equipment and cabling open for easy access.

Specifications

Brand: Eaton

Model: SRWALLBRKT4U

Product Line: SmartRack

Product Type: Mounting Bracket

Device Supported: Network Switch

Rack Height: 4U

Maximum Load Capacity: 175.00 lb

Color: Black

Width: 19.70″

Height: 7.70″

Depth: 7.70″

Weight: 5.29 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Packaged Quantity: 1

Package Contents: SRWALLBRKT4U bracket, (12) M6 screws, (12) M6 cup washers, (12) M6 cage nuts, installation guide

Installation notes

Locate the wall studs and line the mounting holes up with them so the bracket is anchored to solid framing. Plan cable routing before loading the bracket, since the open design leaves cabling exposed, and keep the heaviest equipment as low as practical.
