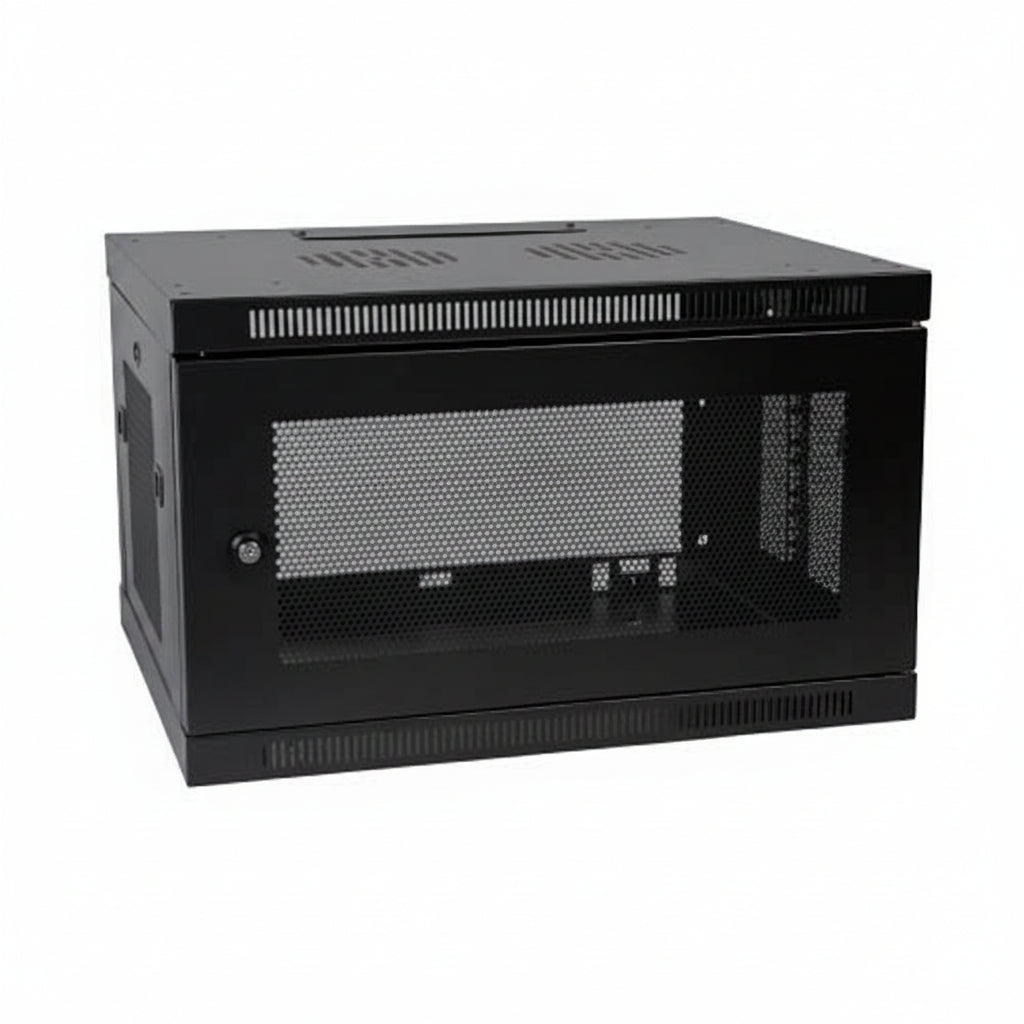

Eaton Tripp Lite SRW6UDP SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure

The Eaton Tripp Lite SRW6UDP SmartRack is a 6U wall-mount rack enclosure that holds EIA-standard 19-inch equipment in a locking steel cabinet. It suits network wiring closets, retail locations, classrooms, back offices and other tight spaces where a full-size rack won't fit. It ships fully assembled, carries up to 200 lb, and has vented panels for airflow.

Key features

• Holds 6U of EIA-standard 19-inch rack equipment with a 200 lb (90.7 kg) maximum load.
• Locking side panels and a locking front door help keep the gear secure.
• The front door is reversible, so you can choose which way it opens.
• Vented panels promote airflow, and cable routing ports keep wiring organized.
• Adjustable vertical mounting rails let you set up the equipment layout.
• Can be mounted on a wall or on the floor, and arrives assembled.

Specifications

Brand: Eaton

Model: SRW6UDP

Product Line: SmartRack

Product Type: Rack Cabinet

Application/Usage: Server

Form Factor: Wall Mount

Mount Type: Wall Mount

Rack Height: 6U

Rack Width: 19.0″

Rack Depth: 20.5″

Width: 23.60″

Height: 14.60″

Depth: 21.70″

Maximum Weight Capacity: 200.00 lb

Material: Steel

Color: Black

Assembly Required: No

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Installation notes

Choose the mounting location and door swing before you hang the enclosure, and make sure the wall or floor surface can support the cabinet plus the equipment you plan to load. Leave clearance around the vented panels, and use the cable routing ports to keep cabling tidy as you install.
