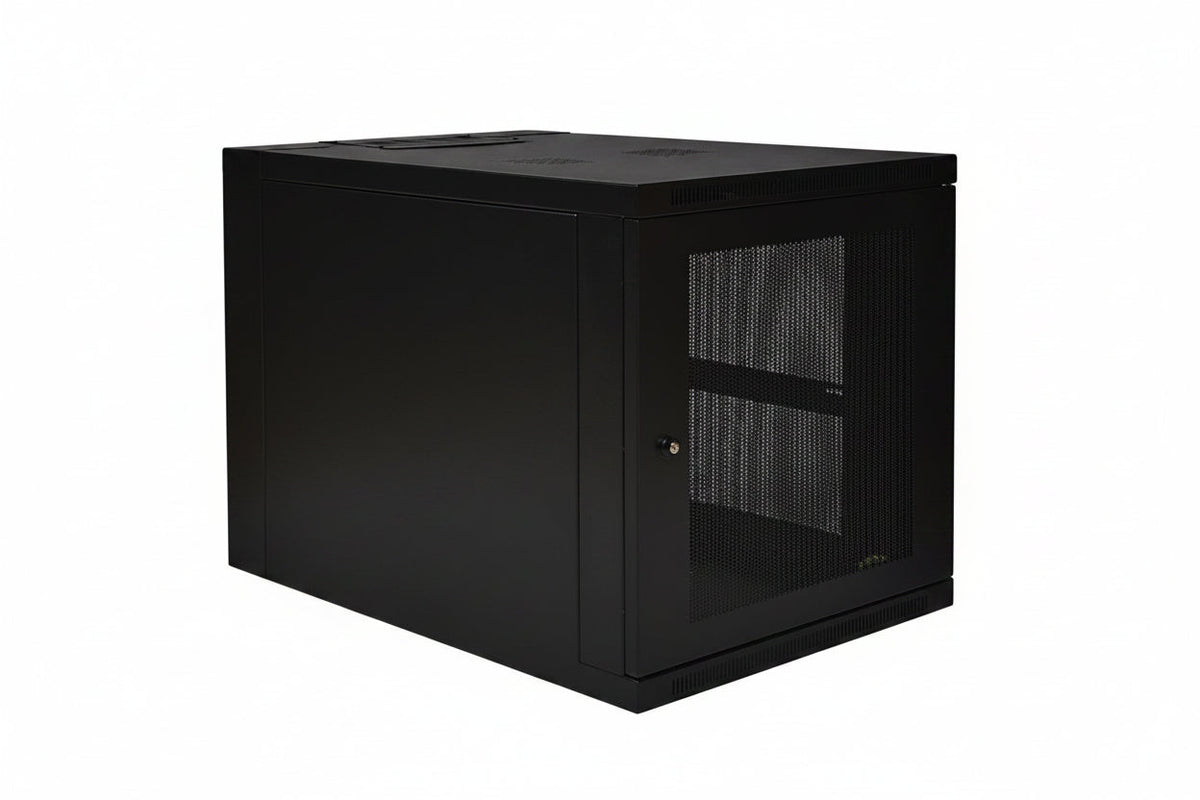

Eaton Tripp Lite SRW12US33 SmartRack Server-Depth Wall Mount Small Rack Enclosure with Hinged Back, 32.5" (83cm), 250lb (113.4kg), 12U

The Eaton Tripp Lite SRW12US33 is a 12U server-depth wall-mount rack enclosure from the SmartRack line. It holds EIA-standard 19-inch equipment in network wiring closets, retail locations, classrooms, back offices and other spots with limited floor space. It ships fully assembled, has a hinged back for access, and offers adjustable rails for gear up to 32.5 in. deep.

Key features

• The hinged back gives you easier access to the equipment and cabling inside.
• It supports up to 250 lb (113.4 kg) of equipment.
• Locks help guard against tampering, and the cabinet meets PCI DSS Compliance standards.
• Vented panels promote airflow around the installed gear.
• Adjustable rails accommodate equipment up to 32.5 in. deep, including 1U servers and network switches.
• It arrives fully assembled, which speeds up setup.

Specifications

Brand: Eaton

Model: SRW12US33

Product Line: SmartRack

Product Type: Rack Cabinet

Form Factor: Wall Mount

Mount Type: Wall Mount

Rack Height: 12U

Rack Width: 19.0″

Height: 25.00″

Width: 23.60″

Depth: 33.50″

Weight Capacity: 250 lb (113.4 kg)

Color: Black

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: SRW12US33 SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet; (36) M6 screws; (36) M6 cage nuts; (36) M6 washers; (36) 12-24 screws; (2) Keys; Owner's manual

Installation notes

Choose a wall location and fasteners rated for the combined weight of the enclosure and its equipment, and confirm the mounting surface can carry that load. Leave room in front of the cabinet and behind the hinged back so the doors can open fully, and keep the vented panels clear for airflow.
