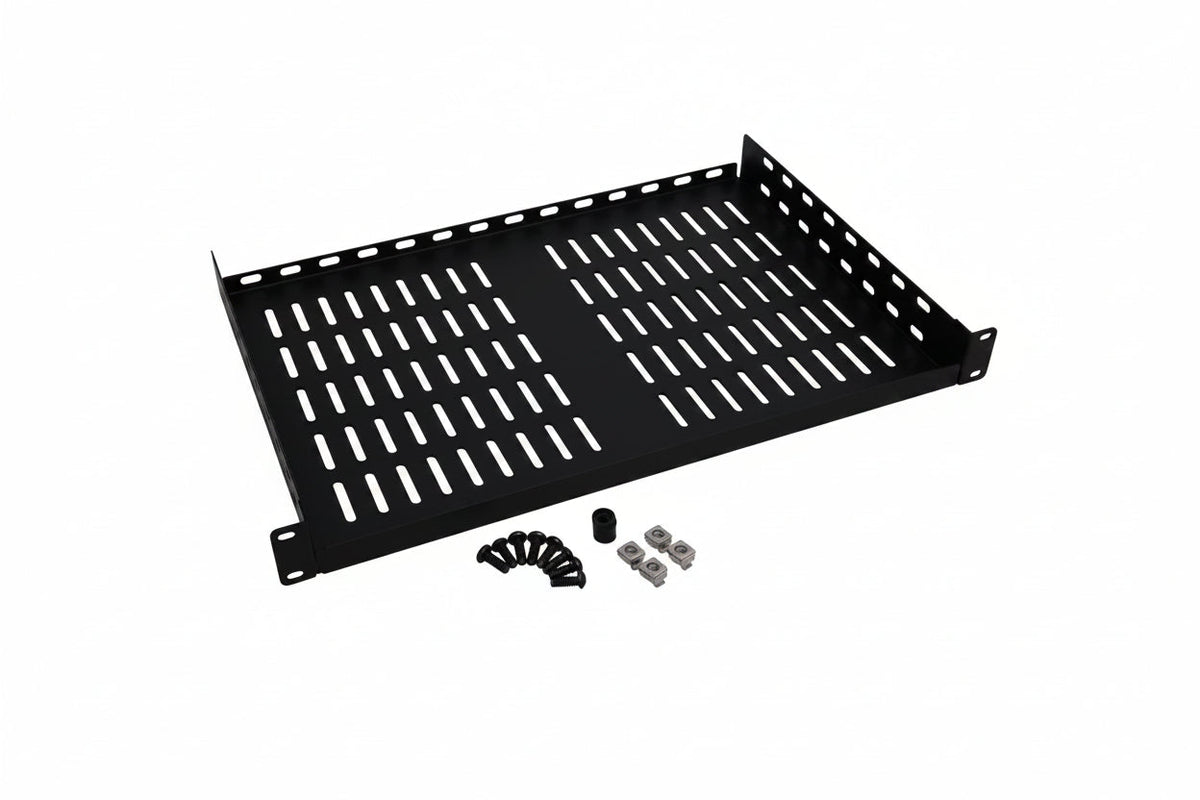

Eaton Tripp Lite SRSHELF2P1U SmartRack 1U Cantilever Fixed Shelf, 18.1 kgs capacity, 12" Depth

The Eaton Tripp Lite SRSHELF2P1U is a 1U cantilever fixed shelf that gives a 2-post rack a flat, supported surface for equipment. Made from cold rolled steel with a black finish, it suits installers and IT staff who need to place gear that has no rack ears. It carries up to 40 lb (18.1 kg), and two units can be paired to build a deeper shelf.

Key features

• Fixed 1U cantilever design mounts in a 2-post rack.
• Cold rolled steel construction with a black finish.
• Supports up to 40 lb (18.1 kg).
• The 12″ (305mm) depth suits shallower equipment.
• Mount two shelves back to back for a deeper fixed shelf in 2-post racks.
• Required mounting hardware is included.

Specifications

Brand: Eaton

Model: SRSHELF2P1U

Product Type: Rack Shelf

Color: Black

Material: Cold rolled steel (CRS)

Width: 19.00″

Depth: 12.00″

Height: 12.00″

Maximum Weight Capacity: 40.00 lb (18.1 kg)

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: Shelf and mounting hardware

Installation notes

Secure the shelf to the rack posts with the supplied hardware and confirm it is level before loading it. Keep the heaviest equipment close to the rack posts and stay within the rated capacity, especially when two shelves are paired for extra depth.
