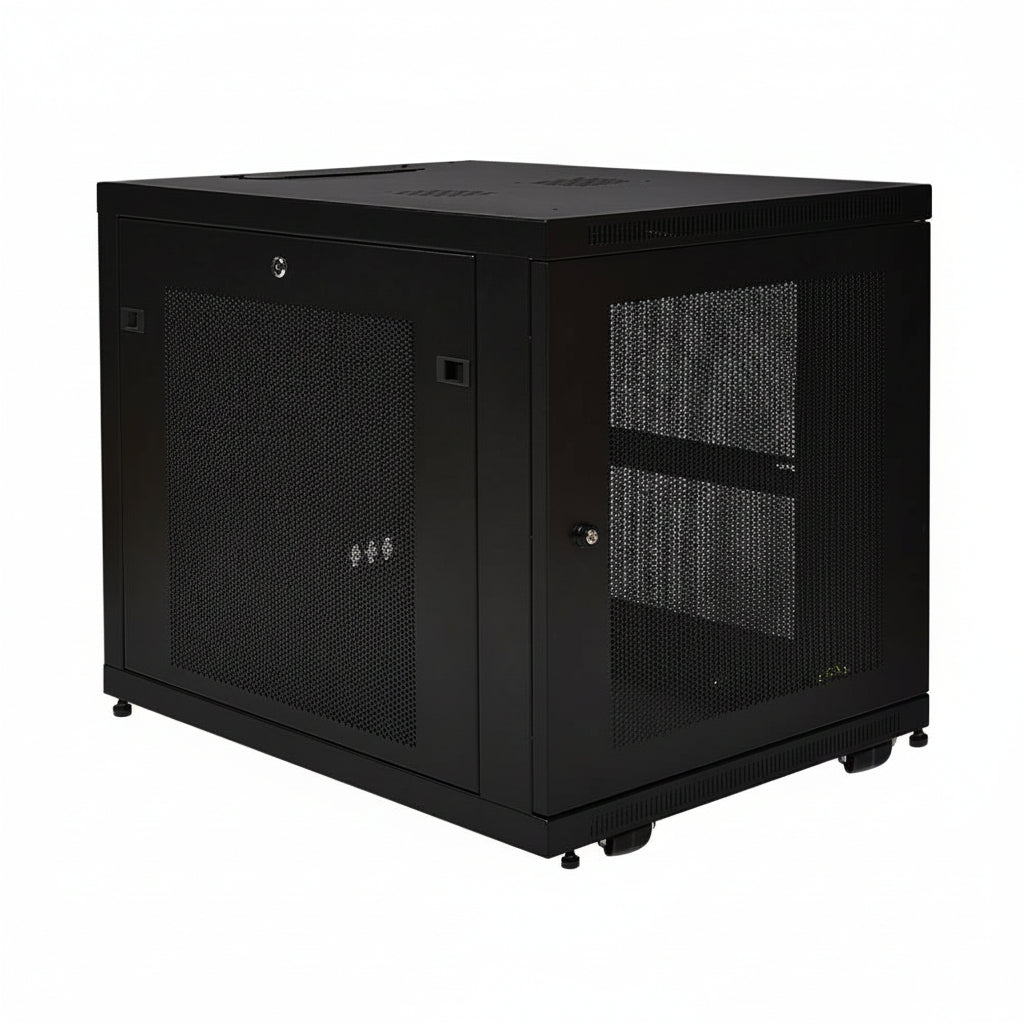

Eaton Tripp Lite SR12UB SmartRack 12U Mid-Depth Small Rack Enclosure

The Eaton Tripp Lite SR12UB SmartRack is a 12U mid-depth rack enclosure that houses standard 19-inch network, AV and security equipment in a lockable cabinet. It suits installers and businesses that need a small, self-contained rack they can roll into place. Locking reversible doors, removable side panels and a 1000 lb (453.6 kg) capacity make it a practical choice for a wiring closet or office.

Key features

• Holds up to 1000 lb (453.6 kg) of rack equipment.
• Adjustable rails fit equipment depths from 3 to 32.5 inches.
• Front and rear doors lock and can be reversed.
• Removable side panels give easy access to the interior.
• Vented panels allow convection cooling.
• Included casters make it easy to move, and numbered rack spaces and square mounting holes simplify equipment installation.

Specifications

Brand: Eaton

Model: SR12UB

Product Line: SmartRack

Product Type: Rack Cabinet

Rack Width: 19.0″

Height: 25.00″

Width: 23.60″

Depth: 33.50″

Weight: 105.00 lb

Maximum Weight Capacity: 1000.00 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Features: UL 60950-1

Country of Origin: CN

Package Contents: SmartRack 12U Mid-Depth Rack Enclosure Cabinet; (36) M6 screws; (36) M6 cage nuts; (36) M6 washers; SRACASTER kit (includes 4 casters); (2) keys; Owner's Manual

Installation notes

Choose a location with clearance around the vented panels so convection cooling can work, and confirm the doors can open fully. Mount the heaviest equipment low in the rack, and set the adjustable rails to match your equipment depth before loading it.
