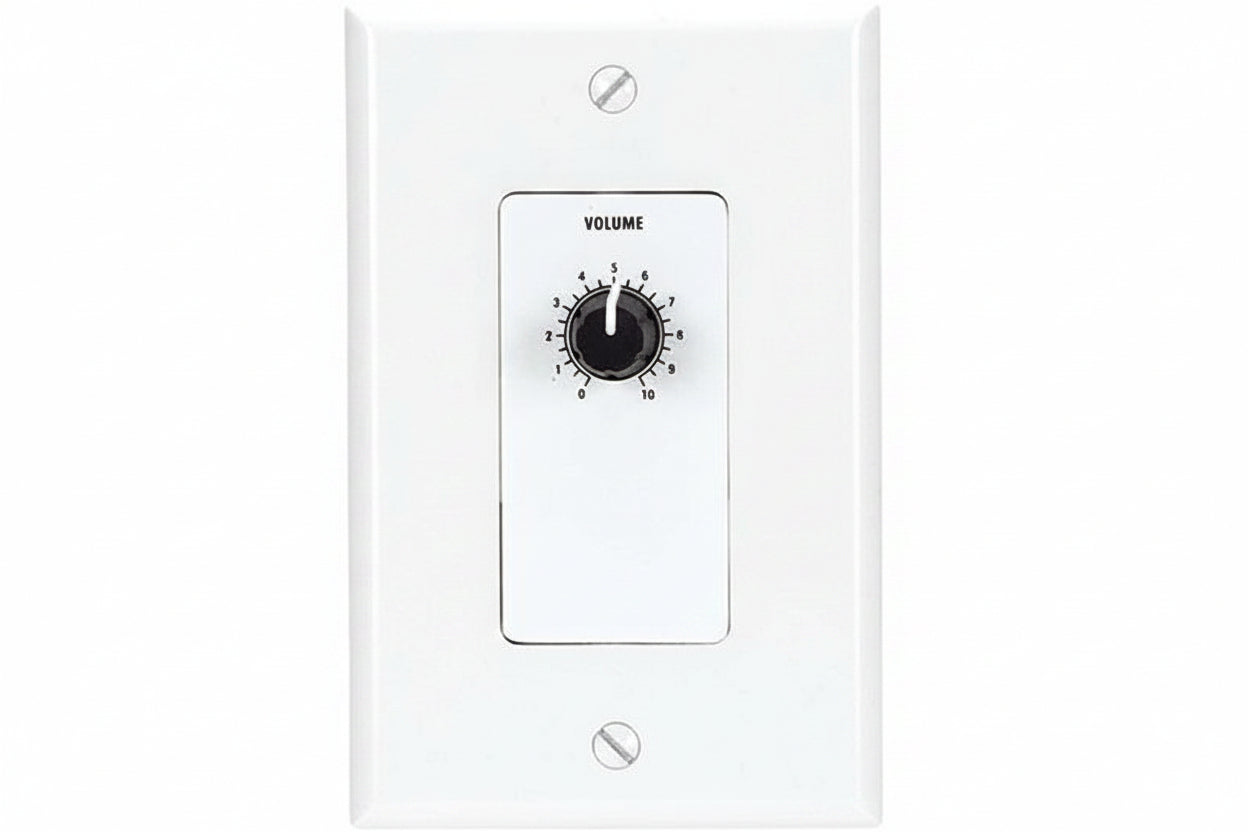

dbx DBXZC1V dbx ZC1 Programmable Volume Control Zone Controller for DriveRack and ZonePRO Systems

The dbx DBXZC1V (ZC1) is a wall-mounted zone controller that gives users hands-on control of a dbx DriveRack or ZonePRO system. It handles volume, program or scene selection, source selection and push-to-talk paging, all programmable from the host unit. It suits installers and facility managers who want simple wall controls in zones without exposing the full processor, and it runs up to 1000 ft. on CAT 5 cable.

Key features

• Programmable volume control lets users adjust levels in a zone from the wall.
• Program or scene selection recalls stored setups on the connected system.
• Programmable source selection switches the audio source for the zone.
• Programmable push-to-talk paging supports live announcements.
• A programmable contact closure interface allows connection to external switching.
• Runs up to 1000 ft. on CAT 5 cable.

Specifications

Brand: dbx

Model: DBXZC1V

Product Model: ZC1

Product Series: ZC

Product Type: Audio Control Device

Color: White

Mount Type: Wall Mount

Compatibility: dbx DriveRack 220i, 260; dbx ZonePRO devices

Connectors: (2) RJ-45

Series Wiring: Maximum cable length varies with the number of zone controllers, for example three zone controllers: 600 ft.; six zone controllers: 300 ft.

Country of Origin: CN

Installation notes

Plan the CAT 5 run before pulling cable, since the maximum length drops as more zone controllers are wired in series. Choose a wall location that users can reach easily, and test each programmed function from the wall during commissioning.
