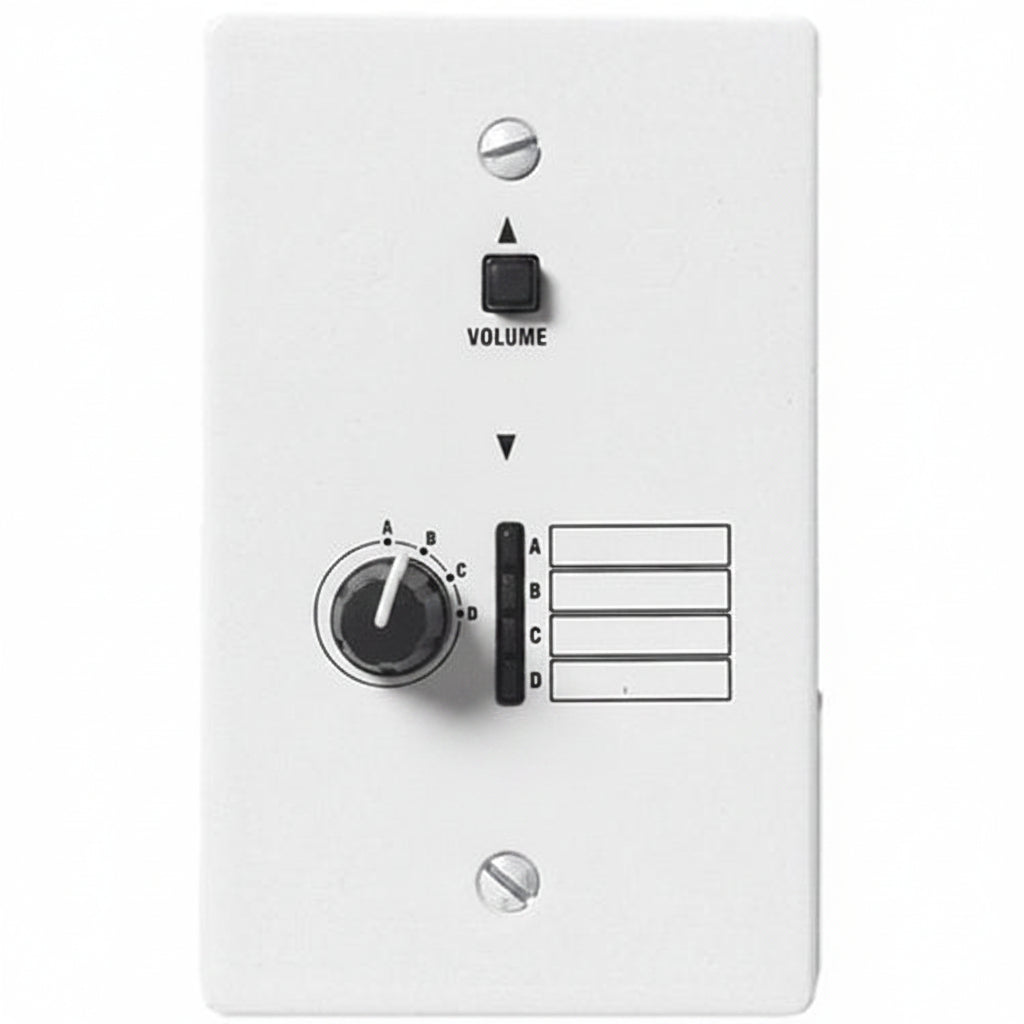

dbx DBXZC8V dbx ZC8 Source Selector and Volume Control for ZonePRO

The dbx DBXZC8V (ZC8) is a wall-mounted zone controller that gives users hands-on control of a dbx ZonePRO system. It handles source selection, volume, program or scene recall and push-to-talk paging from a single wall plate. It suits installers and facility managers who want simple local controls in rooms served by ZonePRO devices.

Key features

• Volume control can be programmed to suit the zone.
• Users can select a program or scene from the wall.
• Source selection is programmable for each controller.
• Push-to-talk paging can be programmed.
• A programmable contact closure interface is included.
• Runs up to 1000 ft. on CAT 5 cable.

Specifications

Model: DBXZC8V

Product Model: ZC8

Product Series: ZC

Brand: dbx

Product Type: Audio Control Device

Mount Type: Wall Mount

Compatibility: dbx ZonePRO Devices

Connectors: (2) RJ-45

Country of Origin: CN

Installation notes

Maximum cable length depends on how many zone controllers are wired in series, so plan the cable run before pulling. For example, three controllers allow 600 ft. and six allow 300 ft. Program the volume, source and scene functions in the ZonePRO system, then test each controller from the wall.
