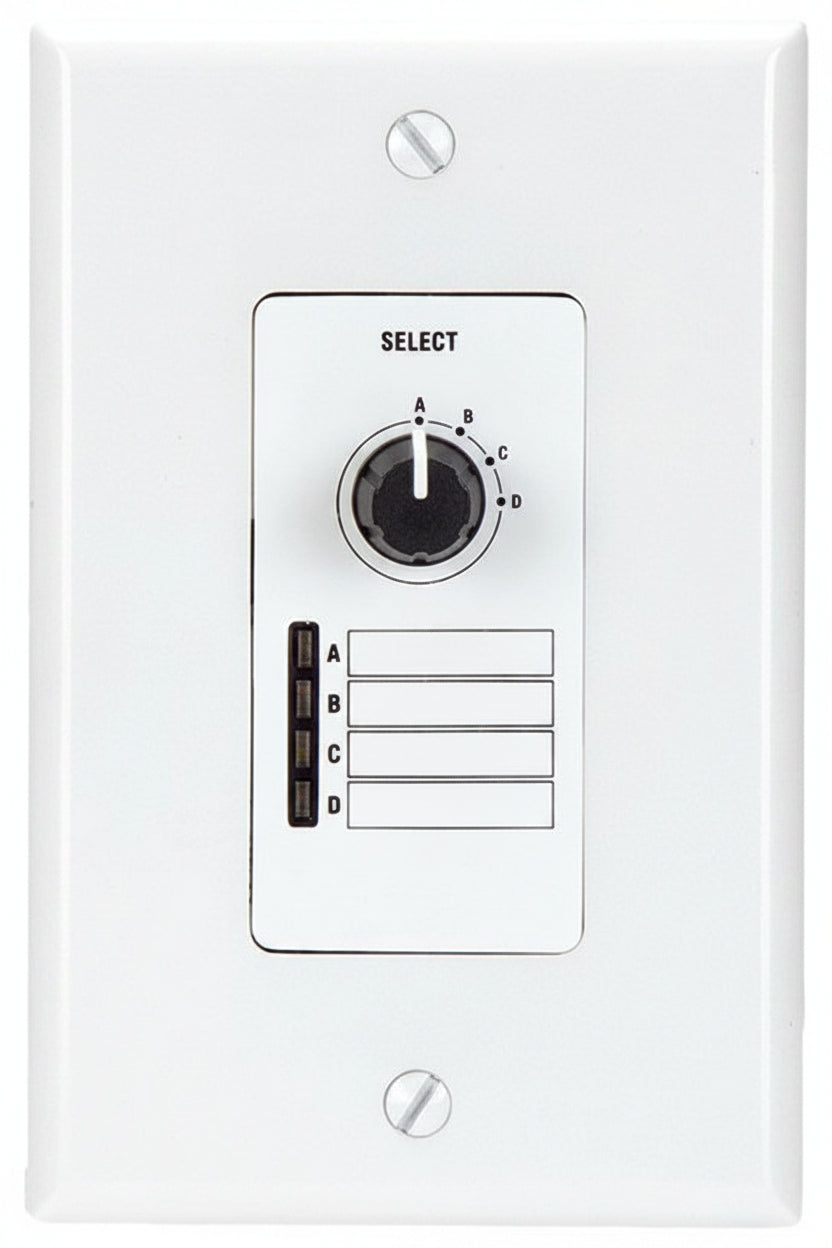

dbx DBXZC3V dbx ZC-3 Program Selector Zone Controller for DriveRack and ZonePRO Systems

The dbx ZC-3 (model DBXZC3V) is a wall-mounted zone controller that adds local control to DriveRack and ZonePRO systems. It lets users in a room adjust volume, pick sources, and recall programs or scenes without touching the processor. It suits installers building multi-zone audio setups, and its programmable functions, including push-to-talk paging and contact closure, and its long CAT 5 run distance make it flexible for larger spaces.

Key features

• Volume control can be programmed to suit the zone.
• Program or scene selection is available from the wall.
• A programmable contact closure interface supports external triggering.
• It can be run up to 1000' on CAT 5 cable.
• Programmable push-to-talk paging is supported.
• Source selection is programmable.

Specifications

Model: DBXZC3V

Product Model: ZC3

Brand: dbx

Product Type: Audio Control Device

Color: White

Mount Type: Wall Mount

Compatibility: DriveRack Loudspeaker Management Systems 260 and 220i

Country of Origin: CN

Installation notes

Plan the CAT 5 cable route to the wall location before finishing the walls, and keep the run within the 1000' limit. Program the volume, source, scene and paging functions in the connected DriveRack or ZonePRO system, then test each control from the wall.
