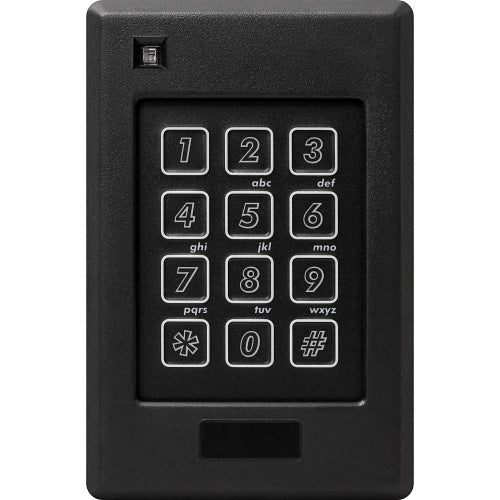

Aiphone AC-10K-1G AC Series 1-Gang Proximity Reader with Access Keypad

The Aiphone AC-10K-1G is a 1-gang proximity reader with a built-in keypad, made for the Aiphone AC Series access control system. It reads 125 kHz Wiegand credentials from up to 6″ away and also accepts PIN code entry, so one device can handle card and code access at a door. It suits installers and facility managers who want an outdoor-rated, NDAA-compliant reader that fits a standard gang box.

Key features

• Combines a proximity reader and keypad in a single 1-gang unit.
• Uses 125 kHz Wiegand technology with a non-contact read range of up to 6″.
• Works with Aiphone 40-bit credentials.
• Also supports HID, AWID, and Pyramid credentials.
• Allows PIN code entry and card swipe functionality.
• Designed for use with the AC Series access control system.

Specifications

Brand: Aiphone

Model: AC-10K-1G

Product Series: AC

Application/Usage: Access Control

Identification Method: PIN/Passcode

Host Interface: Wiegand

Connectivity Technology: Wired

Operating Frequency: 125 kHz

Maximum Frequency: 125.00 kHz

Mount Type: Gang Box Mount

Indoor/Outdoor: Outdoor

Operating Temperature: -40 to 149°F

Color: Black

Height: 4.30″

Width: 3.00″

Depth: 0.70″

NDAA Compliant: Yes

Certifications & Standards: CE

Installation notes

Mount the reader on a gang box at the door and run the Wiegand cable back to the controller, keeping it away from power wiring to limit interference. After mounting, test both card reads and PIN entry at the door before handing the system over.
