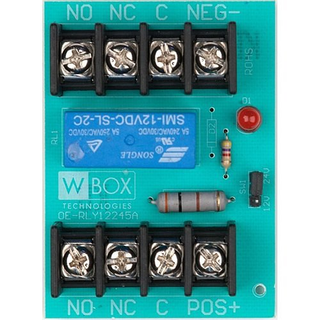

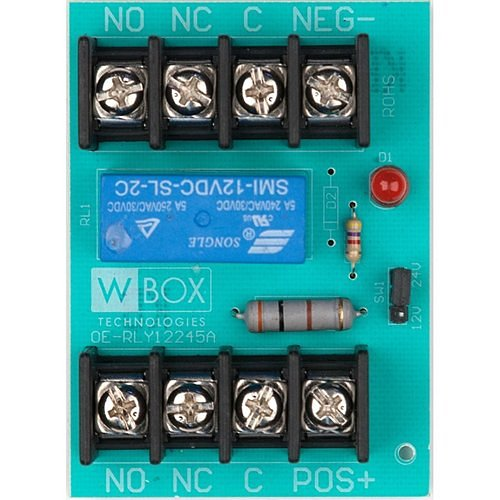

UltraTech 0E-RLY12245A Relay Module – 5A 220VAC/28VDC DPDT Contacts, Selectable 12V or 24V DC Input, Wall-Mount, High-Current Control for Intrusion, Access Control, and Video Surveillance Systems

The UltraTech 0E-RLY12245A is a wall-mount relay module with DPDT contacts rated for 5A at 220VAC or 28VDC. It lets a low-power signal switch a heavier load, which suits installers working on access control and similar low-voltage systems. The input is selectable between 12V and 24V DC, so one module covers either supply voltage.

Key features

• DPDT contacts are rated 5A at 220V AC or 28V DC.
• The input can be set to 12V or 24V DC operation.
• The module draws 75 mA.
• AC input requires 9.6VA.
• It operates from -13°F to 131°F (-25°C to 55°C) and tolerates 0 to 95% humidity.
• Storage temperature range is -13°F to 158°F (-25°C to 70°C).

Specifications

Brand: UltraTech

Model: 0E-RLY12245A

Product Type: Relay

Application/Usage: Access Control

Contact Type: DPDT (Double Pole Double Throw)

Contact Rating: 5A, 220V AC or 28V DC

Input Voltage: 12 or 24V DC, selectable

Current Draw: 75 mA

AC Input Required: 9.6VA

Form Factor: Wall Mount

Mount Type: Wall Mount

Operating Temperature: -13°F to 131°F (-25°C to 55°C)

Storage Temperature: -13°F to 158°F (-25°C to 70°C)

Humidity: 0 to 95%

Country of Origin: CN

Installation notes

Set the input voltage selection to match your power supply before applying power, and confirm that the load stays within the contact rating. Mount the module on a secure wall surface in a location that stays within the listed temperature and humidity range.
