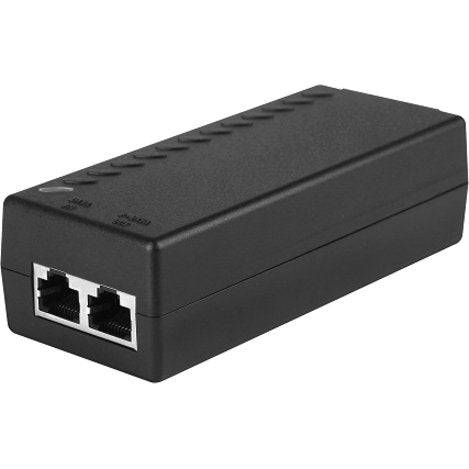

UltraTech 0E-15WPOEINJ Gigabit PoE Injector

The UltraTech 0E-15WPOEINJ is a single-port Gigabit PoE injector that adds power to an Ethernet run so a powered device can work without a nearby outlet. It suits installers and homeowners who need to power a camera, access point or similar device from a switch that has no PoE. It is IEEE 802.3af compliant, delivers up to 15.4W, and has an internal power supply, so there is no external adapter to place.

Key features

• Follows the IEEE 802.3af standard for PoE.
• Supplies up to 15.4W on the PoE port.
• Works with 10/100/1000Base-T networks.
• Has one Gigabit data input port and one Gigabit data-plus-PoE output port.
• Includes a port status LED indicator.
• Has an internal power supply and ships with a power cord.

Specifications

Brand: UltraTech

Model: 0E-15WPOEINJ

Product type: PoE Injector

PoE standard: IEEE 802.3af

Input port: Ethernet

Output port: Ethernet

Input voltage: 120V AC

Maximum output power: 15.40W

Maximum output voltage: 54V

Height: 4.80″

Width: 2.00″

Depth: 1.40″

Weight: 10.56oz

Environmental certification: RoHS

TAA compliant: Yes

NDAA compliant: Yes

Package contents: 0E-15WPOEINJ Gigabit PoE Injector 15W, power cord

Installation notes

Connect the switch or router to the Data IN port and the powered device to the Data + PoE OUT port. Place the injector near an AC outlet in a dry, ventilated spot. Check the port status LED after connecting to confirm the device is powered.
