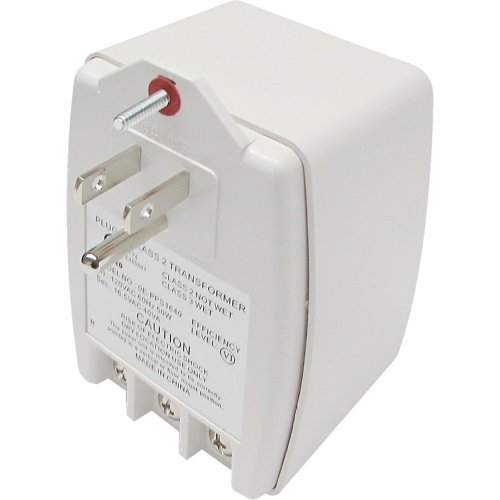

UltraTech 0E-PPS2440 24VAC, 40VA with Auto-Resetting PTC Fuse

The UltraTech 0E-PPS2440 is a plug-in 24V AC, 40VA (40W) Class 2 power supply transformer that runs from a 120V AC, 60Hz input. It supplies AC power to indoor security and surveillance equipment, and suits installers and businesses that need a protected 24V AC source. An auto-resetting PTC fuse and an LED power indicator make it easy to trust and easy to check on site.

Key features

• Delivers 24V AC at 40VA (40W) from a 120V AC, 60Hz primary rated at 50W.
• Class 2 design with an auto-resetting PTC fuse for protection.
• LED power indicator shows when the unit is powered.
• Three screw terminals and a grounding plug handle the connections.
• Efficiency level VI compliant and UL Listed.
• Made for indoor use only, with an operating range of 23°F to 86°F (-5°C to 30°C).

Specifications

Brand: UltraTech

Model: 0E-PPS2440

Product Type: Power Supply Transformer

Form Factor: Plug-in

Input Voltage: 120V AC

Output Voltage: 24V AC

Power Rating: 40.00W

Output Receptacle Type: Screw Terminal

Output Receptacle Detail: 3 x Screw Terminal

Color: White

Width: 4.20″

Height: 3.20″

Weight: 1.70 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Installation notes

Plug the unit into an indoor outlet in a spot that stays within its stated operating temperature range, and keep the area around it clear. Confirm the connected device's voltage and power draw match the transformer's output before landing wires on the screw terminals, then check that the LED is lit once power is applied.
