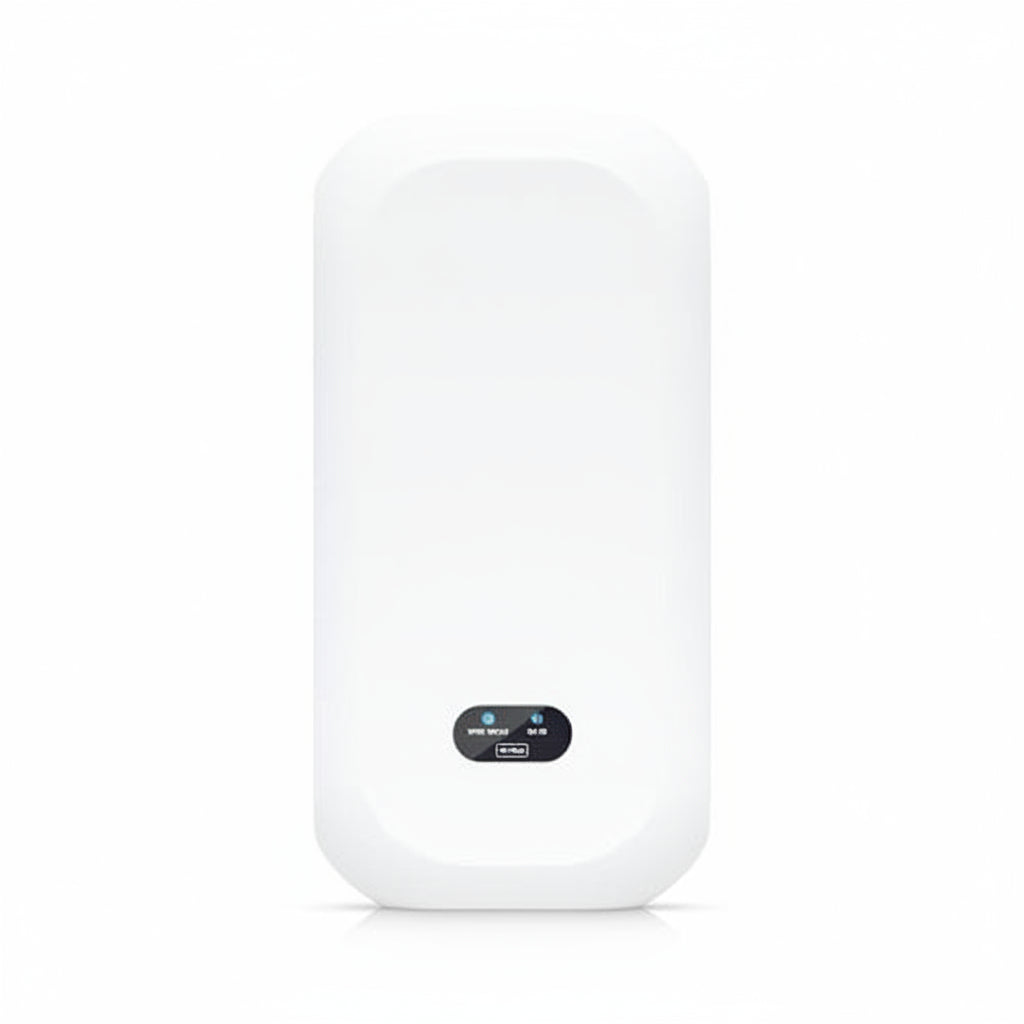

Ubiquiti UVC-AI-THETA-HUB Remote Processing Unit for AI Theta Lens & Audio, PoE Powered, 0.96" Display, Wall/Ceiling Mountable

The Ubiquiti UVC-AI-THETA-HUB (AI Theta Hub) is a remote processing unit that runs the AI Theta Lens and Audio modules from a separate, compact enclosure. It suits UniFi Protect installations that need the camera processing kept apart from the lens location. It is PoE powered, NDAA compliant and has a 0.96″ color display for system status and diagnostics.

Key features

• Processes video and audio for AI Theta Lens and Audio modules from a remote location.
• A quad-core Arm Cortex-A53 processor handles the processing work.
• The 0.96″ color display shows system status and diagnostics.
• Runs on PoE, with each port delivering 5V DC at 1A to connected devices.
• The aluminum enclosure mounts on a wall or ceiling using the included hardware.
• Supports H.264 video compression and advanced image settings, and integrates fully with UniFi Protect.

Specifications

Brand: Ubiquiti

Model: UVC-AI-THETA-HUB

Product name: AI Theta Hub

Product type: Hub

Product line: UniFi

Product series: UVC AI

Processor: Quad-core Arm Cortex-A53

Display: 0.96″ color

Video compression: H.264

Dimensions (H x W x D): 5.50″ x 2.80″ x 1.50″ (140 x 70 x 38 mm)

Weight: 11.60 oz

Enclosure: Aluminum

Mount type: Wall/ceiling mount

Power source: PoE (DC power)

Input voltage: 37-57V DC

Power consumption: 12.5 W maximum

Output per port: 5V DC, 1A

Operating temperature: -4 to 104° F (-20 to 40° C)

Operating humidity: 10–90%

Certification: FCC

Compliance: NDAA compliant

Environmentally friendly: Yes

Installation notes

Choose a mounting spot that stays within the stated operating temperature and humidity range, and where the display is easy to read during commissioning. Run the PoE cable to the hub and confirm the switch port can supply its maximum 12.5W draw before you mount it.
