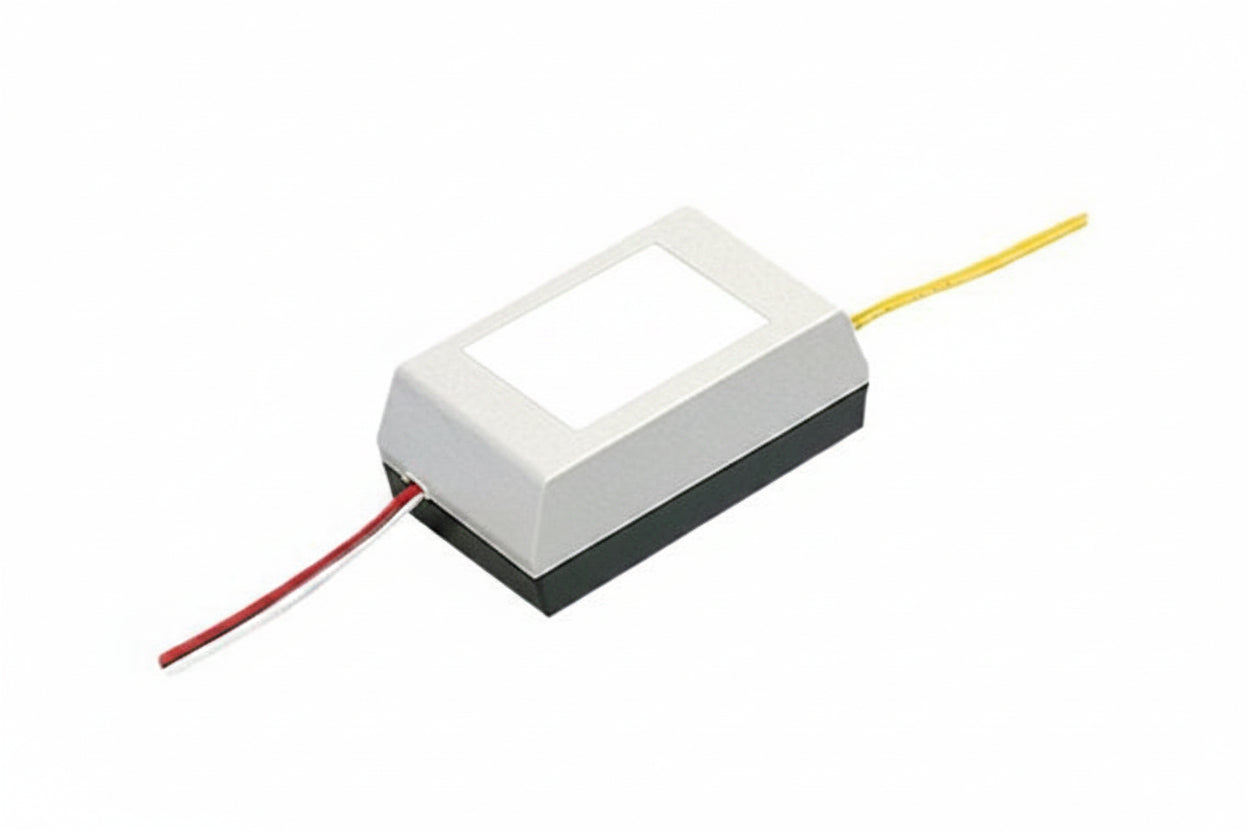

Aiphone RY-AC/A External Signaling Relay, LEF

The Aiphone RY-AC/A External Signaling Relay is a wired relay module that triggers an outside device, such as a doorbell, buzzer or other signaling device, when someone calls from the door station. It suits installers and facility owners who need to extend call notification beyond the intercom master stations on an Aiphone LEF, TD-H, TD-Z or IE-8MD system. The housing is ABS, and the unit is both TAA and NDAA compliant.

Key features

• Triggers an external device whenever the intercom is called.
• Activates the connected device momentarily for as long as the call button on the door station is activated.
• Works for call extension on LEF, TD-H, TD-Z and IE-8MD systems.
• Connects by wire as part of an Aiphone intercom system.
• The external device and the power for it are not supplied by Aiphone.

Specifications

Brand: Aiphone

Model: RY-AC/A

Product Type: Relay

Product Series: LEF

Application/Usage: Intercom System

Connectivity Technology: Wired

Material: ABS

Compatibility: Aiphone Intercom Systems: LEF, TD-H, TD-Z, IE-8MD

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: JP

Installation notes

Plan for a separate power source and the signaling device, since neither comes from Aiphone. After wiring, press the door station call button to confirm the external device activates as expected.
