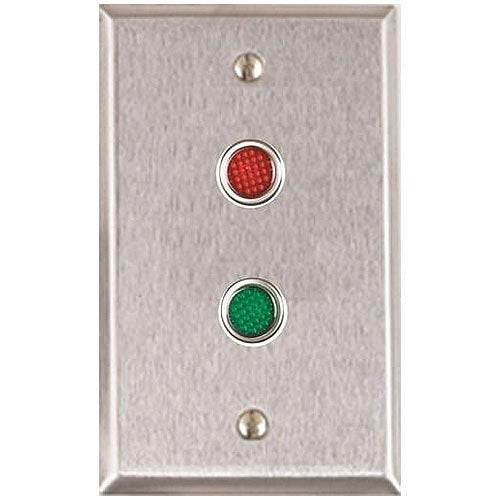

Alarm Controls RP-09L302 Remote Wall Plate with 1/2" Red and Green LEDs, Mounted Vertically, 302 Stainless Steel

The Alarm Controls RP-09L302 is a single-gang stainless steel wall plate that holds red and green LEDs for remote status indication. It suits installers who need a clean, finished-looking indicator point on a wall, such as for access control or alarm status. The plate is a vertically mounted 302 stainless steel unit from Alarm Controls, and its LEDs come with flying leads for wiring.

Key features

• Single-gang wall plate with a stainless steel finish.
• Holds red and green LEDs for remote status indication.
• Wall mounting is a cost-effective way to install it.
• The LEDs come with flying leads for connection.
• The LED draws 8mA at 12 VDC and 12mA at 24 VDC.

Specifications

Brand: Alarm Controls

Model: RP-09L302

Product Type: Faceplate

Product Series: RP- LED

Material: Stainless Steel

Number of Gangs: 1

Width: 2.80″

Height: 4.50″

Country of Origin: US

Installation notes

Plan the cable run to the plate before mounting, and leave enough slack on the flying leads to make connections comfortably. Confirm your supply voltage against the LED current draw figures listed above, and test both the red and green indications before closing up the wall.
