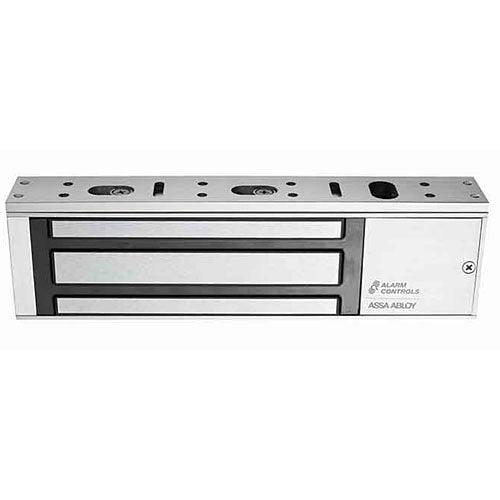

Alarm Controls 1200S Single Door Magnetic Lock

The Alarm Controls 1200S is a single-door magnetic lock that holds a door shut with 1200 lb of force and works with any access control system. It is a bracket-mounted, clear anodized unit suited to interior doors where traffic control matters, and installers and facility managers will like the instant release and the E-Z Mount bracket and template, which mean no special tools are needed.

Key features

• Releases instantly with no hysteresis when power is removed.
• Built-in arc suppression is included.
• Voltage is field selectable between 12 and 24VDC.
• The E-Z Mount header bracket and template are provided, and self-drilling TEC screws are used.
• Non-aluminum parts are plated to resist corrosion.
• The clear anodized (US28) finish is standard.

Specifications

Brand: Alarm Controls

Model: 1200S

Product series: 1200

Product type: Magnetic Lock

Holding force: 1200 lb

Input voltage: 12V DC

Input current: 260mA

Mount type: Bracket mount

Door supported: Hinged

Color: Clear

Finish: Clear anodized

Width: 1.5″

Depth: 10.5″

Application: Access control system

Compatibility: Any access control system

Certifications and standards: UL 294 listed, UL 10C fire rated, CAN/ULC-S104 fire door conformant, UL 864 listed, CAN/ULC-S527 listed

Packaged quantity: 1

Country of origin: CN

Installation notes

Use the supplied template to mark the header bracket position so the lock and armature plate line up when the door closes. Set the 12 or 24VDC selection to match your power supply before applying power, and test the release with your access control system during commissioning.
