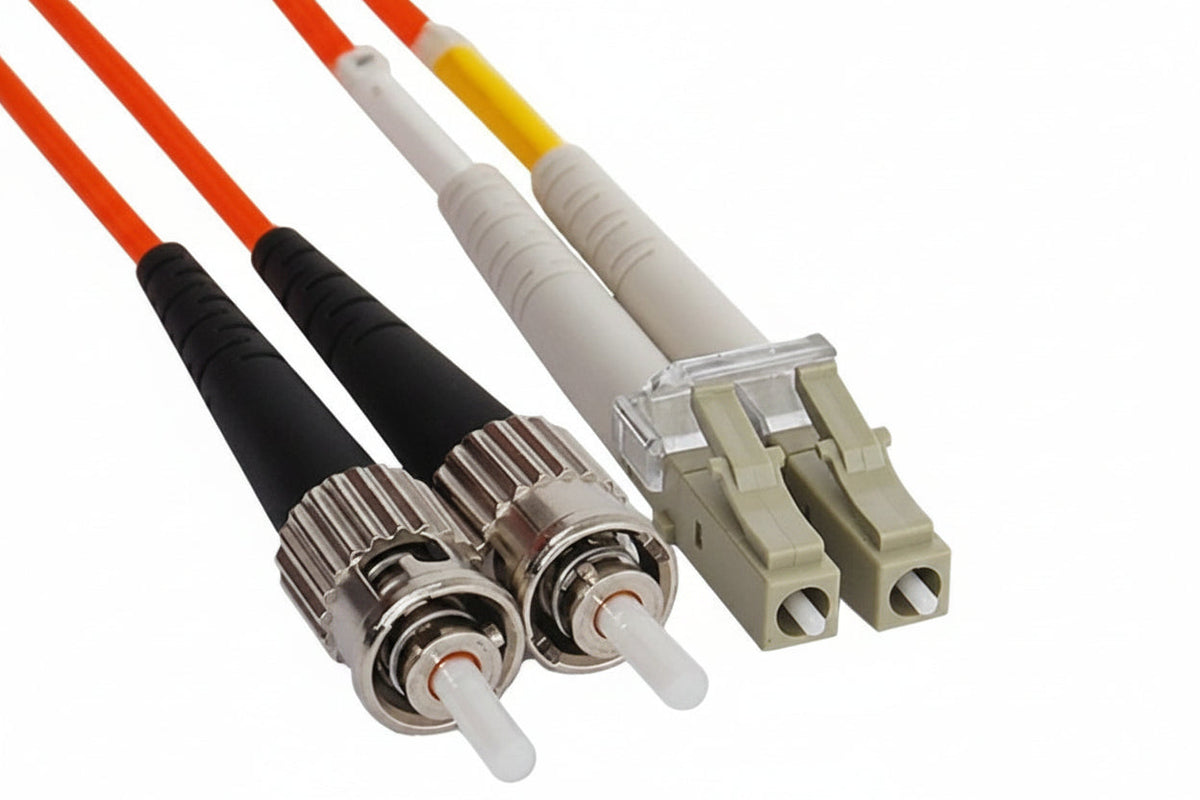

ICC ICFOJ3M301 LC-ST Duplex Multimode 62.5/125 (OM1) Fiber Optic Patch Cable in Orange, 3' (1 m)

The ICC ICFOJ3M301 is a 3' (1 m) LC-ST duplex patch cable built on 62.5/125 µm OM1 multimode fiber. It connects network devices that use LC ports to equipment with ST ports, and it suits installers and IT staff working with existing OM1 plant indoors. The orange jacket marks it as multimode, and ICC builds it from OFNR riser-rated cable.

Key features

• The LC-to-ST hybrid ends let you link LC and ST equipment without a separate adapter.
• Duplex zip-cord construction carries two fibers side by side.
• The cable is made from OFNR riser-rated cable that ICC says exceeds industry requirements.
• Dust caps are included to protect the connectors.
• Every cable is 100% factory tested.
• It is meant for use with ICC fiber optic products and is also offered in 1, 2, 3, 5, 7 and 10 meter lengths.

Specifications

Brand: ICC

Model: ICFOJ3M301

Product type: OM1 multimode fiber-optic patch cable

Connectors: LC-ST duplex

Length: 3' (1 m)

Core/cladding diameter: 62.5/125 µm

Fiber category: OM1

Fiber mode: Multimode

Fiber count: 2

Color: Orange

Material: Fiber

Cable feature: Zip cord

Application: Indoor

Device supported: Network device

Environmental certification: RoHS

Installation notes

Keep the dust caps on until you are ready to connect, and clean the connector ends if they pick up dirt. Match this OM1 cable to other 62.5/125 µm multimode gear, and avoid tight bends or pulling on the connectors when routing it.
