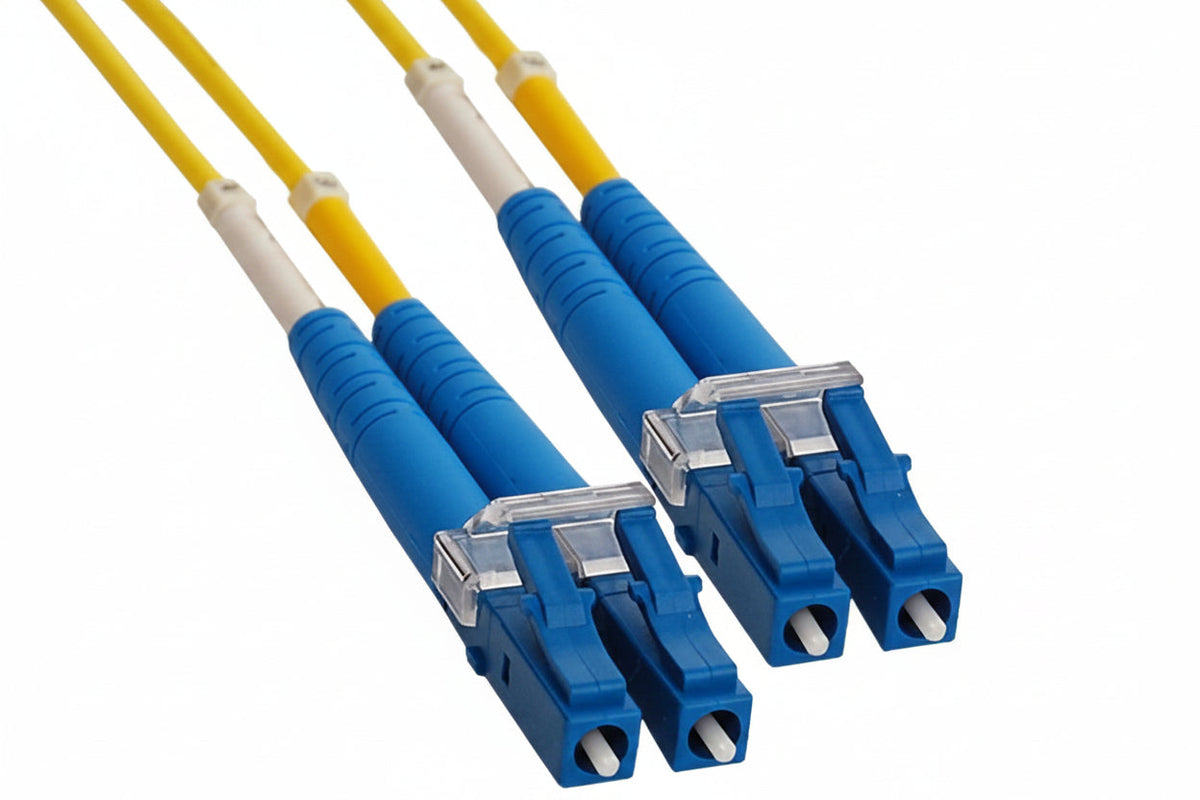

ICC ICFOJ1M502 LC Duplex Single-mode 9/125 (OS1) Fiber Optic Patch Cable, 6' (2 m), Yellow

The ICC ICFOJ1M502 is a 6' (2 m) duplex LC-to-LC single-mode fiber optic patch cable. It links network devices to fiber panels or other gear in indoor runs. The 9/125 µm OS1 fiber and UPC polished connectors suit installers and IT staff building or patching single-mode links. It comes in yellow, which makes single-mode jumpers easy to spot in a rack.

Key features

• It is designed for use with ICC fiber optic products.
• The same jumper is offered in 1, 2, 3, 5, 7 and 10 meter lengths.
• Dust caps are included to protect the connector ends.
• Every cable is 100% factory tested.
• The duplex design carries two fibers in one cable for a transmit and receive pair.

Specifications

Brand: ICC

Model: ICFOJ1M502

Product name: Singlemode Duplex LC-LC Fiber Optic Jumper

Cable type: Fiber optic

Length: 6' (2 m)

Fiber mode: Single-mode

Fiber category: OS1

Core/cladding diameter: 9/125 µm

Fiber count: 2

Connector feature: UPC polished connector

Jacket material: PVC

Color: Yellow

Application: Indoor

Device supported: Network device

Installation notes

Leave the dust caps on until you are ready to connect, and clean the connector ends if they pick up dust. Route the cable with gentle bends and no tight pulls, and match the transmit and receive fibers correctly at each end of the duplex link.
