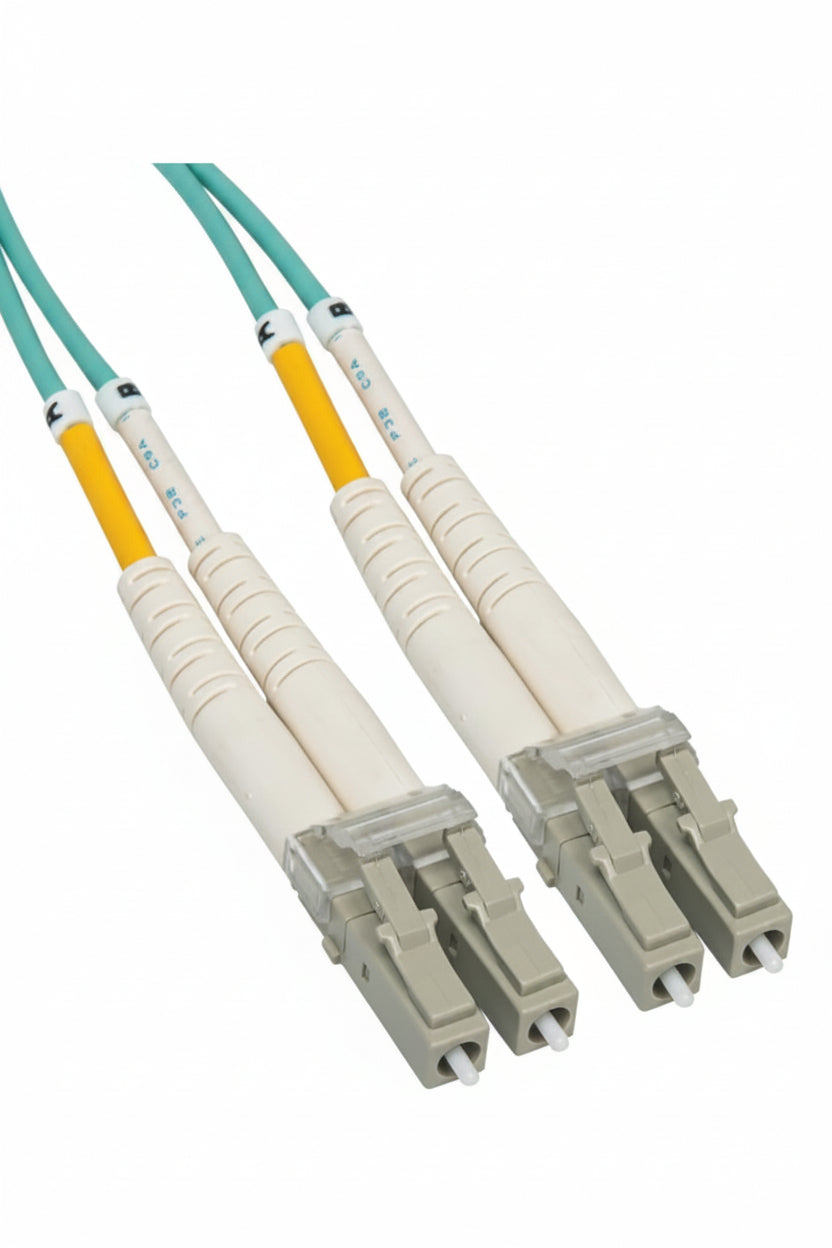

ICC ICFOJ1G703 OM3 Multimode LC to LC 50/125µm Fiber Patch Cable, Data Center Grade 0.1dB Typical Insertion Loss, ONFR Riser Jacket, 3m (10'), 1-Pack, Aqua

The ICC ICFOJ1G703 is a 3m (10') OM3 multimode LC-to-LC duplex patch cable with 50/125µm fiber, built for 10G links between network gear in data centers and equipment rooms. It suits installers and IT teams connecting SFP+ transceivers, fiber NICs and SAN equipment. The aqua jacket makes it easy to tell as OM3, and each assembly is 100% factory tested.

Key features

• Supports 10 Gigabit Ethernet, Fibre Channel and SAN links with VCSEL-based equipment such as SFP+ transceivers and fiber NICs.
• Uses a 2.0 x 4.2mm duplex zipcord with slim-profile boots for strain relief and pre-polished ceramic ferrules.
• Has a bend-insensitive design with a 7.5mm radius to help reduce signal loss in tight routing.
• Meets TIA/EIA 604-2 and Bellcore GR-326, and supports IEEE 802.3, IEC-60793-1-10 and OM3 standards.
• Has a flame-retardant polyolefin aqua jacket with a riser rating, which makes OM3 50/125 fiber easy to identify.
• Operates from -20°C to +70°C with a minimum bend radius of 0.79 inches.

Specifications

Brand: ICC

Model: ICFOJ1G703

Product type: OM3 multimode fiber-optic patch cable

Connectors: LC to LC

Core/cladding diameter: 50/125 µm

Fiber category: OM3

Fiber mode: Multimode

Fiber count: 2

Length: 3m (10')

Packaging: 1-pack

Jacket rating: ONFR riser

Color: Aqua

Typical insertion loss: 0.1dB

Data transfer rate: 10Gbps

Ferrule material: Zirconia (zirconium dioxide)

Application: Indoor

Operating temperature: -20°C to +70°C

Minimum bend radius: 0.79 inches

Width: 0.50″

Height: 0.38″

Environmental certification: RoHS

Country of origin: TW

Installation notes

Clean the connector end faces before mating and keep the dust caps on until you plug in. Route the cable without kinks or tight bends, and make sure the duplex polarity matches at both ends of the link.
