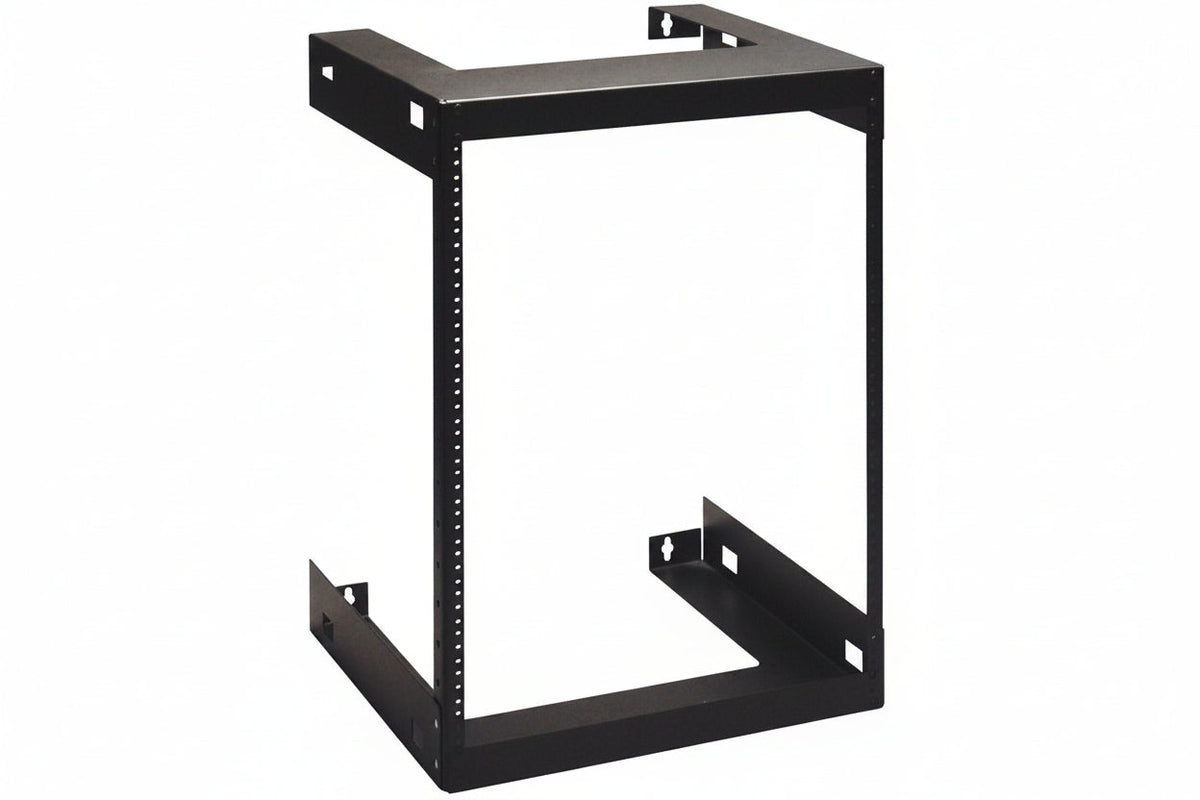

ICC ICCMSWMR15 18" Wall Mount Rack, 15U RMS

The ICC ICCMSWMR15 is an 18″-deep, 15 RMS wall mount rack cabinet from ICC, built from black steel for voice and data installations. It gives installers a place to mount patch panels, active components, shelves and drawers on a wall in a standard 19″ rack layout. Its steel construction and listed weight capacity suit setups that need more rack space than a smaller enclosure offers.

Key features

• Durable steel construction.
• Provides 15 rack mount spaces for installations that need more equipment.
• The 18″ depth suits voice and data gear such as patch panels, active components, shelves and drawers.
• Supports up to 125 lbs of equipment.
• Ships with #12 rack screws.

Specifications

Brand: ICC

Model: ICCMSWMR15

Product Type: Rack Cabinet

Color: Black

Material: Steel

Form Factor: Wall Mount

Mount Type: Wall Mount

Height: 30.00″

Width: 19.80″

Depth: 18.00″

Rack Width: 19.0″

Rack Depth: 18.0″

Maximum Weight Capacity: 130.00 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Package Contents: ICCMSWMR15 Wall Mount Rack Cabinet, Rack Screws #12

Installation notes

Fasten the cabinet to the wall structure with hardware rated for the loaded weight, and keep the load within the stated capacity. Mount heavier equipment toward the bottom, and leave room around the cabinet for cable routing and access.
