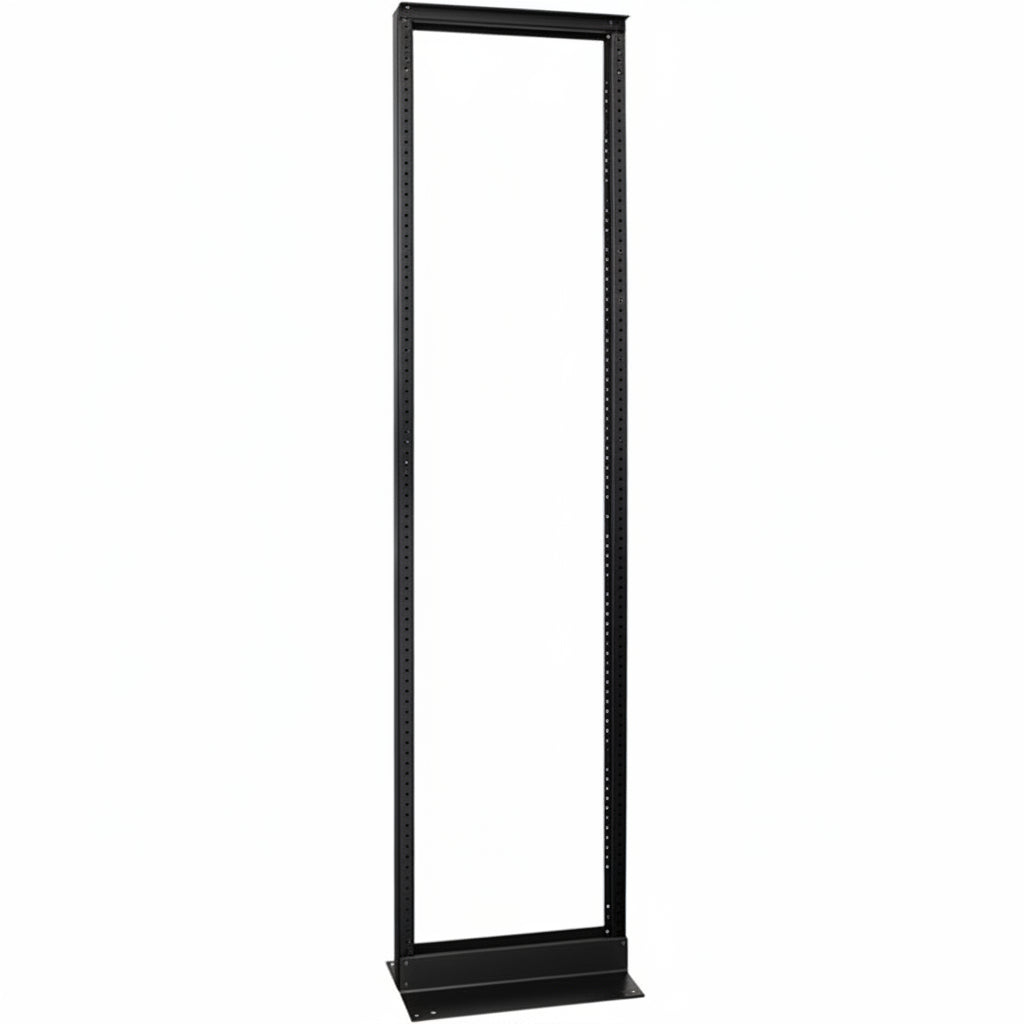

ICC ICCMSR1984 7' 2-Post Distribution Rack, 45U RMS

The ICC ICCMSR1984 is a 7-foot, 45 RMS two-post distribution rack made from black powder coated aluminum. It holds voice and data equipment such as patch panels, active components, shelves, drawers and cable management products, which makes it a fit for installers building out network and telecom spaces. It stands out for its lightweight aluminum build and a rated load of up to 750 lbs. when properly loaded and floor anchored.

Key features

• Aluminum construction with a lightweight, black powder coated finish.
• Made from 9 AWG aluminum.
• Works with all rack mount products, including patch panels, shelves and drawers.
• Printed rack space numbering makes it easier to place equipment.
• Tapped for a #12-24 thread.
• Installation instructions are included.

Specifications

Brand: ICC

Model: ICCMSR1984

Product Type: Rack Frame

Rack Units: 45 RMS

Height: 7 feet

Rack Width: 19.0″

Material: Aluminum

Color: Black

Form Factor: Rack Mount

Mount Type: Rack Mount

Application/Usage: LAN Switch

Features: Cable Management

Maximum Weight Capacity: 750.00 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Package Contents: ICCMSR1984 2-Post Rack Frame, 3/8-16 Bolts, Washers for Assembly, #12 Mounting Screws, Installation Instructions

Installation notes

Anchor the rack to the floor before loading it, and spread heavier equipment low on the frame. Plan cable routing and equipment placement ahead of time, and follow the included installation instructions during assembly.
