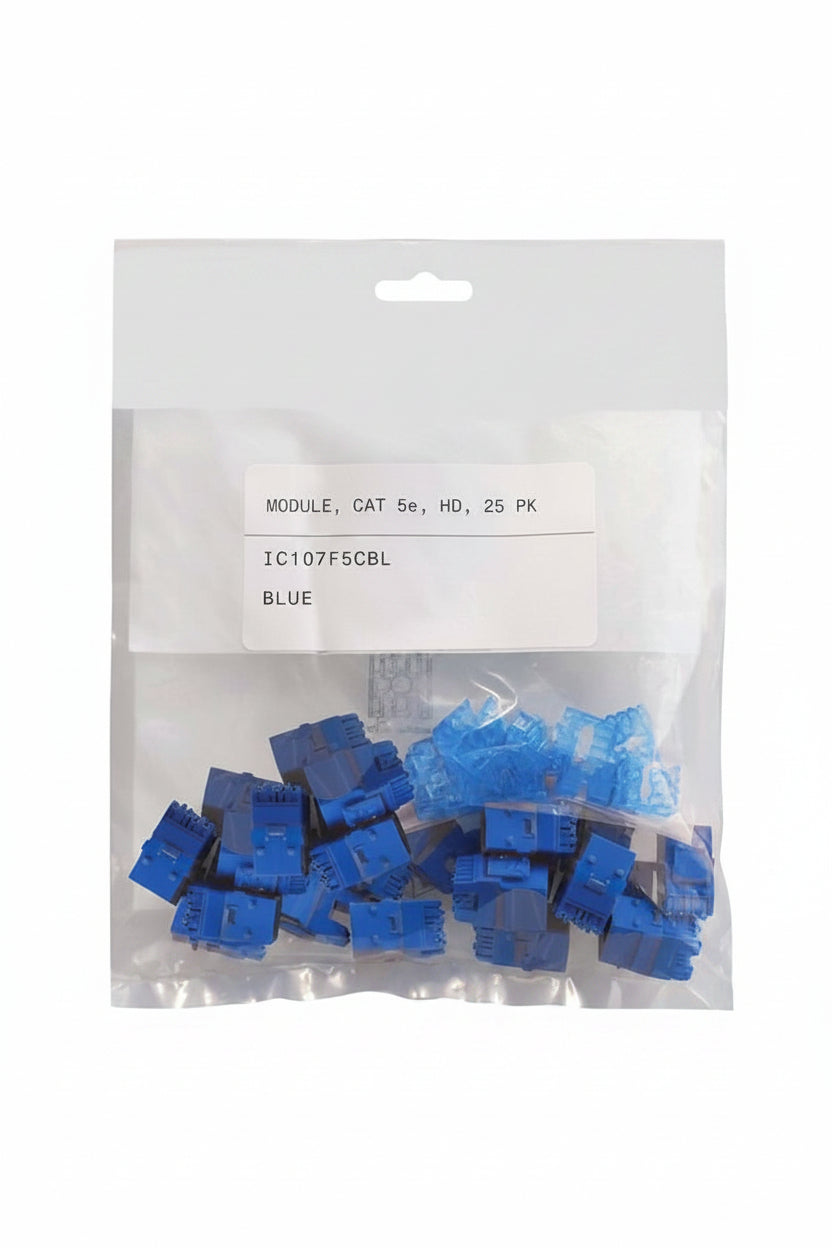

ICC IC107F5CBL CAT5e RJ45 Keystone Jack, HD Style, 25-Pack, Blue

The ICC IC107F5CBL is a 25-pack of blue CAT5e RJ45 keystone jacks in the HD style, built for structured cabling runs in business and home networks. Each jack uses PCB technology and enhanced crosstalk cancellation to keep signal quality high, and it terminates with 110 IDC contacts to speed up installation. A reduced rear footprint and a TIA-568A/B color wiring diagram on the jack make it a practical choice for installers building dense patch panels or wall plates.

Key features

• PCB technology and enhanced crosstalk cancellation help reject noise and unwanted signals while reducing return loss.
• The jack exceeds ANSI/TIA-568-C requirements for permanent link, channel link and component performance.
• 110 IDC termination is designed to cut installation time.
• A reduced rear footprint allows more ports in a smaller area.
• An integrated TIA-568A/B color wiring diagram is included on the jack.
• It is backwards compatible with lower-rated category components and fits IC107 faceplates, inserts, surface mount boxes and blank patch panels.

Specifications

Brand: ICC

Model: IC107F5CBL

Product type: Network Connector

Cable type: Category 5e

Connector type: RJ45

Color: Blue

Contact plating: Gold

Packaged quantity: 25

Package type: Bag

Package contents: Cat.5e Modular Connector, Installation Instructions

Environmental certification: RoHS

Environmentally friendly: Yes

TAA compliant: No

Compatibility: ICC IC107 face plates, inserts, surface mount boxes and blank patch panels; ICC IC108 furniture face plates, bezels and surface mount boxes; ICC Category 5e patch cables (ICPCS5 and ICPCS9 series); ICC punch down tool ICACSPDT00

Installation notes

Follow the TIA-568A/B color diagram on the jack and keep the same wiring scheme throughout the installation. Terminate with a 110 punch down tool, and keep the cable twists intact up to the point of termination to preserve performance.
