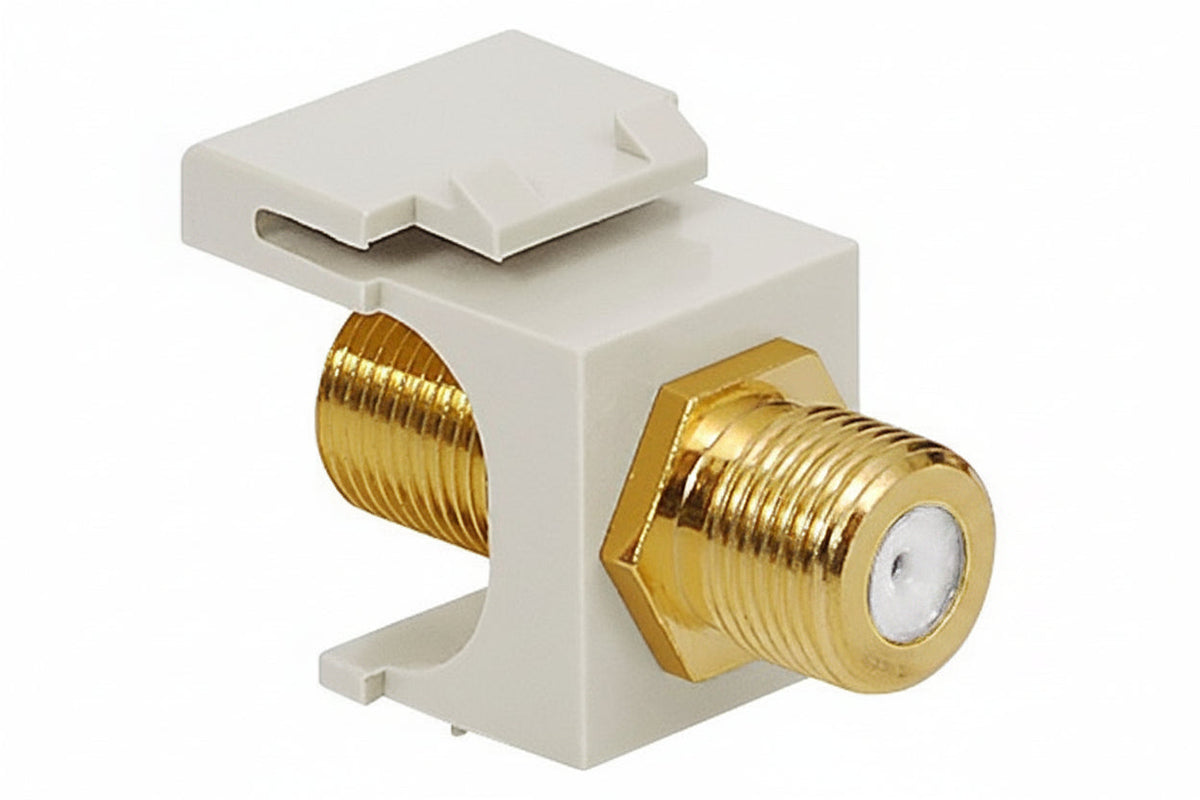

ICC IC107BGCWH 2GHz F-Type Modular Jack, Gold-Plated Connector, HD Style, 25-Pack, White

The ICC IC107BGCWH is a white, female F-type modular jack with a gold-plated connector, sold in a 25-pack. It gives installers a clean wall-outlet termination point for coax runs carrying audio, video, cable or antenna signals. The rear threaded F connectors accept both RG6 and RG59 cable, and the HD-style jack is UL Listed.

Key features

• Gold plating improves performance and helps keep signal quality high with minimal noise.
• Rear threaded F-type connectors make secure in-wall connections with RG6 and RG59 coaxial cable.
• Suited to audio and video applications.
• Gives a clean, neat finished appearance at the wall.
• Works with work area outlet faceplates, inserts and surface mount boxes.
• UL Listed.

Specifications

Brand: ICC

Model: IC107BGCWH

Product Type: F-Coax Connector

Style: HD

Frequency: 2 GHz

Connector Type: F-Type

Connector Gender: Female

Connector Plating: Gold

Color: White

Material: Acrylonitrile Butadiene Styrene (ABS)

Packaged Quantity: 25

Country of Origin: CN

Installation notes

Match the jack to the cable type, RG6 or RG59, and thread the cable's F connector on firmly at the rear so the connection stays secure inside the wall. Confirm the faceplate, insert or surface mount box accepts this jack before you terminate the run.
