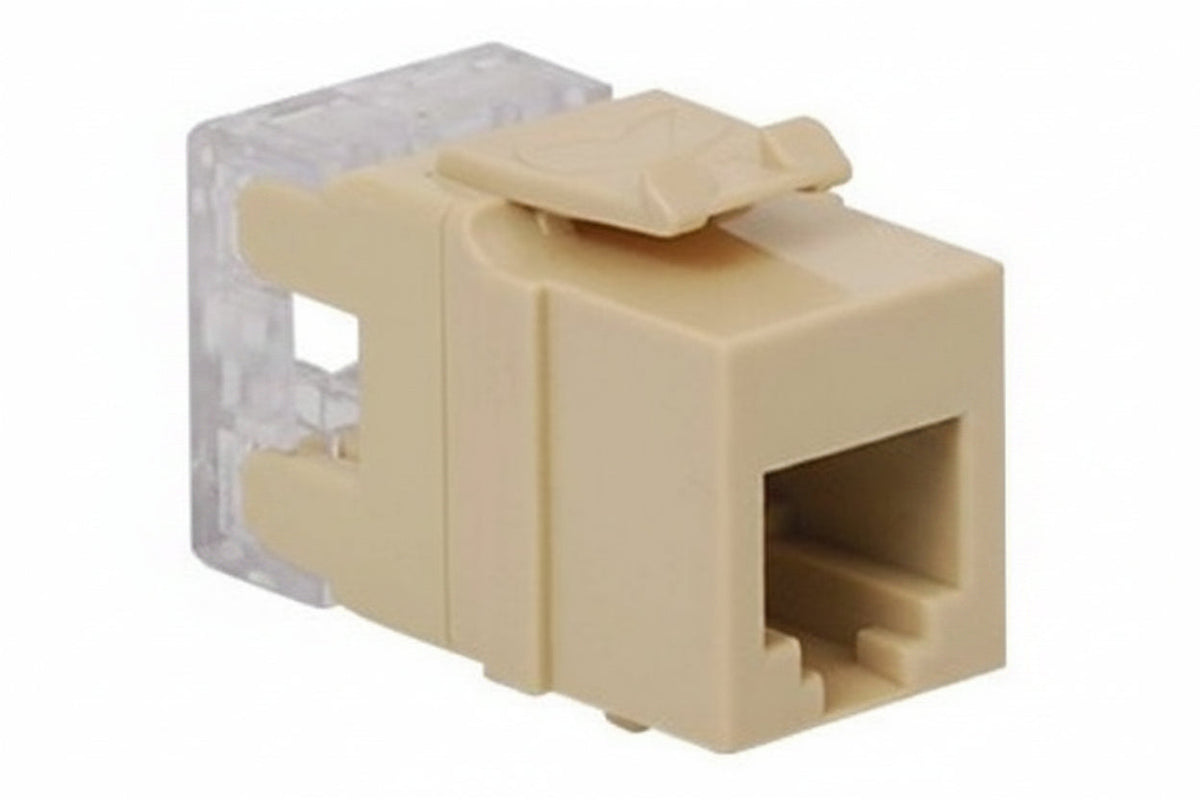

ICC IC1076F0IV High Density Voice RJ11 Keystone Jack, Ivory

The ICC IC1076F0IV is a high density RJ11 voice keystone jack in ivory, built for telephone and other voice connections at the wall plate. Its reduced rear footprint lets installers fit more ports into a smaller area, which helps in crowded work area outlets. It uses PCB technology for signal quality and 110 IDC termination to cut down termination time.

Key features

• Suited to all voice connectivity applications.
• PCB technology supports strong performance and signal quality.
• 110 IDC termination is designed to reduce installation time.
• A smaller rear footprint allows more port configurations in less space.
• An integrated USOC/UTP color wiring diagram is included on the jack.
• Fits Work Area Outlet faceplates, inserts and surface mount boxes, and works with all telephone line cords.

Specifications

Brand: ICC

Model: IC1076F0IV

Product Name: Voice, Rj-11/14/25, HD, Modular Connector, Ivory

Connector Type: RJ11

Configuration: 6-position 6-conductor (6P6C)

Cable Type: Category 3

Color: Ivory

Connector Plating: Gold

Contact Plating: Phosphor Bronze

Design: HD Design

Packaged Quantity: 1

Country of Origin: TW

Listing: UL Listed

Installation notes

Follow the color wiring diagram on the jack when terminating conductors so the pairs land in the correct positions. Because the rear footprint is smaller, check the fit in the outlet or box before terminating a full run of ports.
