Alarm & Detection · Edwards

Know the moment.

Edwards Signaling 2302 Series Curtain Door Magnetic Contact, IP6, 30V op voltage, 0.25A, 3W/VA, SPDT, track mount 2'SS armored lead, 3" gap.

Price: $86.64Model: 2302
In stock — ready to ship Free US shipping on orders $500+ · $413.36 to go
Need a project quote?
EdwardsShop all Edwards →
Edwards Signaling 2302 Series Curtain Door Magnetic Contact, IP6, 30V op voltage, 0.25A, 3W/VA, SPDT, track mount 2'SS armored lead, 3" gap.
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy

About the 2302

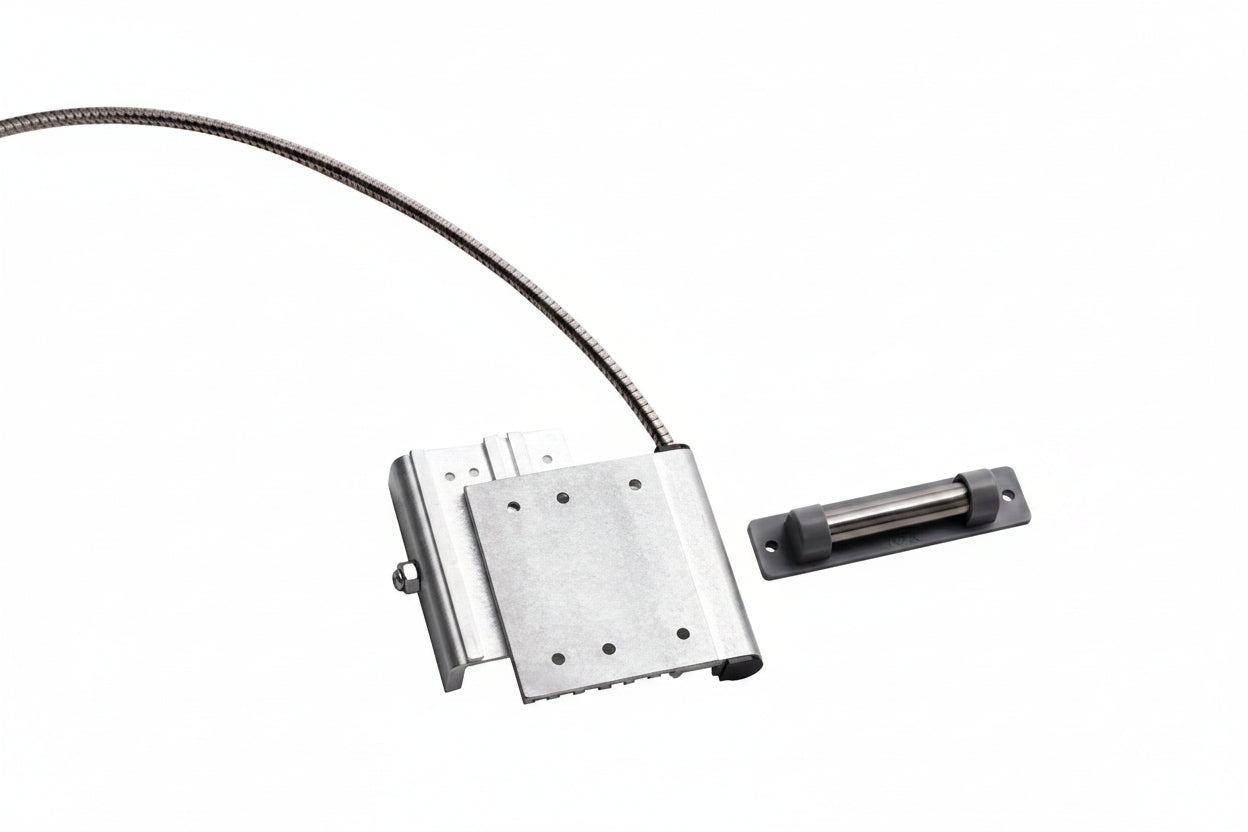

The Edwards Signaling 2302 Series Curtain Door Magnetic Contact is a magnetic door contact built for track-mounted curtain doors. It carries an SPDT contact and a 2′ stainless steel armored lead, which suits installers who need a durable connection on that style of door. It also allows a 3″ gap between the contact and magnet.

Specifications

Brand: Edwards

Model: 2302 Series

Type: Magnetic Door Contact

Ingress protection: IP6

Operating voltage: 30V

Current: 0.25A

Power: 3W/VA

Contact configuration: SPDT

Mounting: Track mount

Lead: 2′ stainless steel armored

Gap: 3″

Installation notes

Mount the contact and magnet so they stay aligned as the curtain door travels along its track, and keep the armored lead routed clear of moving parts. Test the alarm and restore states with the door fully open and fully closed before commissioning.

Specifications

BrandEdwards
Model2302
Product typeMagnetic Door Contact

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.

In the box

    Shipping & returns

    Shipping (US)

    • Free standard shipping on orders of $500 or more
    • Standard shipping $8.00 on orders under $500
    • Express shipping $15.00

    Returns

    • 30 days from delivery to request a return
    • Item must be unused, in its original packaging with all parts
    • Contact us first for a return authorization
    Full return policy →

    More from Edwards

    View all →

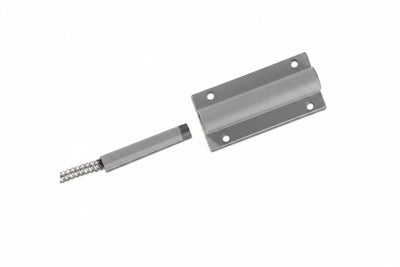

    Edwards Signaling 2100 Series Magnapull Heavy-Duty Magnetic Pull-Apart Cord, normally open, 3' stainless steel armored cable lead, gray, surface mounted Edwards Edwards Signaling 2100 Series Magnapull Heavy-Duty Magnetic Pull-Apart Cord, normally open, 3' stainless steel armored cable lead, gray, surface mounted $174.87 Edwards Signaling MPSR1-SHTW-GE Single Action Weatherproof Manual Pull Station, SPST, Hex tool Reset, Terminal Connections, Red Edwards Edwards Signaling MPSR1-SHTW-GE Single Action Weatherproof Manual Pull Station, SPST, Hex tool Reset, Terminal Connections, Red $205.60 Edwards Signaling 1076CD-N Recessed Steel Door Magnetic Contact with Wire Leads, 3/8" Gap Size, DPDT, 3/4" Diameter, White Edwards Edwards Signaling 1076CD-N Recessed Steel Door Magnetic Contact with Wire Leads, 3/8" Gap Size, DPDT, 3/4" Diameter, White $82.78 Edwards Signaling SD-TRK4 Remote Test/Reset Station, Keyed SD-TRK4 | ED-SDTRK4 Edwards Edwards Signaling SD-TRK4 Remote Test/Reset Station, Keyed SD-TRK4 | ED-SDTRK4 $130.84
