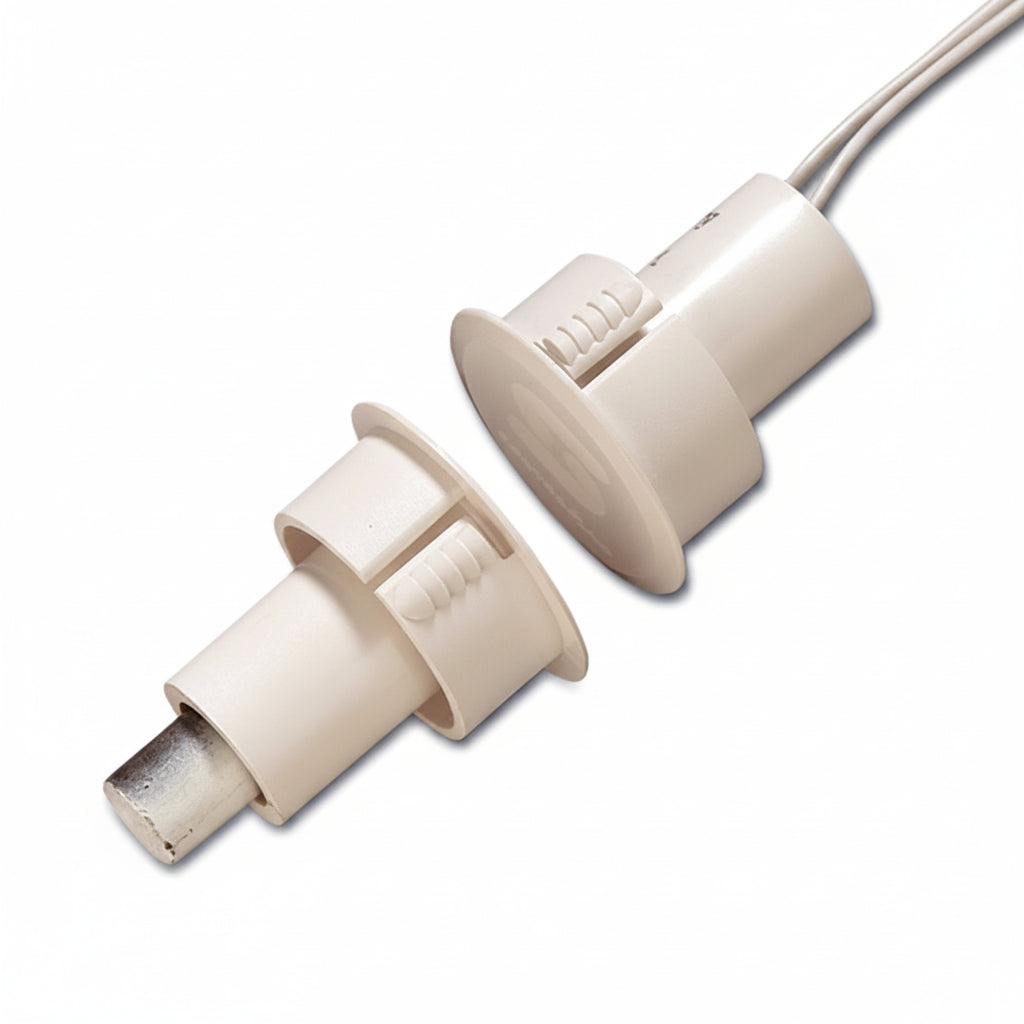

Edwards Signaling 1076CD-N Recessed Steel Door Magnetic Contact with Wire Leads, 3/8" Gap Size, DPDT, 3/4" Diameter, White

The Edwards Signaling 1076CD-N is a recessed magnetic door contact with wire leads, made for steel doors. It has a 3/8″ gap size and a DPDT output, which gives you two SPDT contacts in one switch. The 3/4″ diameter makes drilling in metal easier, and the ribbed sides and self-lock mounting help it seat in the door.

Key features

• The 3/4″ diameter makes it easier to drill into metal doors.
• Self-lock mounting holds the contact in place once it is installed.
• Special ribbed sides are there to make installation easier.
• DPDT output provides two SPDT contacts in one switch.
• The enclosure is ABS plastic.

Specifications

Brand: Edwards

Model: 1076CD-N

Product series: 1076

Product type: Magnetic Contact

Mounting: Recessed, self-lock

Gap size: 3/8″

Contact configuration: DPDT (double pole-double throw)

Diameter: 3/4″

Length: 1.0 in

Width: 0.80″

Height: 1.10″

Color: White

Material: ABS

Connection: Wire leads

Country of origin: CN

Installation notes

Drill the mounting hole to match the contact's diameter so the self-lock mounting seats firmly in the steel door. Keep the magnet and contact aligned within the rated gap, and test the circuit with the door open and closed before you finish the wiring.
