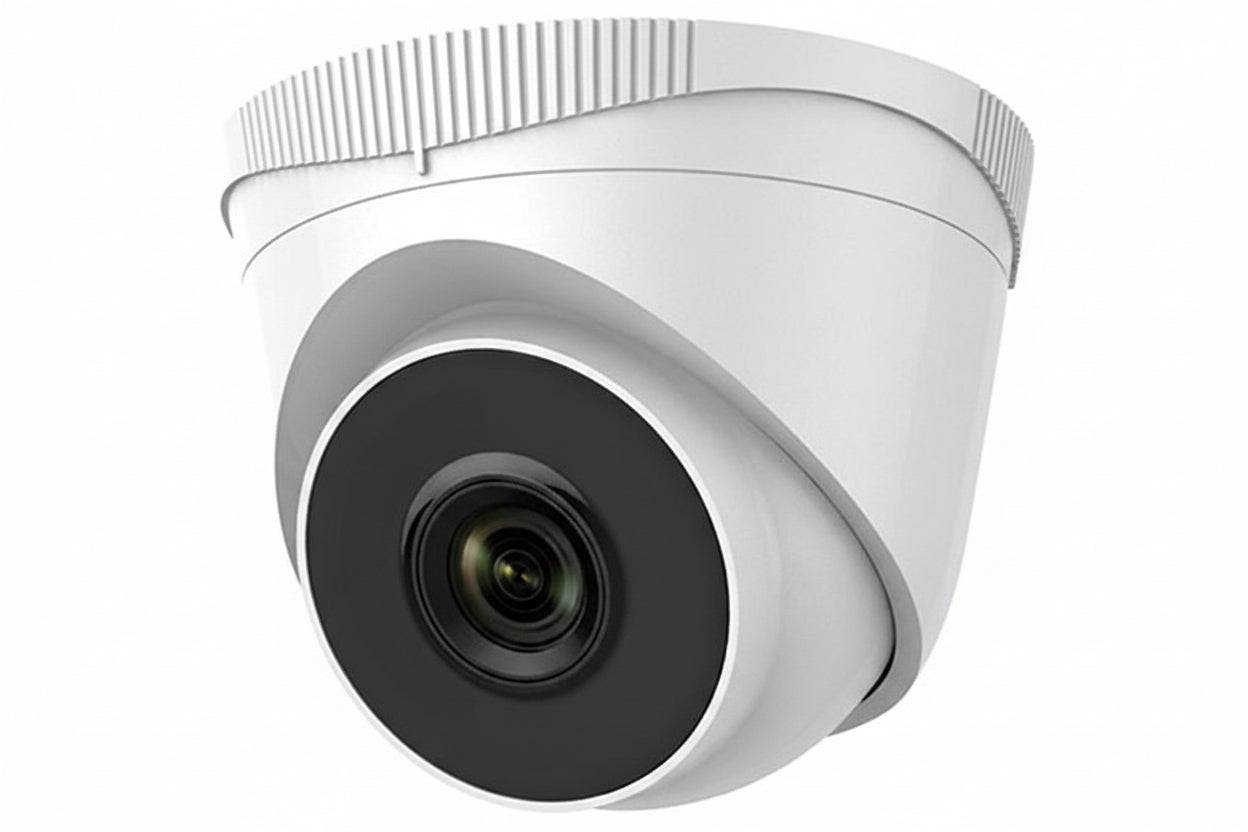

Hikvision ECI-T22F2 2MP Outdoor EXIR Turret IP Camera, 2.8mm Fixed Lens, White

The Hikvision ECI-T22F2 is a 2MP outdoor IP turret camera with a fixed 2.8mm lens and infrared night vision. It suits installers and businesses that need a straightforward wired camera for ceiling-mounted outdoor coverage. It records Full HD video and is rated IP67 for outdoor use.

Key features

• Records at up to 1920 x 1080 for real-time Full HD surveillance.
• The fixed 2.8mm lens has an f/2 maximum aperture to help it gather light.
• Infrared night vision covers objects up to 100 ft without any external lighting.
• A CMOS sensor keeps power consumption low while producing HD video.
• Powered by a DC source, with a wired network connection.

Specifications

Brand: Hikvision

Model: ECI-T22F2

Product Series: Value Express

Product Type: Network Camera

Form Factor: Turret

Color: White

Indoor/Outdoor: Outdoor

Mount Type: Ceiling Mount

Maximum Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Aspect Ratio: 16:9

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 2.8mm

Maximum Aperture: f/2

Field of View: Diagonal

Night Vision Type: Infrared (IR)

Night Vision Distance: 100 ft

Shutter Speed: 1/3 second (longest), 1/100000 second (shortest)

Video Format: H.264

Recording Format: Full HD

Features: 3D Digital Noise Reduction, Wide Dynamic Range

Remote Management: Yes

Connectivity: Wired, Network (RJ-45)

Input Voltage: 12V DC

Ingress Protection Rating: IP67

Durability: Waterproof

Operating Temperature: -22°F to 122°F

Operating Humidity: 95%

Diameter: 4.30″

Height: 3.70″

Weight: 12.80 oz

TAA Compliant: No

NDAA Compliant: No

Installation notes

This camera needs a 12V DC supply and a wired network run to its RJ-45 port, so plan the power and cable routes before mounting. Aim it at the area you want covered, keeping the infrared range in mind, and check the image at night during commissioning.
