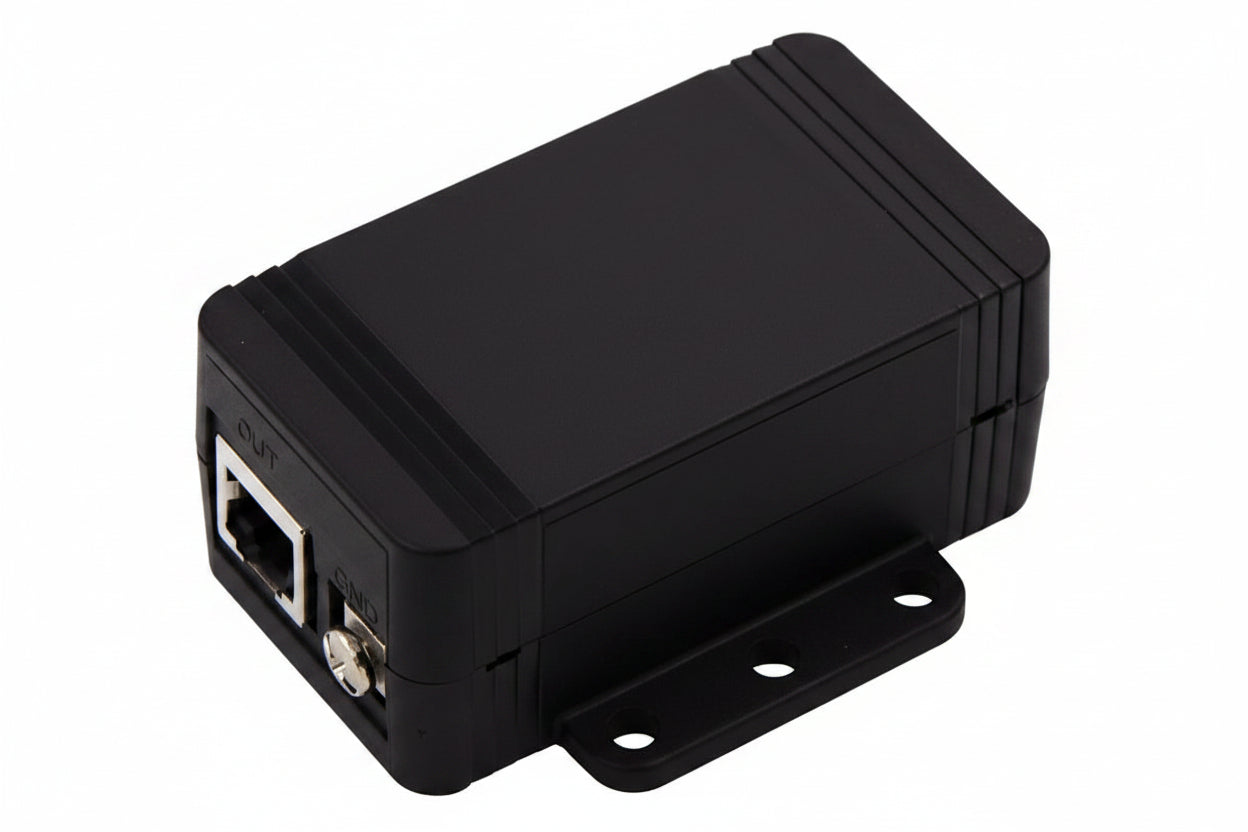

DITEK DTK-MRJPOES Shielded RJ45 Female In/Out PoE Surge Protector

The DITEK DTK-MRJPOES is a shielded RJ45 surge protector that sits in-line on a Power over Ethernet run to protect connected network gear. It suits installers and businesses protecting PoE cameras, access points and similar devices. It uses both SAD and GDT protection, passes Gigabit data without signal degradation, and is ready for PoE Plus and HiPoE loads.

Key features

• Combines SAD and GDT technologies for surge protection.
• Has a shielded RJ45 connection with an external grounding screw.
• Carries Gigabit Ethernet without signal degradation.
• Works with CAT5e, CAT6 and CAT6A cabling.
• Complies with IEEE Std. 802.3af and 802.3at for PoE.
• Is PoE Plus and HiPoE ready for high-wattage applications.

Specifications

Model: DTK-MRJPOES

Brand: DITEK

Product Series: MRJ

Product Type: Surge Suppressor/Protector

Dataline Protection: Network

Receptacles: RJ-45

Input Voltage: 48V AC

Power Handling: 144W

Width: 1.70″

Height: 1.20″

Weight: 4.00 oz

Environmental Certification: RoHS

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: US

Installation notes

Connect the external grounding screw to a good earth ground, since the protector relies on that path to divert surge energy. Place the unit in-line on the PoE run, with the cable from the switch or injector on one RJ45 and the cable to the powered device on the other.
