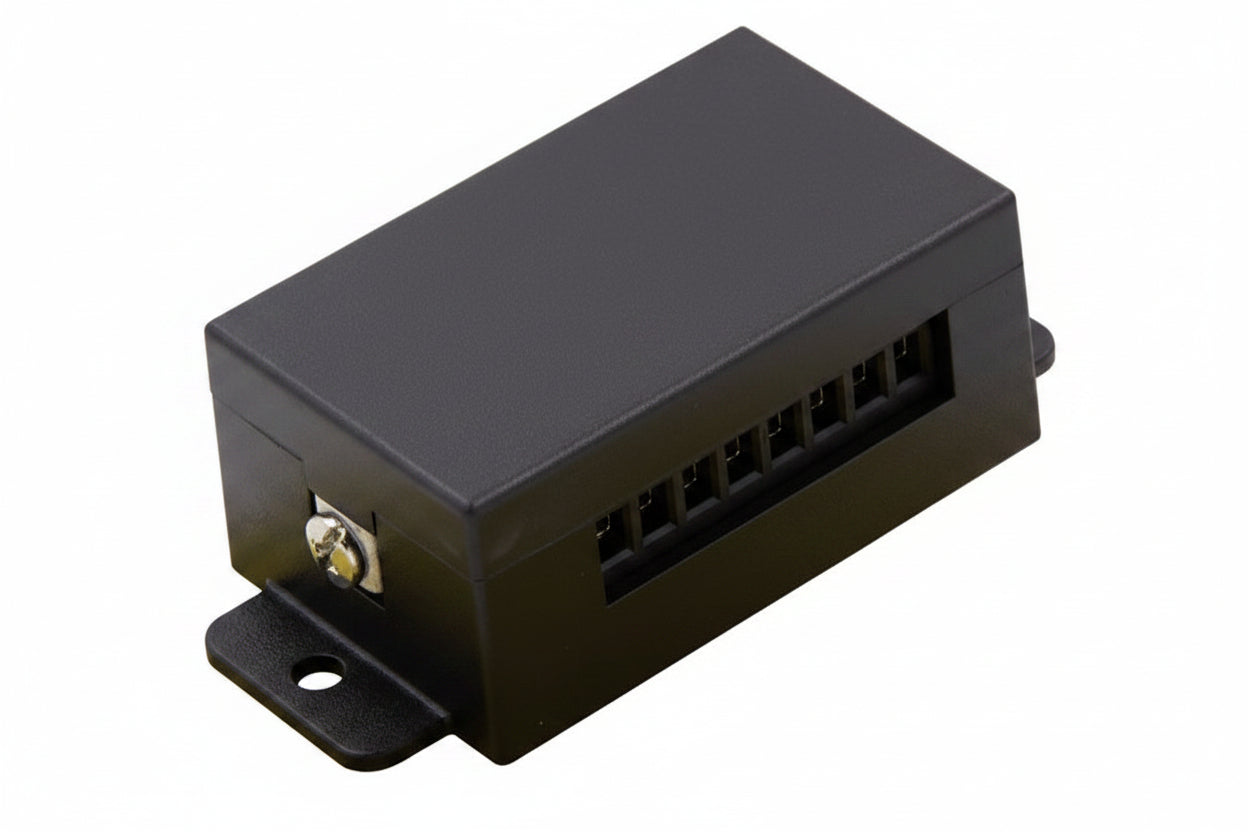

DITEK DTK-4LVLPX Data and Signaling Circuit Surge Protector, 12V Hardwired Signaling Circuits (Replaces DTK-3LVLPX)

The DITEK DTK-4LVLPX is a hardwired surge protector for low voltage data and signaling loop circuits, and it replaces the DTK-3LVLPX. It suits installers protecting alarm panel wiring, and it stands out for adding no resistance to the circuits it protects. It belongs to DITEK's LVLP series and is built in the US.

Key features

• Protects low voltage data and signaling loop circuits.
• Works on both AC and DC circuits.
• Connects in series but functions in parallel, so it adds no resistance to the circuit.
• Compact hardwired package from DITEK's Low Voltage Line Protector series.
• Listed as compatible with alarm panels.
• TAA and NDAA compliant, and RoHS certified.

Specifications

Brand: DITEK

Model: DTK-4LVLPX

Product series: LVLP

Product type: Surge Suppressor/Protector

Compatibility: Alarm Panels

Dataline protection: Datacommunication

Input voltage: 14V AC

Output voltage: 14V DC

Width: 3.00″

Height: 1.60″

Depth: 1.60″

Environmental certification: RoHS

TAA compliant: Yes

NDAA compliant: Yes

Sector: Access Control

Country of origin: US

Installation notes

Wire the protector in series with the circuit it protects, placing it close to the equipment it guards, such as the alarm panel. Confirm the circuit's voltage suits the unit before connecting, and test the circuit after installation to verify normal operation.
