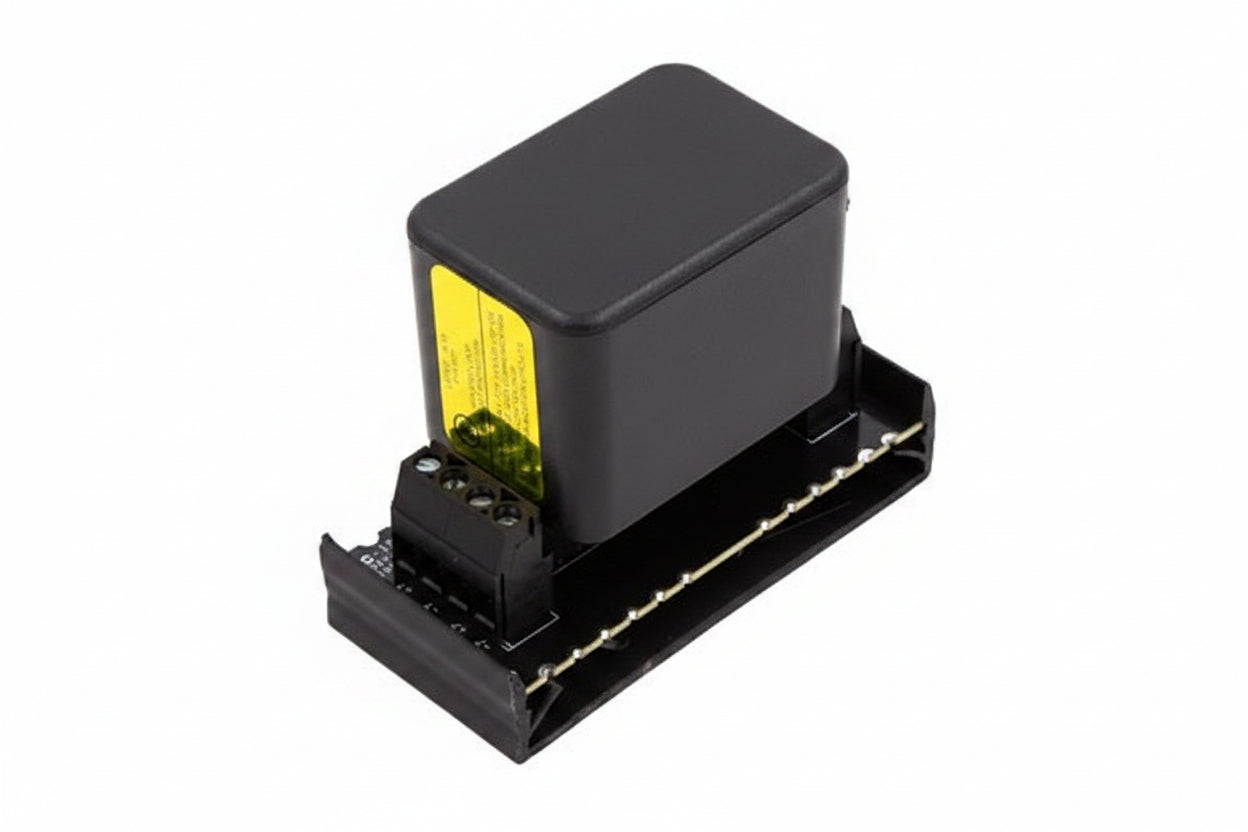

DITEK DTK-2MHLP12BWB Data and Signaling Circuit Surge Protector with Snap-Track Base

The DITEK DTK-2MHLP12BWB is a 12V data and signaling circuit surge protector module that protects two pairs per module. It is built for alarm panel and low voltage installers who need a compact, replaceable protection point on data lines. Its hybrid SAD and GDT design and field-replaceable module are what set it apart.

Key features

• Each module protects two 12V pairs.
• A hybrid design combines SAD and GDT technologies in multiple stages.
• The module shorts to ground when it is compromised.
• Field-replaceable modules and a single point ground keep installation quick and simple.
• Multiple bases can be hardwired together to protect up to 10 pairs on a common ground.
• It suits both AC and DC low voltage circuits, and six voltage configurations are available.

Specifications

Brand: DITEK

Model: DTK-2MHLP12BWB

Product Series: 2MHLP

Product Type: Surge Suppressor/Protector

Compatibility: Alarm Panels

Dataline Protection: Datacommunication

Output Voltage: 12V DC

Receptacles: Terminal Block

Height: 1.80″

Width: 4.50″

Depth: 3.00″

Weight: 1.27 oz

Environmental Certification: RoHS

TAA Compliant: Yes

NDAA Compliant: Yes

Installation notes

Mount the protector close to the equipment it protects and connect the ground to a good, low-resistance earth ground, since the module diverts surges through that path. When ganging several bases together, keep them on one common ground and confirm the module's voltage configuration matches the circuit before powering up.
