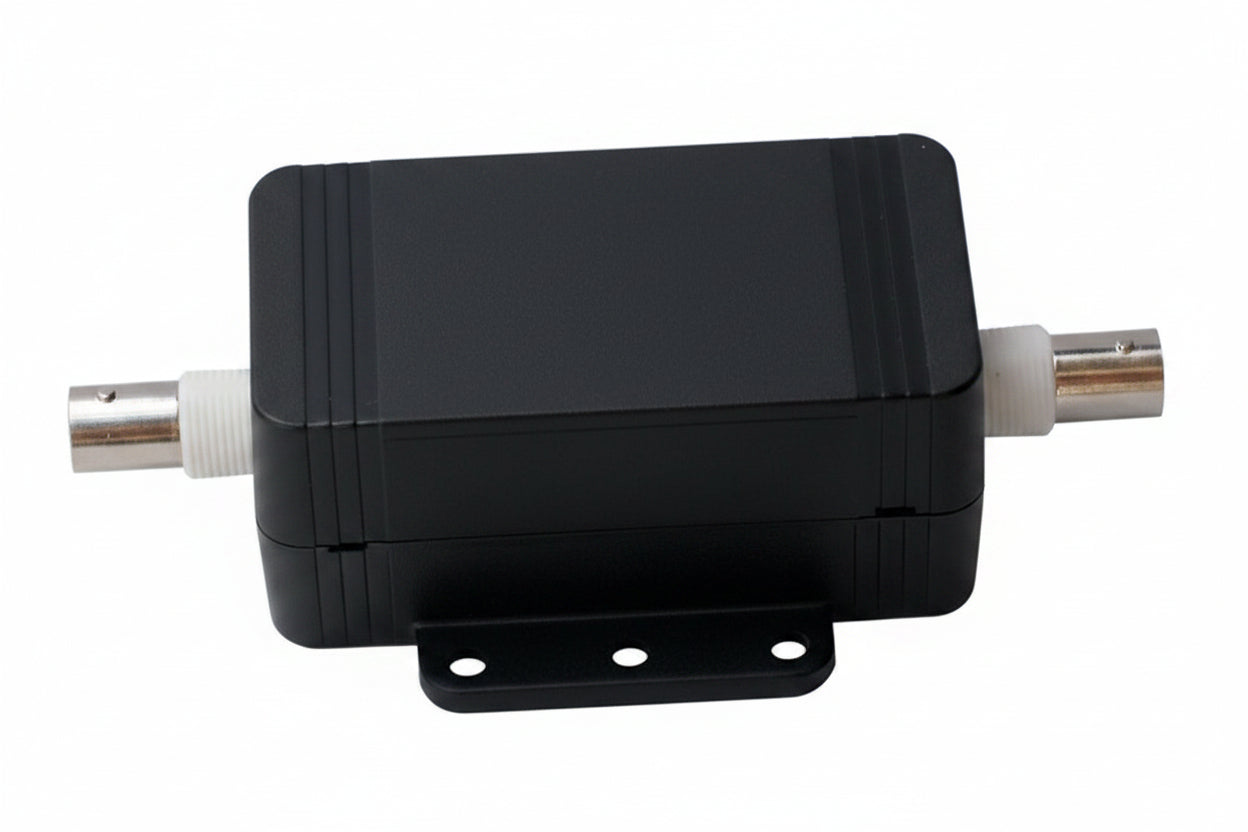

DITEK DTK-GLI Ground Loop isolator for Two-way communication of control/video

The DITEK DTK-GLI is a passive ground loop isolator that reduces video distortion caused by ground loop interference. It suits installers and businesses who see signal problems on video runs where power loads conflict. It uses a multi-stage, hybrid circuit design with BNC female connections on both ends, and it passes control and video signals in both directions.

Key features

• Helps prevent video-signal distortion caused by conflicting power loads.
• Has BNC female connectors on the input and output.
• Uses a multi-stage, hybrid design.
• Connects in series with the video run.
• Works as a passive device that allows two-way communication of control and video.

Specifications

Brand: DITEK

Model: DTK-GLI

Product Type: Ground Loop Isolator

Connectors: BNC female In/Out

Material: ABS

Height: 1.30″

Width: 3.00″

Depth: 2.40″

Environmental Certification: RoHS

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: US

Installation notes

Install the isolator in series with the affected video line, connecting the source side to the input and the downstream equipment to the output. Because it is passive, it needs no power connection, so place it where the BNC cables can reach without strain and where you can get to it later for troubleshooting.
