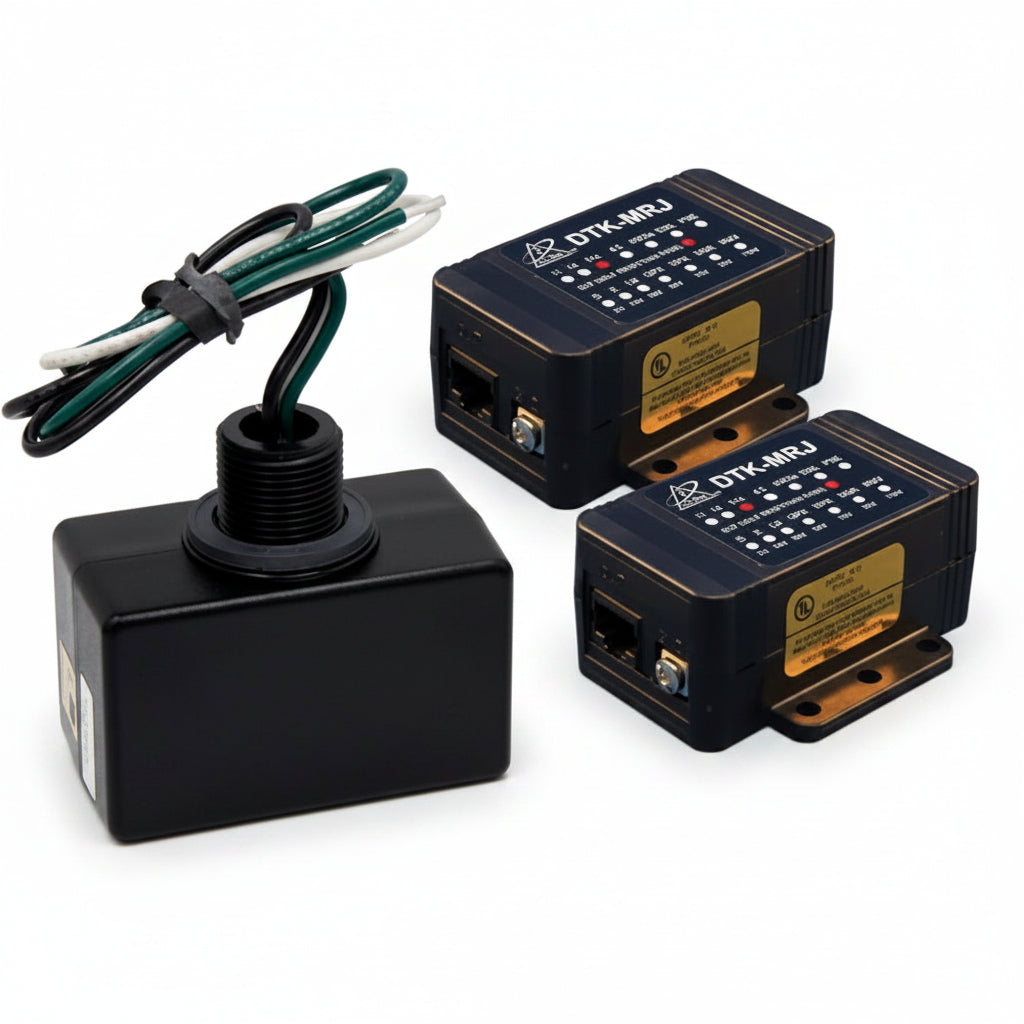

DITEK DTK-FPK1 Fire Alarm System Surge Protection Kit

The DITEK DTK-FPK1 is a fire alarm system surge protection kit that guards both the 120V AC power feed and the dialer circuit on a fire detection system. It is built for commercial alarm professionals who specialize in fire detection and want AC and dialer protection in one package. The AC protector carries a 19,500A peak surge current rating, and a diagnostic LED shows ground presence, system power and surge protection device function.

Key features

• Protects 120V AC power with a 19,500A peak surge current rating.
• Includes a diagnostic LED that shows ground presence, system power and SPD function.
• Protects the dialer circuit against overvoltage and over-current events.
• Combines AC power and dialer protection in a single kit.
• Made in the US and listed as TAA and NDAA compliant.

Specifications

Brand: DITEK

Model: DTK-FPK1

Product Type: Fire Protection Kit

Product Series: FPK

Compatibility: Fire Detection Systems

Package Contents: DTK-FPK1 Fire Protection Kit; 2 x MRJ31XSCPWP

Environmental Certification: RoHS

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: US

Installation notes

Install the AC protector on the 120V feed to the fire panel and the dialer protection on the panel's dialer line, keeping wiring runs short and a solid ground connection in place. After power-up, check the diagnostic LED to confirm ground, system power and SPD function before returning the system to service.
