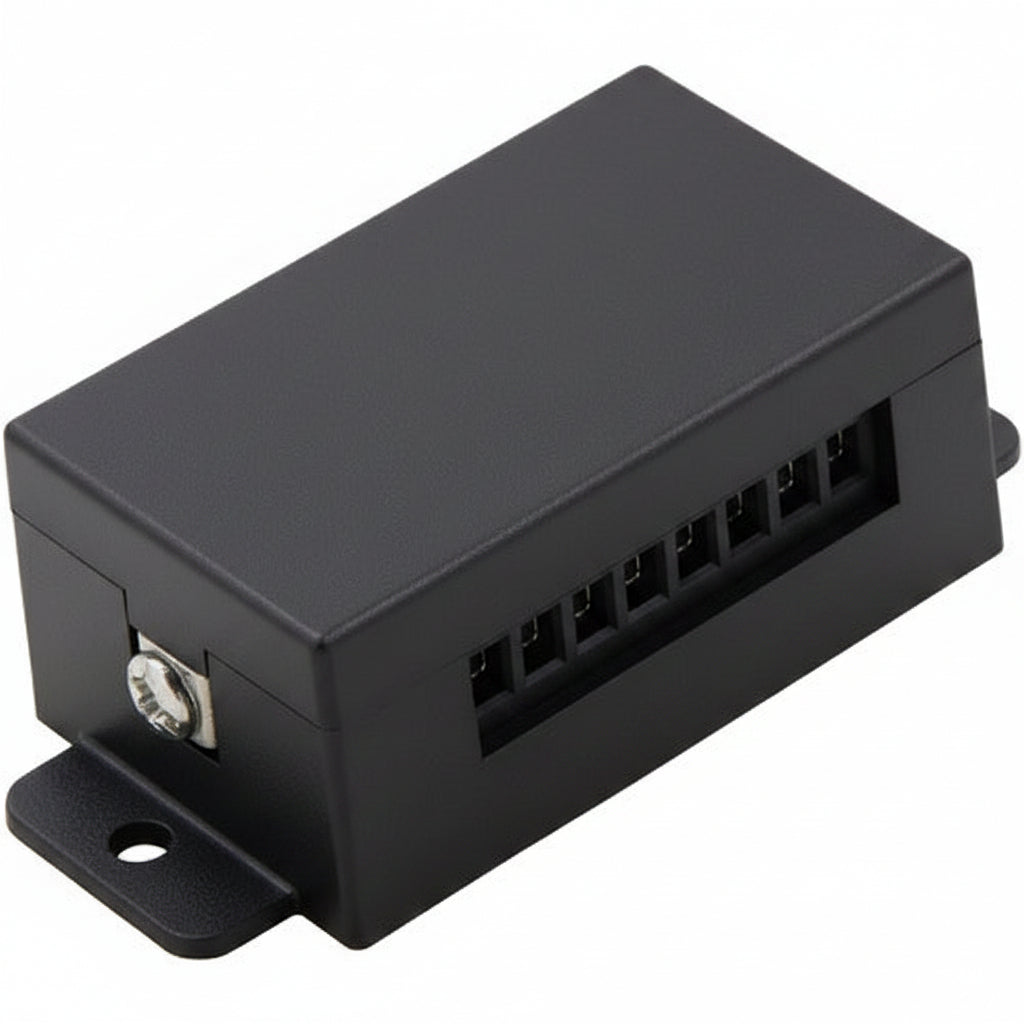

DITEK DTK-4LVXR Telephone Entry System Surge Protector, Protects 12/24V Power, Telco and Release Circuits

The DITEK DTK-4LVXR is a telephone entry system surge protector that covers the power, telephone line and release circuits of a gate or door entry system in one unit. It suits installers working on residential gate entry systems who want a single protection point instead of several separate devices. DITEK designed this model and its 4LVTEP sibling with input from access control installers, and the DTK-4LVXR resets itself automatically after a surge.

Key features

• One unit protects all of the telephone entry system's circuits.
• A single grounding point keeps protection consistent across the system.
• It resets automatically, so it keeps protecting through repeated surges.
• It protects the power supply, telephone line, and data/release circuits.
• It is built for residential gate entry systems in the access control sector.

Specifications

Brand: DITEK

Model: DTK-4LVXR

Product series: DTK

Product type: Surge Suppressor/Protector

Sector: Access Control

Compatibility: Residential Gate Entry Systems

Dataline protection: Datacommunication

Input voltage: 24V AC

Output voltage: 12V DC

Width: 3.00″

Height: 1.60″

Depth: 1.60″

Environmental certification: RoHS

TAA compliant: Yes

NDAA compliant: Yes

Country of origin: US

Package contents: DTK-4LVXR Telephone Entry System Surge Protection, double-sided tape

Installation notes

Mount the unit close to the entry system equipment it protects, and use the included double-sided tape only on a clean, dry surface. Connect the single grounding point to a good ground, since the protection depends on it, and check that the power, telephone line and release wiring land on the correct terminals before powering up.
