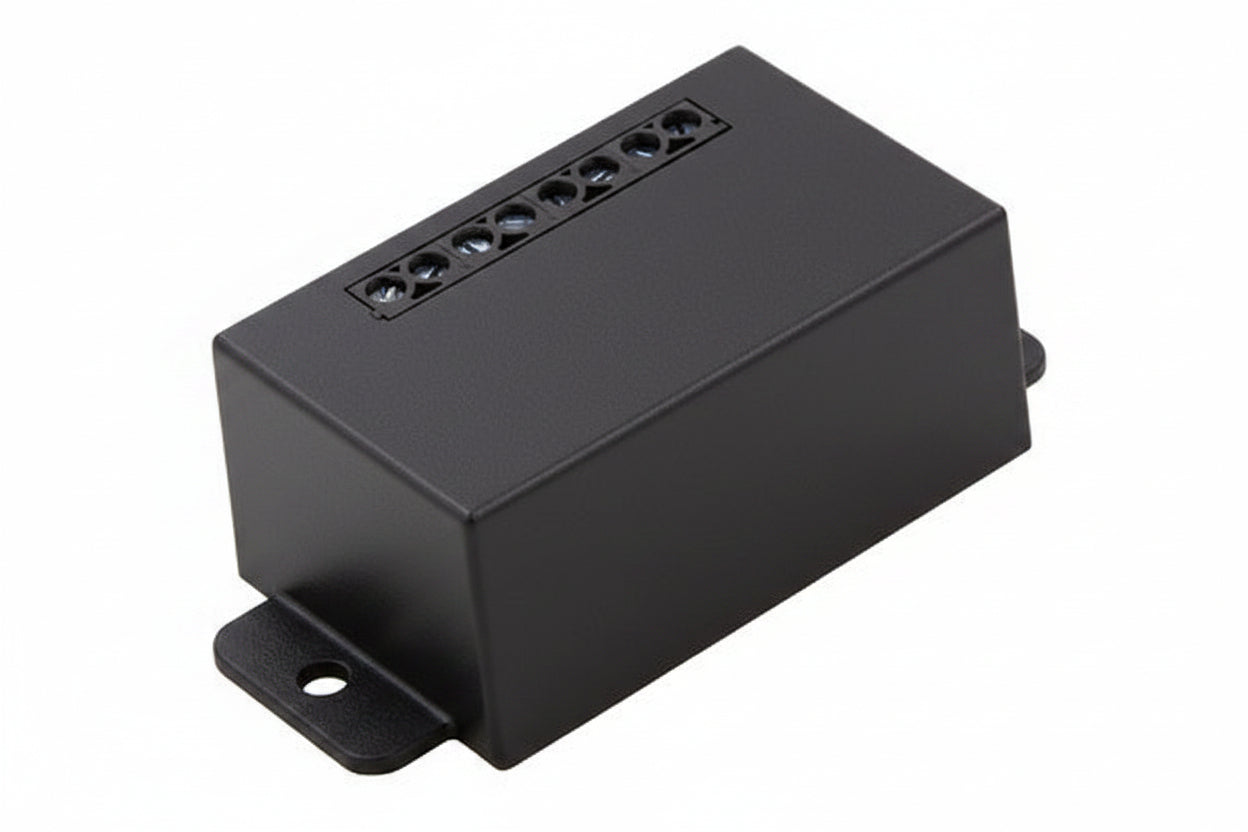

DITEK DTK-4LVTEP Telephone Entry System Surge Protector, Protects 12V or 24V Power, Telco and Data Circuits

The DITEK DTK-4LVTEP is a telephone entry system surge protector that guards the power, telco and data circuits of a commercial gate entry system. It suits access control installers who want one unit covering every circuit of an entry panel instead of several separate protectors. A single grounding point keeps protection consistent, and the unit resets automatically after a surge.

Key features

• One unit protects all of the telephone entry system's circuits.
• A single grounding point gives consistent protection across those circuits.
• It resets automatically, so it keeps protecting through repeated surges.
• It protects the power supply, telephone line and data/release circuits.
• DITEK designed it with input from access control system installers.

Specifications

Brand: DITEK

Model: DTK-4LVTEP

Product Series: LVLP

Product Type: Surge Suppressor/Protector

Sector: Access Control

Compatibility: Commercial Gate Entry System

Dataline Protection: Datacommunication

Receptacles: Terminal Block

Input Voltage: 24V AC

Output Voltage: 12V DC

Width: 3.00″

Height: 1.60″

Depth: 1.60″

Weight: 4.00 oz

Environmental Certification: RoHS

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: US

Installation notes

Mount the unit close to the entry panel and connect its single ground point to a good earth ground with a short, direct run, since the protection depends on that connection. Land the power, telephone line and data/release wires on the terminal blocks as marked, then test the entry system before leaving the site.
