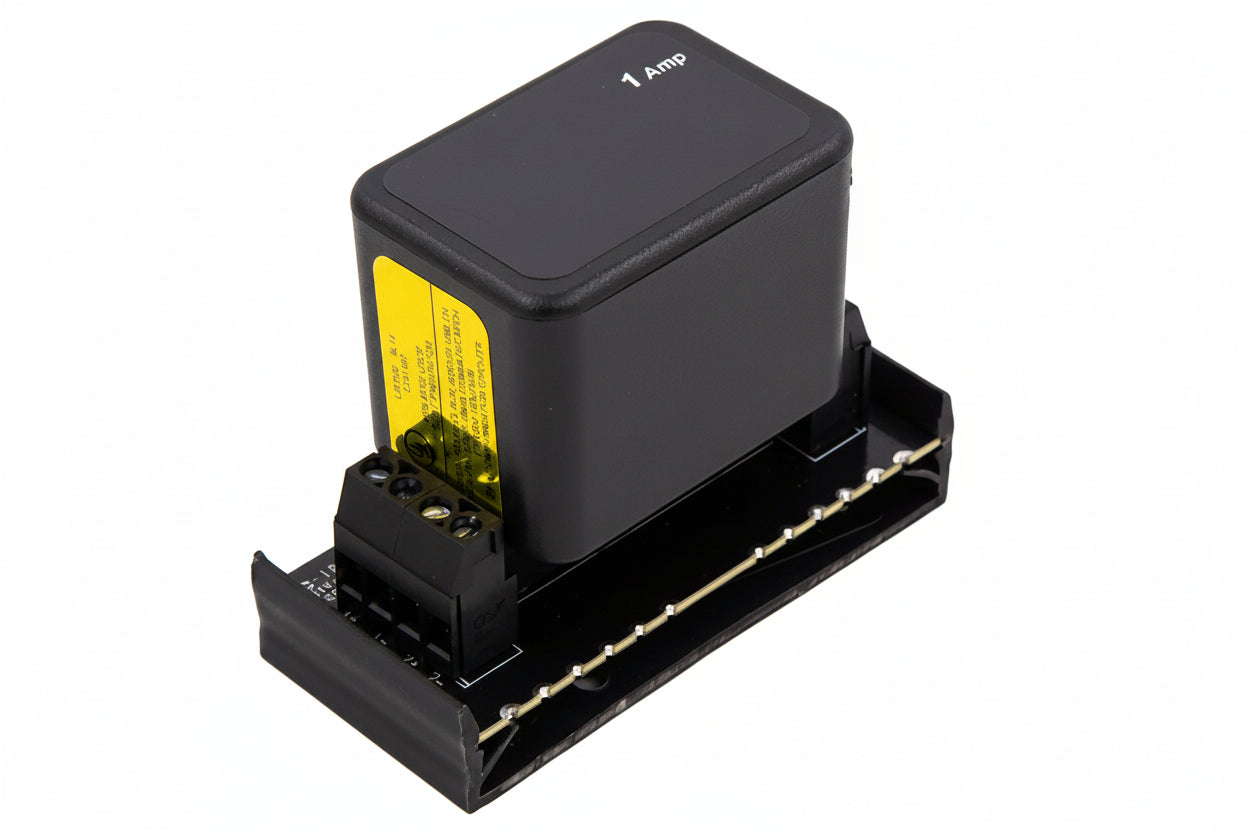

DITEK DTK-2MHLP36FWB Data and Signaling Circuit Modular Surge Protector with Snap-Track Base

The DITEK DTK-2MHLP36FWB is a modular surge protector for alarm control panel loop circuits, covering two 36V pairs per module. It comes with a hardwired Snap-Track mounting base, which suits installers who want a quick, field-serviceable protection point on data and signaling wiring. Its load removal feature and multi-stage hybrid design with SAD technology are what set it apart.

Key features

• Protects two 36V pairs on each module.
• Includes an exclusive load removal feature.
• Uses a multi-stage hybrid design with SAD technology for surge protection.
• Has a field-replaceable, modular edge card connection with a single point ground to speed up installation.
• Is part of a range offering six voltage levels for different voice and data applications.
• Uses a hardwired multi-base mounting system.

Specifications

Brand: DITEK

Model: DTK-2MHLP36FWB

Product series: DTK-2MHLPF

Product type: Alarm Control Panel Surge Protector Module

Input voltage: 36V DC

Connectivity technology: Wired

Material: ABS Plastic

Features: Compact design

Height: 2.60″

Width: 1.50″

Depth: 3.30″

Weight: 2.80 oz

Environmental certification: RoHS

Environmentally friendly: Yes

TAA compliant: Yes

NDAA compliant: Yes

Country of origin: US

Installation notes

Mount the base close to the alarm control panel and keep the wiring between the protector and the panel as short as practical. Connect the single point ground carefully, and check that the loop circuits work normally after the module is seated.
