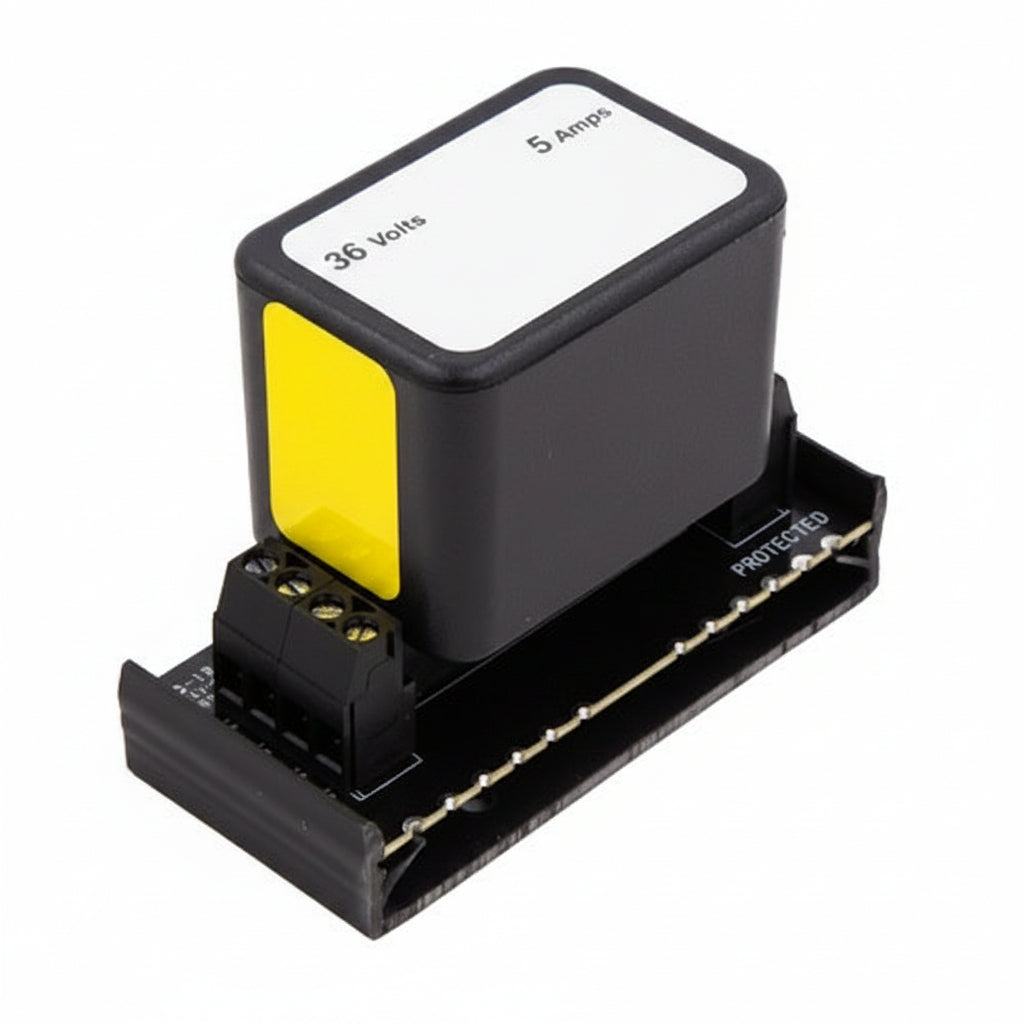

DITEK DTK-2MHLP36BWB Data and Signaling Circuit Modular Surge Protector with Snap-Track Base for 36V Circuits

The DITEK DTK-2MHLP36BWB is a modular surge protector for 36V data and signaling circuits, built to protect two 36V pairs per module. It suits installers working on alarm panel and other low voltage AC or DC circuits who want a field-replaceable protector with a single ground point. It uses a hybrid of SAD and GDT technologies and ships on a Snap-Track base.

Key features

• Each module protects two 36V pairs.
• A hybrid design combines SAD and GDT technologies in multiple stages.
• The module shorts to ground when it is compromised.
• The field-replaceable modular design uses a single point ground for fast, easy installation.
• A hardwired multi-base mounting system can protect up to 10 pairs with a common ground.
• It works on both AC and DC low voltage circuits, and six voltage configurations are available across the series.

Specifications

Model: DTK-2MHLP36BWB

Brand: DITEK

Product Series: 2MHLP

Product Type: Surge Suppressor/Protector

Compatibility: Alarm Panels

Dataline Protection: Datacommunication

Input Voltage: 36V AC

Output Voltage: 36V DC

Material: ABS

Height: 1.80″

Width: 4.50″

Depth: 3.00″

Weight: 1.27 oz

Environmental Certification: RoHS

Environmentally Friendly: Yes

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: US

Installation notes

Mount the base close to the equipment being protected and keep the wiring between the protector and the device short. Make sure the common ground connection is solid, and confirm the module voltage matches the circuit before you connect it.
