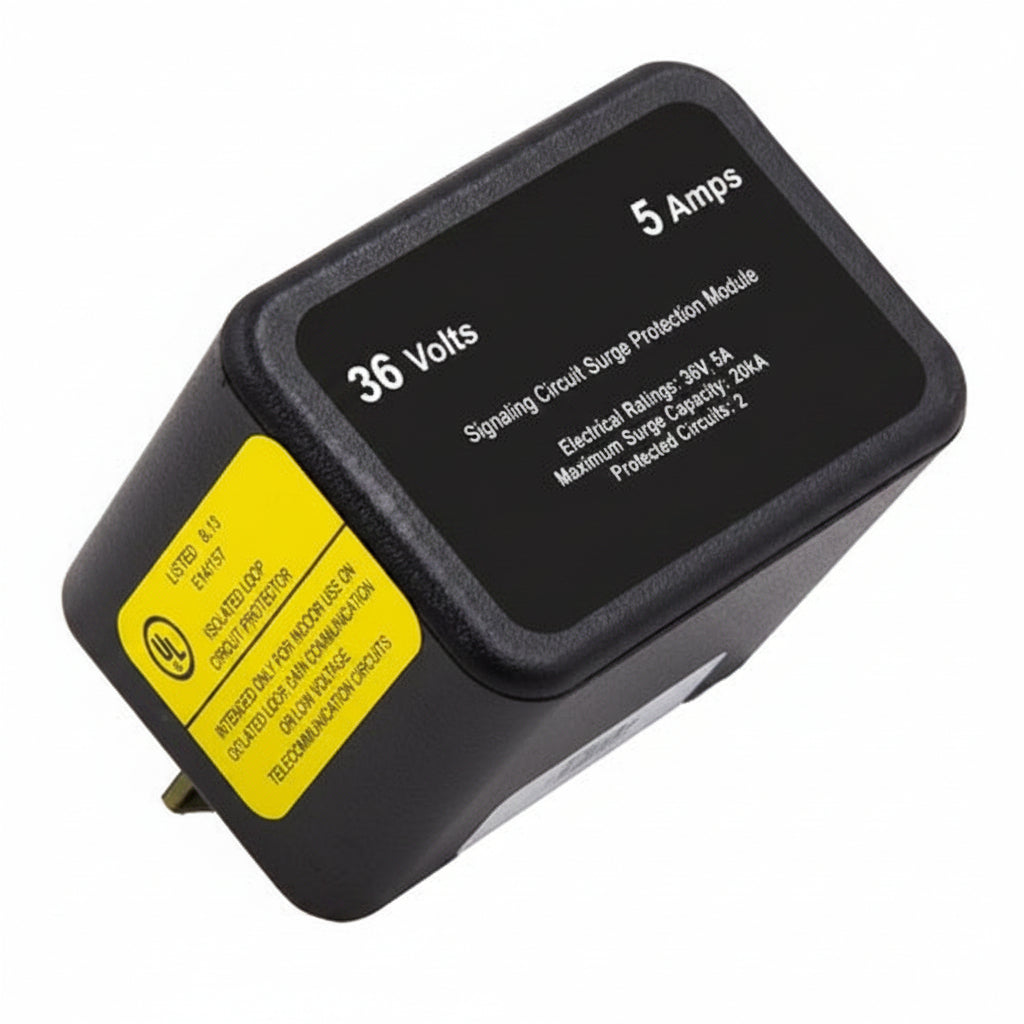

DITEK DTK-2MHLP36B Data and Signaling Circuit Surge Protection Module

The DITEK DTK-2MHLP36B is a surge protection module for 36V data and signaling circuits, covering two pairs per module. It suits installers working on burglar alarm panels and other low voltage AC or DC circuits who want a compact protector with a replaceable module. Multi-stage SAD technology and a single point ground keep installation straightforward.

Key features

• Each module protects two 36V pairs.
• Multi-stage SAD technology provides the protection.
• The field-replaceable edge card module connects to a single point ground, which speeds up installation.
• Six voltage configurations are available, so you can match the protector to different circuit types.
• The hardwired multi-base mounting system covers up to 10 pairs on a common ground.
• It can be used on both AC and DC low voltage circuits.

Specifications

Brand: DITEK

Model: DTK-2MHLP36B

Product Series: 2MHLP

Product Type: Surge Suppressor/Protector

Compatibility: Burglar Alarm Panels

Dataline Protection: Datacommunication

Input Voltage: 36V AC

Output Voltage: 36V DC

Width: 2.10″

Height: 1.60″

Depth: 1.00″

Weight: 0.63 oz

Environmental Certification: RoHS

TAA Compliant: Yes

NDAA Compliant: Yes

Installation notes

Confirm the circuit voltage matches this 36V module before mounting, since other voltage configurations are sold separately. Connect the common ground with a short, direct run to a good earth ground, and place the protector close to the equipment it protects.
