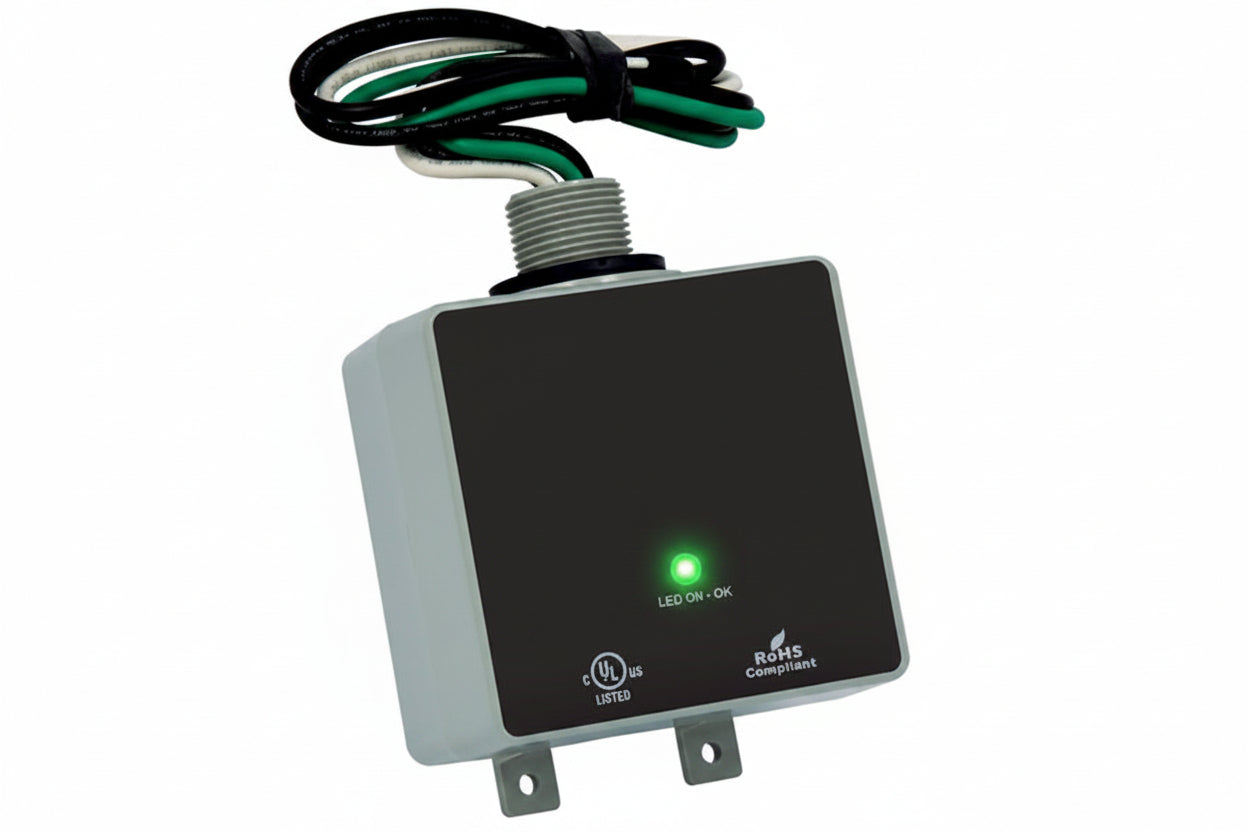

DITEK D50-120/2083Y Industrial Surge Protective Device, 50kA/Phase for Electrical Panels Rated at 200A or Less

The DITEK D50-120/2083Y is an industrial surge protective device that guards AC power systems and electrical panels rated at 200A or less. It carries a 50kA per phase rating and suits installers and facility managers who need dependable protection in demanding environments. Its compact housing mounts close to the panel, and it adds a diagnostic LED, an audible alarm and dry contacts for remote status monitoring.

Key features

• The 50,000 amp surge current rating supports a long service life.
• Individually fused components are used in the D50 Series for performance and protection.
• The compact size allows mounting close to the protected panel, which keeps wire length short and helps performance.
• A diagnostic LED shows system power and whether the SPD is functioning.
• An audible alarm comes with a disable switch.
• Dry contacts allow remote monitoring of surge protection status.

Specifications

Brand: DITEK

Model: D50-120/2083Y

Product Series: D50

Product Type: Surge Suppressor/Protector

Input Voltage: 120V AC

Output Voltage: 120V AC

Height: 3.50″

Width: 3.50″

Depth: 2.40″

Environmental Certification: RoHS

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: US

Installation notes

Mount the unit as close to the protected panel as practical and keep the connecting leads as short and straight as you can, since lead length affects surge performance. Wire the dry contacts to your monitoring system and check the LED and alarm after power-up.
